Live-action film

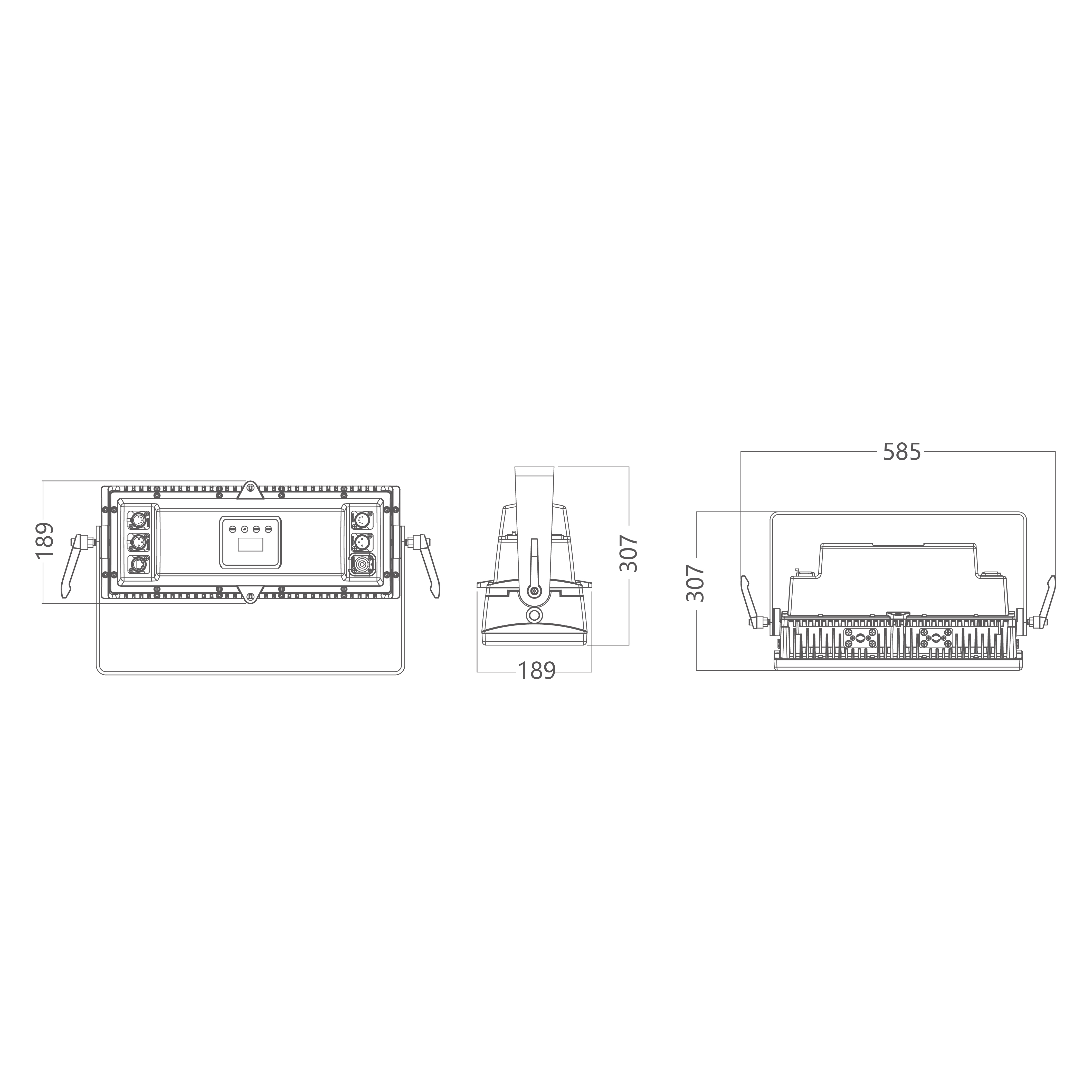

Dimension drawing

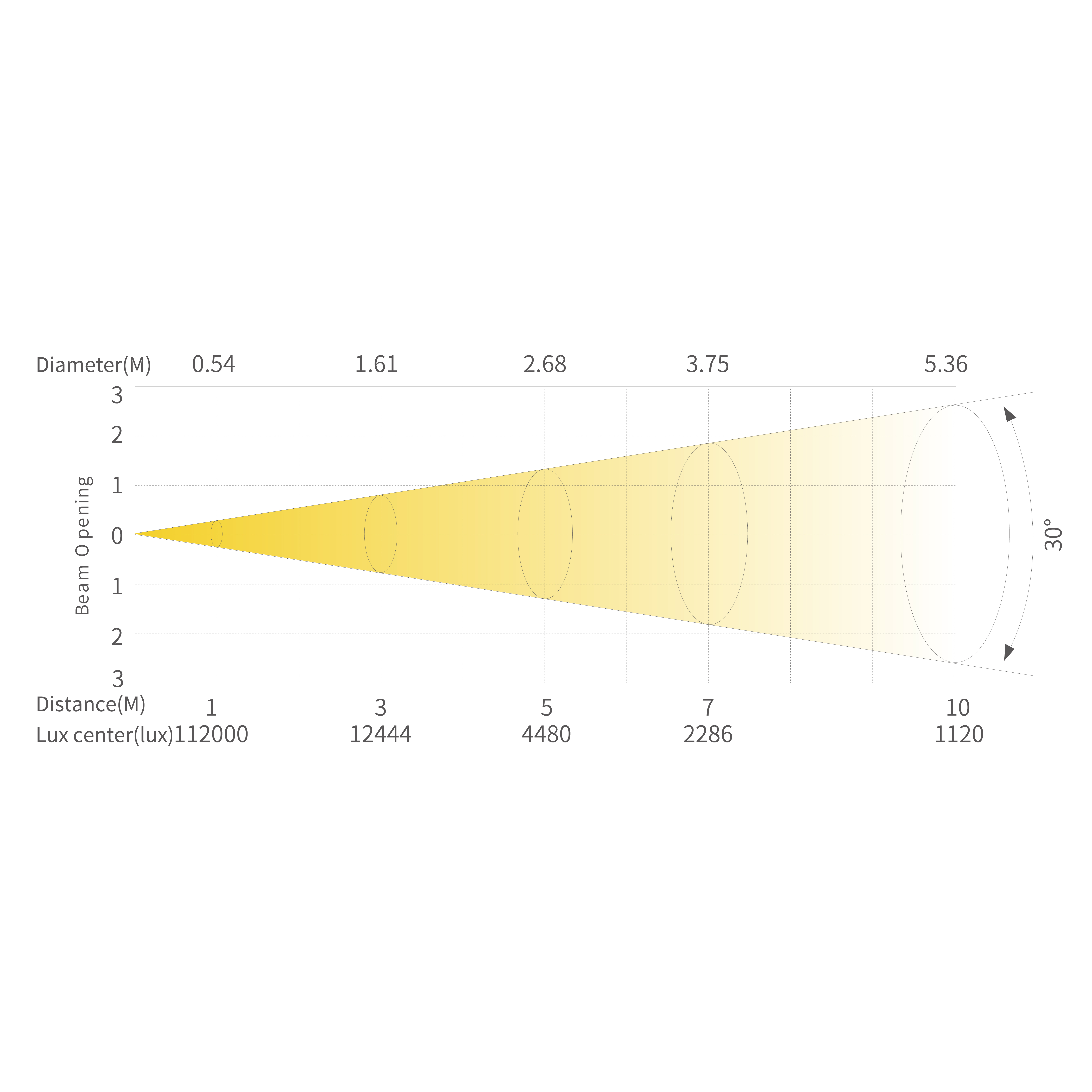

Illuminance diagram
Strobe
RAYTHEON is a high power professional LED strobe, the max output up to 1100W, creates astonishing strobe effect. The industrial IP65 design assures the installation muchconvenient. It has 12 sections control, and compatible with Artnet / RDM. The RAYTHEON is the dream strobe gear for the professiona lrental / concert / show / events!
/upload/images/product/20250917/17580824114871427.png
Light source
144X10W(RGBL)四合一
/upload/images/product/20250917/17580824242068850.png
Luminous flux
47477lm
/upload/images/product/20250917/17580824309795137.png
Angle
30°
/upload/images/product/20250917/17580824585673288.png
Weight
13.5KG
/upload/images/product/20250917/17580824626420407.png
Max. Power
1100W
Optical system
Light source

144X10W(RGBL)

Angle

30°

Luminous flux

47477lm

Appearance
Size

585x189x307.5mm

Casing

Die-cast Aluminum

Weight13.5kg
Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power1100W
Power Connectionpower in
Signal socket

DMX in and out RJ45 in


Control System
DIMMER

0-100% 16Bit

Cooling

Forced Convection

DisplayOn board Control, Custom Mode,0-25Hz Strobe
ProtocolRDM,DMX512,ARTNET
PersonalityHSIC(9CHS)SSP(8CHS)TR16(17CHS)PIXEL.1(40CHS)PIXEL.2(52CHS)HALOGEN(5CHS)


Work Environment
Ambient Temp

-20°-45°

IP RatedIP65
