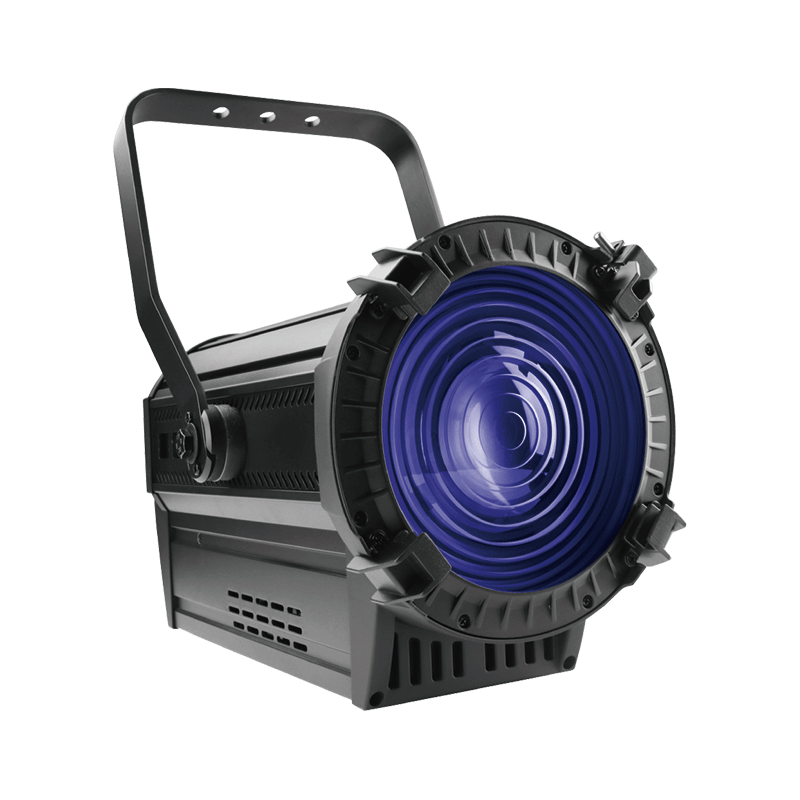

SS815XAL
39-FC7_画板 1 副本 2
39-FC7_画板 1 副本 8
39-FC7_画板 1 副本 9
Live-action film

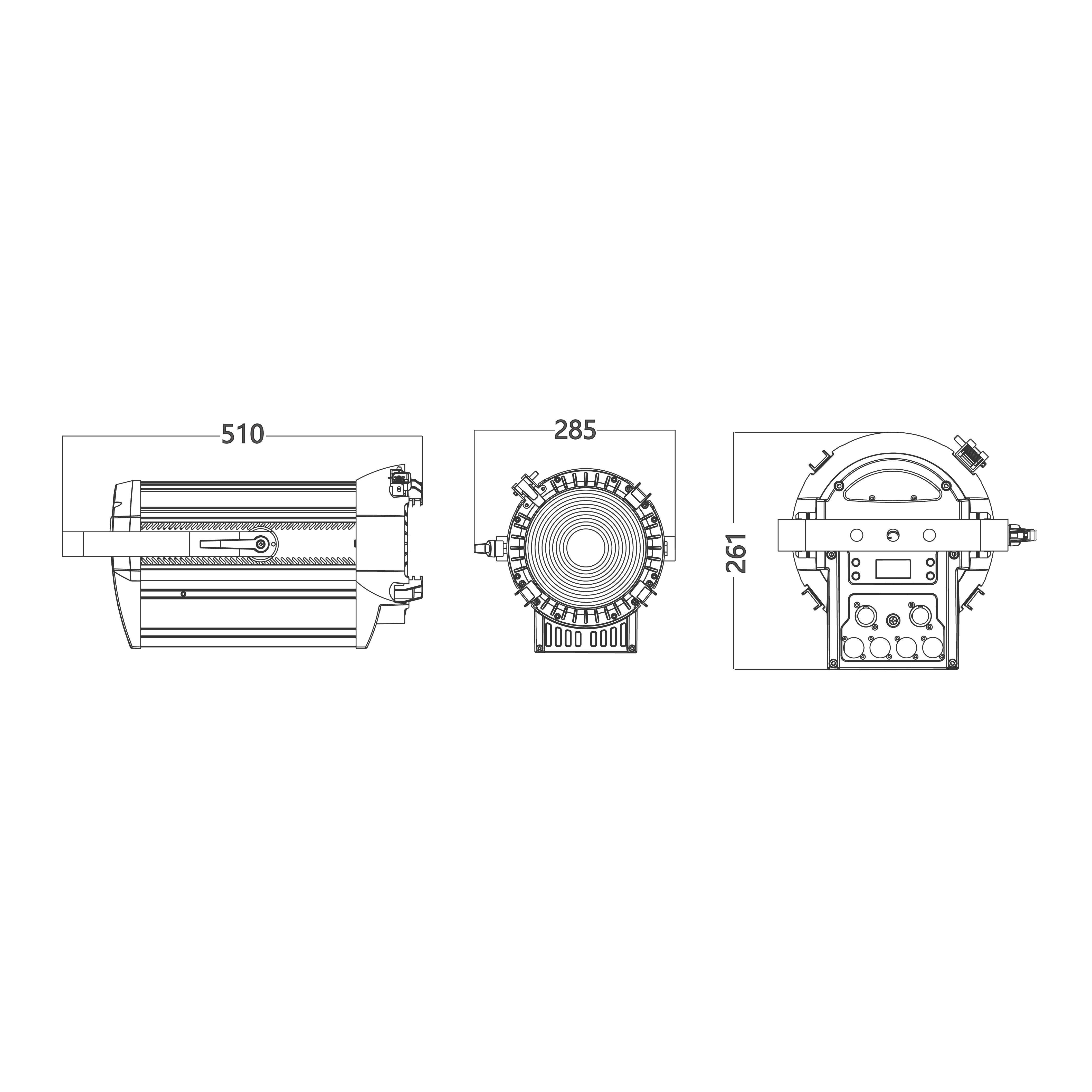

Dimension drawing

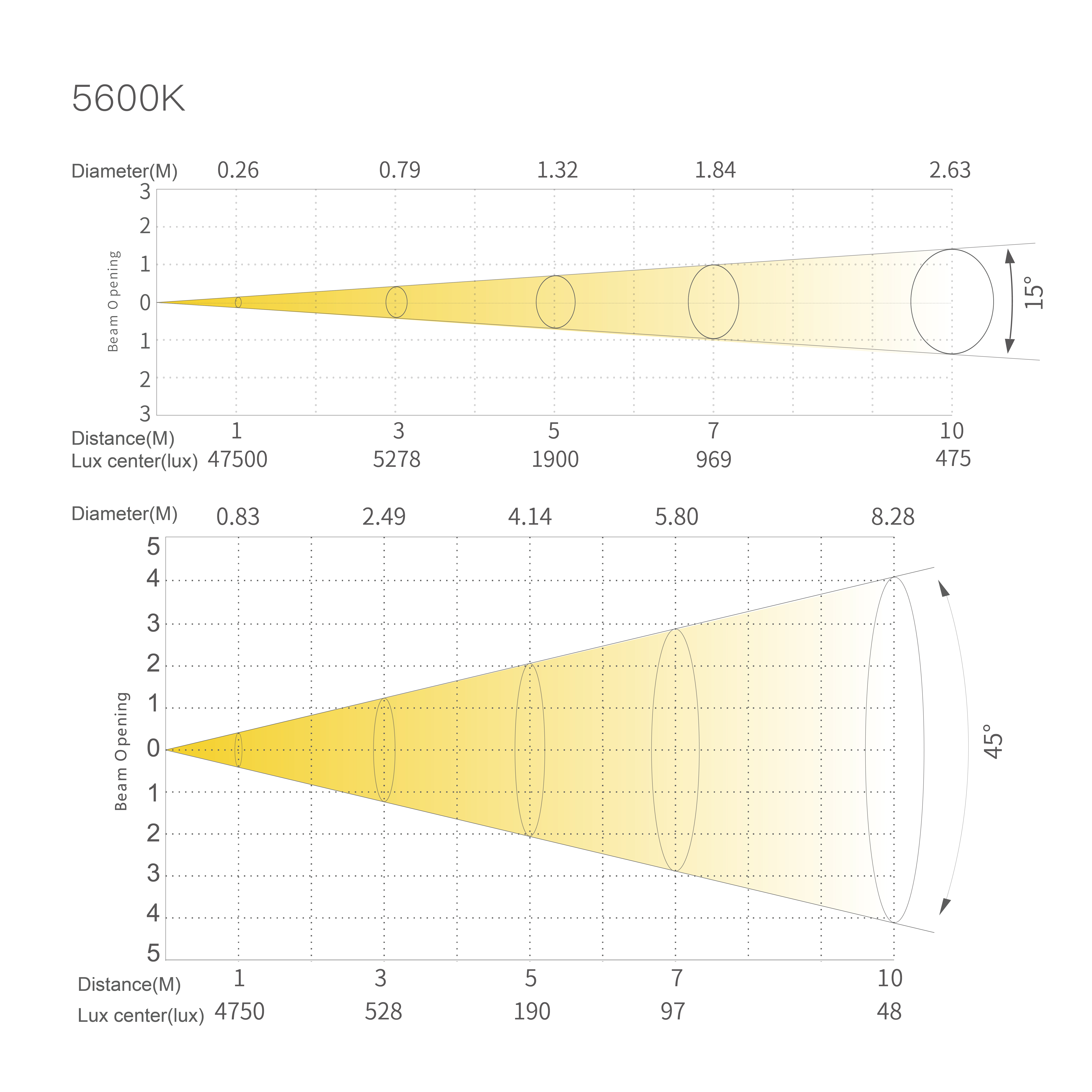

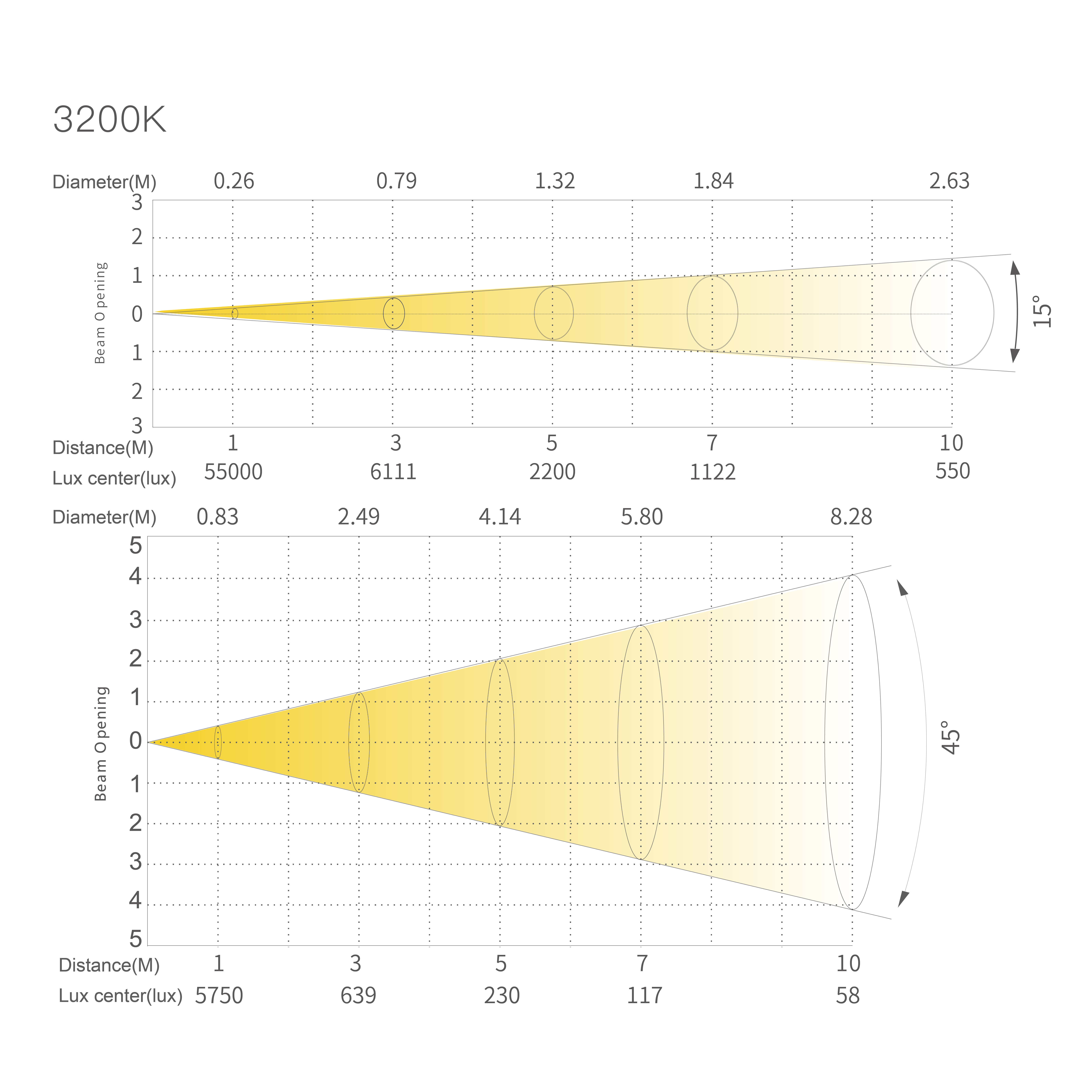

Illuminance diagram
Full color
As an innovative 5 color Fresnel, FREZNO ze-2RGBAL is applied with high-effective optics system, thus generating in excellent color-mixing performance. With HSIC intelligent system, you can mix any color you wanted easily. Color temperatures from 1800K to 10000K, 16 kinds of professional color are programmed. It is an ideal product for profes sional lighting in TV station, studio, exhibition, conference hall, theater etc.
/upload/images/product/20250918/17581780377232826.png
Light source
200W RGBAL
/upload/images/product/20250918/17581780373165964.png
Luminous flux
9326lm
/upload/images/product/20250918/17581780375050898.png
Angle
15°-45°
/upload/images/product/20250918/17581780373150394.png
Weight
7.6KG
/upload/images/product/20250918/17581780374388887.png
Max. Power
240W
Optical system
Light source

200W RGBAL

CCT

1800K-10000K


Angle

15°-45°

Luminous flux

9326lm


Optical system
Size

510x285x261mm

Casing

Extruded aluminum

Weight

7.6KG

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60HZ

Max. Power

240W

Power Connection

Power in and out

DMX XLR

DMX in and out


Control System
Dimmer

0-100% 16Bit

Cooling

Forced Convection

ZoomManual
Display

On board Control, 0-25Hz Strobe


Control

DMX512、RDM

Con Personality

HSIC(8CHS),SSP(10CHS) ,TOUR(13CHS),TR16(19CHS)




Work Environment
Ambient Temp

0℃-45℃

IP Rated

IP20

Certification

CE、MET
