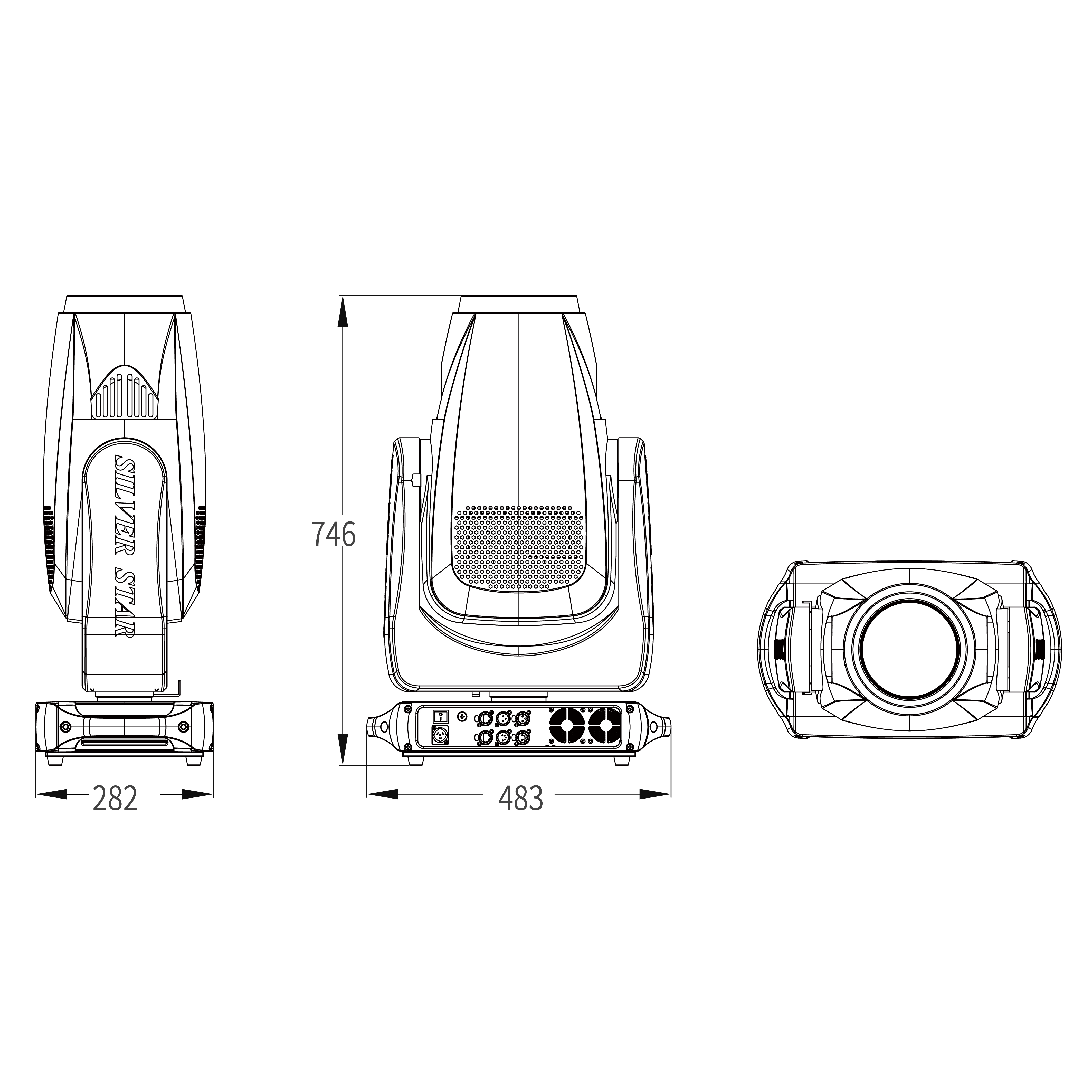

Dimension drawing

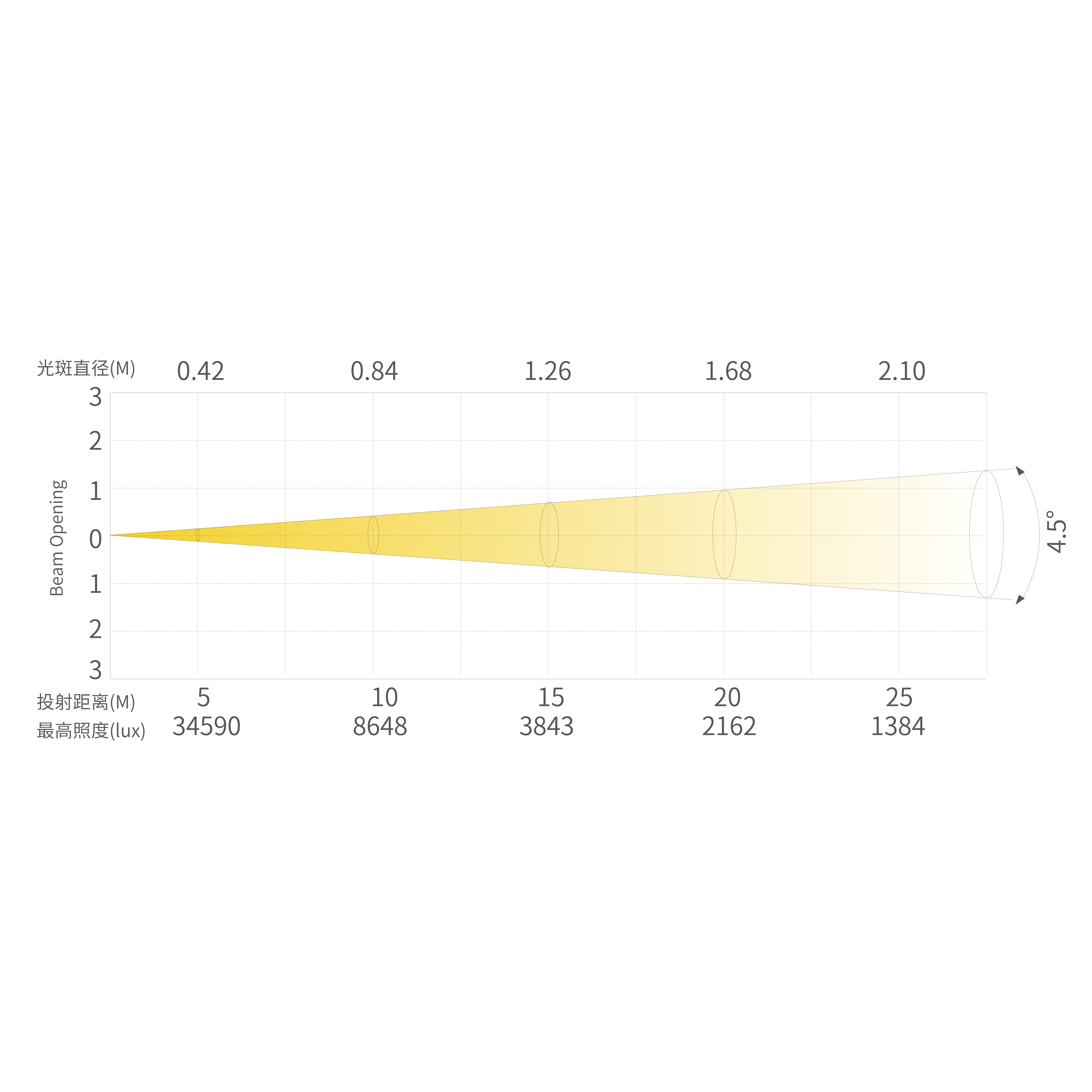

Illuminance diagram
Profile wash

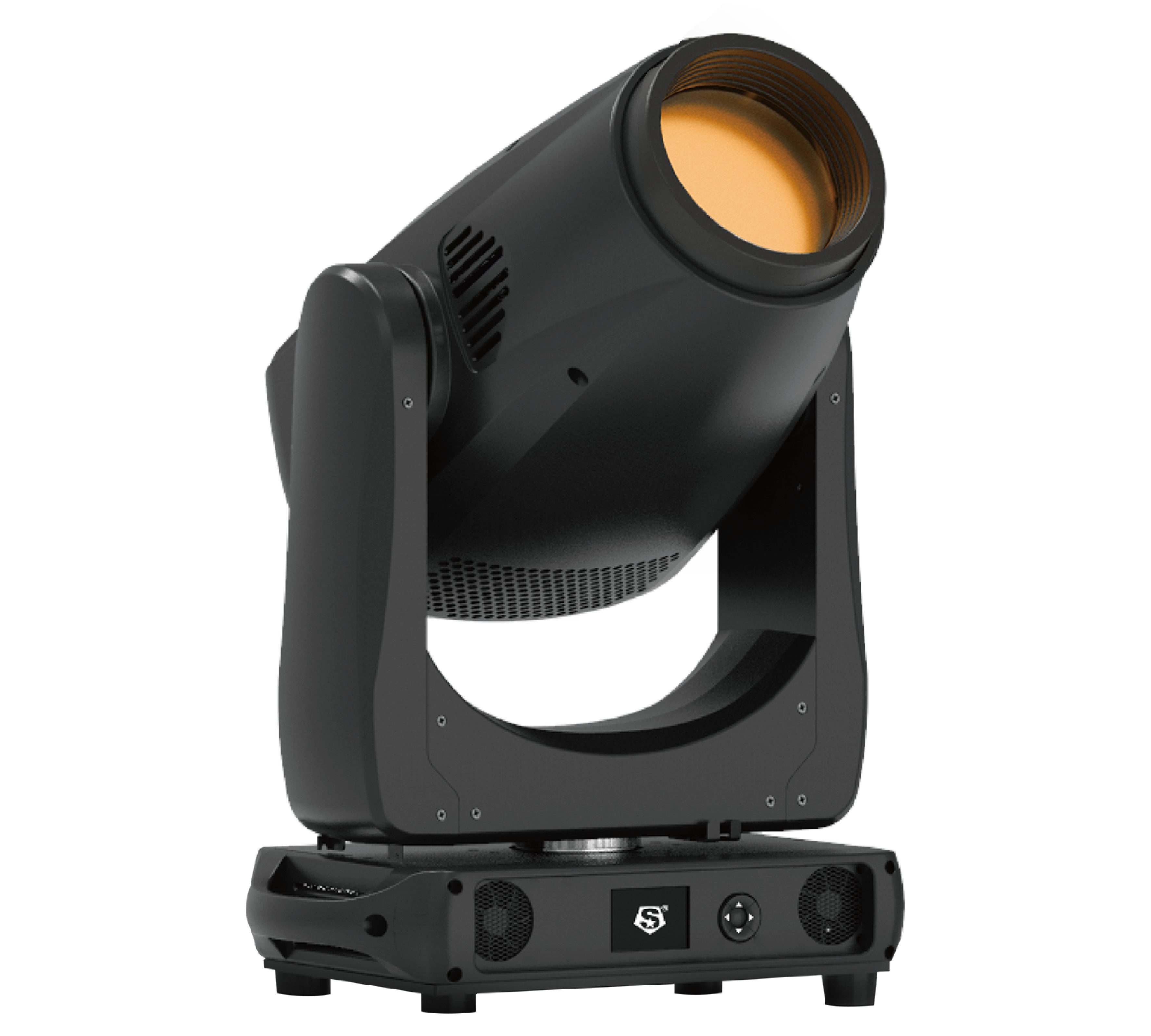

PLUTO 1300 PROFILE Wash is a high-power professional LED profile wash, with 4.5°-54° Electronic zoom system. Precise X/Y positioning, with professional framing system can cut out any polygon, and with frost and iris. It is designed for the theatres, cultural center, function hall, banquet hall, as well as rental performance market.
/upload/images/product/20250917/17580963366533014.png
Light source
1000W module
/upload/images/product/20250917/17580963364149529.png
luminous flux
14921lm
/upload/images/product/20250917/17580963362188229.png
Beam Angle
4.5-43.6°
/upload/images/product/20250917/17580963361807143.png
CRI
94Ra,95R9
/upload/images/product/20250917/17580963369797840.png
Weight
35.5KG
/upload/images/product/20250917/17580963368656022.png
Max. Power
1300W
Optical system

Light source

1000W module

Beam Angle

4.5°-43.6°

field Angle

8.5-54°

CRI

94Ra,95R9


luminous flux

14921lm

Illuminance

5M@34590lux(4.5°)


Appearance
Size

483X283X746mm

Casing

Flame -retardant plastic(V0)

Weight

35.5KG

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60HZ

Max. Power

1300W

Power Connection

power in

Signal socket

3pin or 5pin in and out,

RJ45 in and out


Control System
Pan/Tilt rotation

540°/270°(8-16bit)

Dimmer

0-100%16Bit

Cooling

Forced Convection

Display

On board Control, Custom Mode,0-25Hz Strobe


Control

DMX512,RDM,W-DMX(optional)

Con Personality

BASIC(28CHS)、STANDARD(33CHS)、EXTEND(37CHS)


Special

Pan/Tilt movement blackout, User-selectable pan/tilt ranges



Effect synthetic system


Colors

Two color wheel (7dichroic-filters+White,Rainbow-flow effect)

CMYK

CMY wheel, Linear CTO function


Framing system

4 shutter blade; Each blade's angel and direction can be individual

controlled, fully blackout; The whole Framing module is ±90°

Iris

5-100% linearly adjustable with macro

Focus

Motorized linear focus

Zoom

Motorized linear Zoom

Frost

2 new material frost filters(light & medium), can be used

independent and overlay

Work Environment
Ambient Temp

0℃-45℃

IP Rated

IP20

Certification

CE、MET
