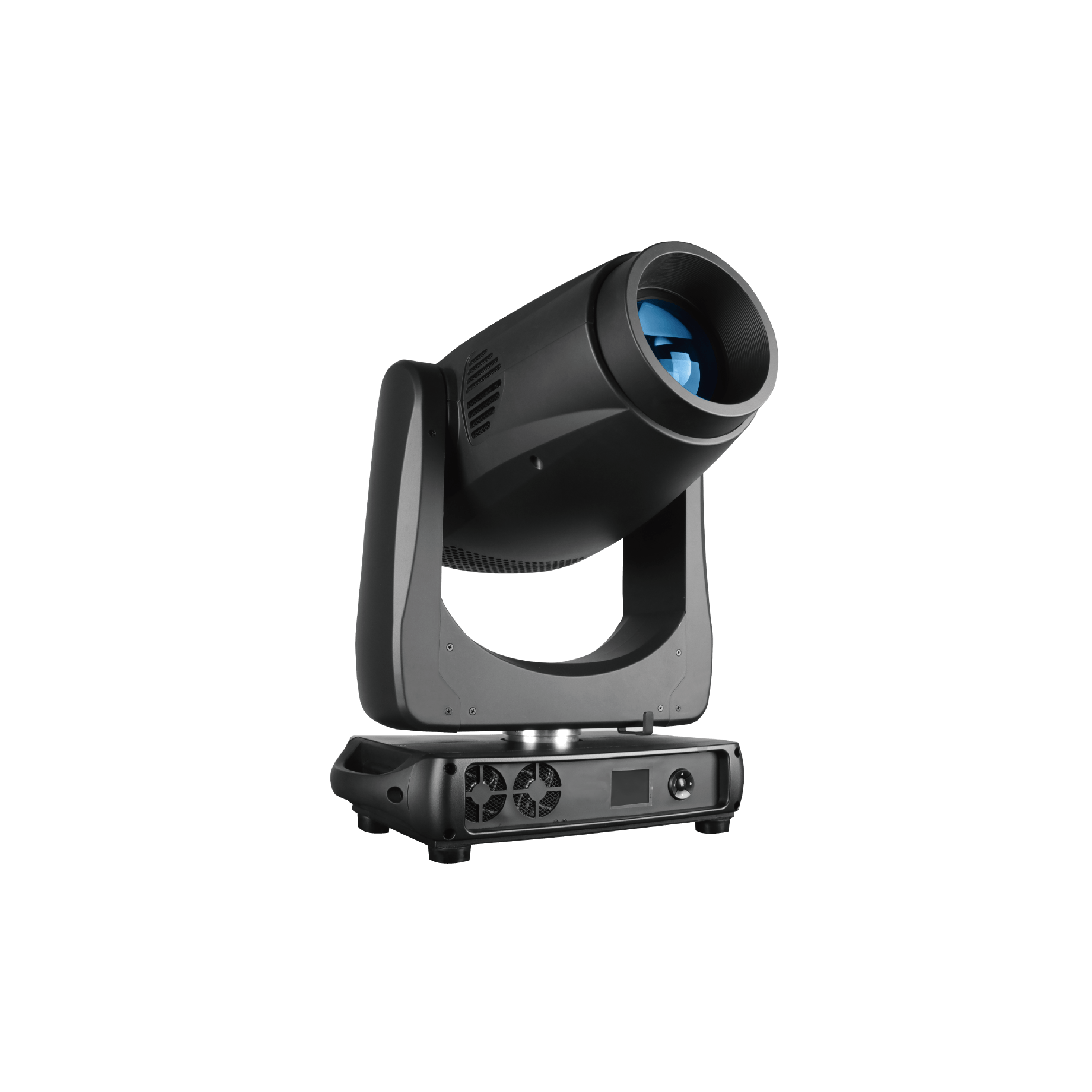

The T8 is a high-power LED moving profile with an efficient optical system combined with an intelligent
electronic zoom of 5°-50°. With X/Y positioning smooth and accurate, professional color wheel show
magic color effect, gobo wheel switch fast and sensitive, the effect is more colorful. Professional
framing systems can cut out any polygon. Professional frost can meet the needs of stage washing. The
customized iris will show the flexibility of the spot more vividly. This product is specially developed for
theater, cultural hall, multi-function hall, banquet hall and rental performance venue.
Light source
600W光源模组
Angle
5--50°
CRI
95Ra
Weight
35.5KG
Max Power
890W
Optical system
Light source
600W
Angle
5--50°
CRI
95Ra

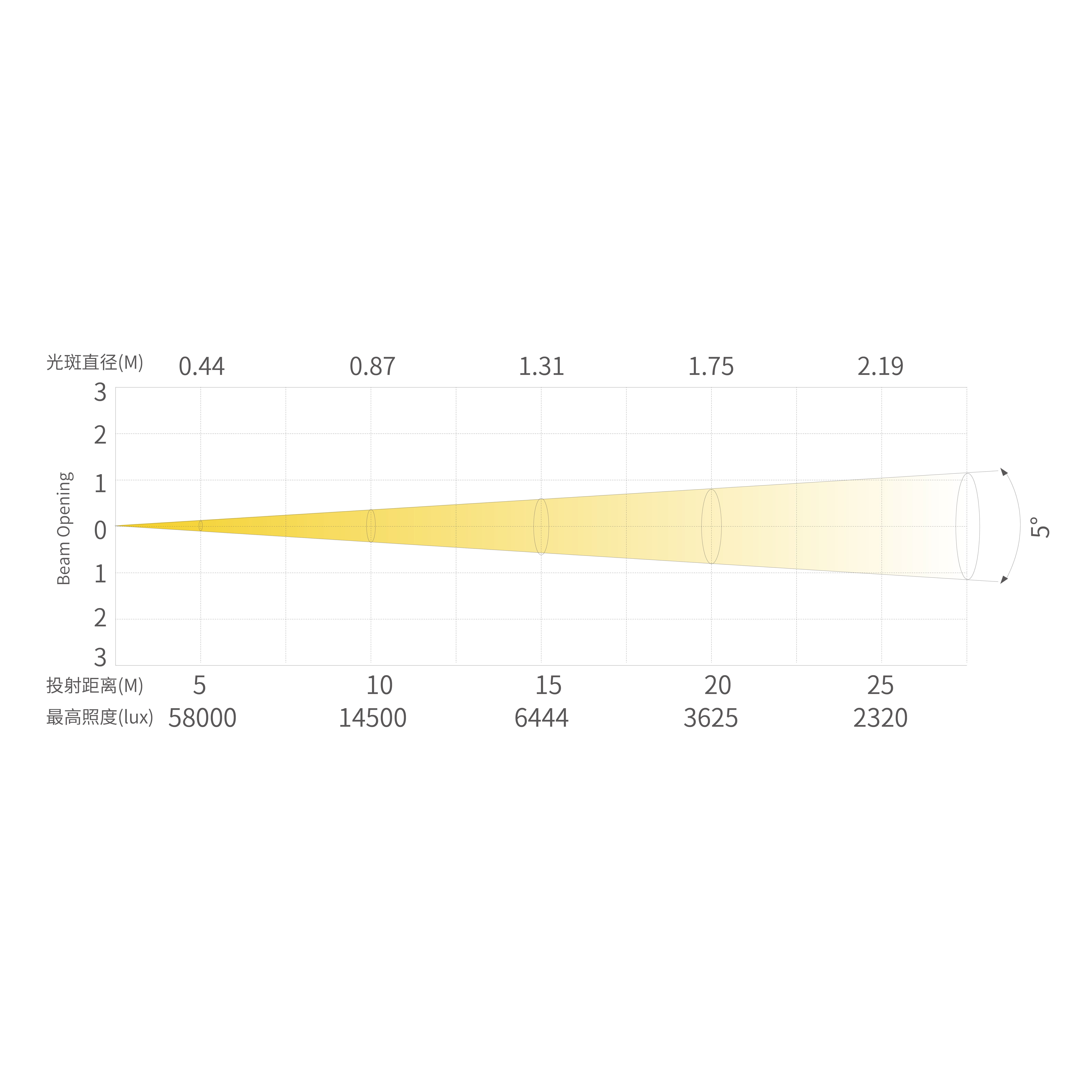

illumination
58000Lx
Appearance

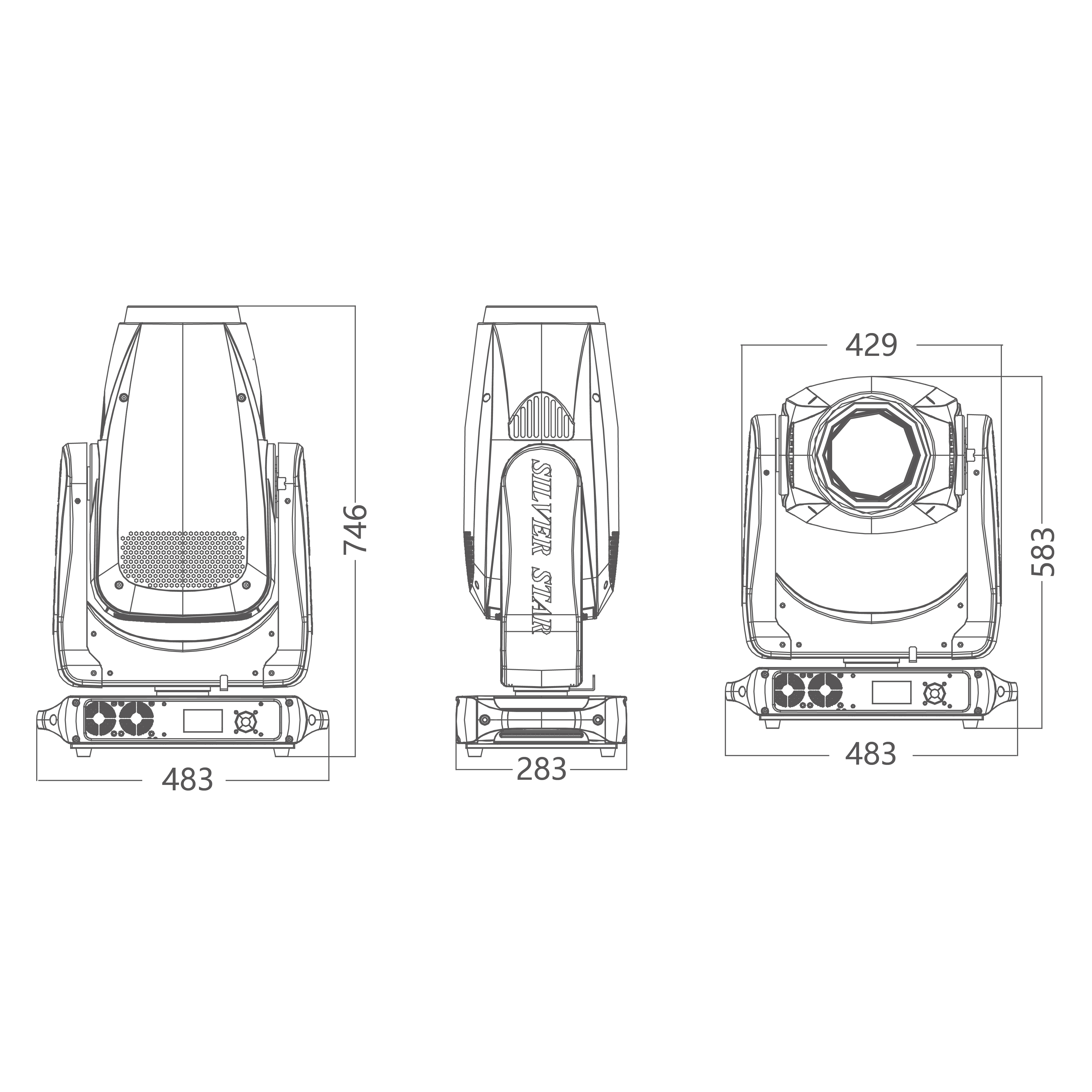

Size
483x283x746mm
Casing
Flame -retardant
engineering plastic housing
Weight
35.5KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max Power
890W
Power Connection
power in
Signal socket
3pin or 5pin in and out，
RJ45 in and out
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Cooling
forced air cooling
Dimmer
Opera dimming effect (0-100% 16Bit dimming)
Control
Display board control static, custom mode, 0-25Hz stroboscopic
Control
DMX512、RDM、SACN、ARTNET、W-DMX（optional）
tunnel mode
BASIC、STANDARD、EXTEND
Special function
Pan/Tilt movement blackout, User-selectable pan/tily range
