Live-action film

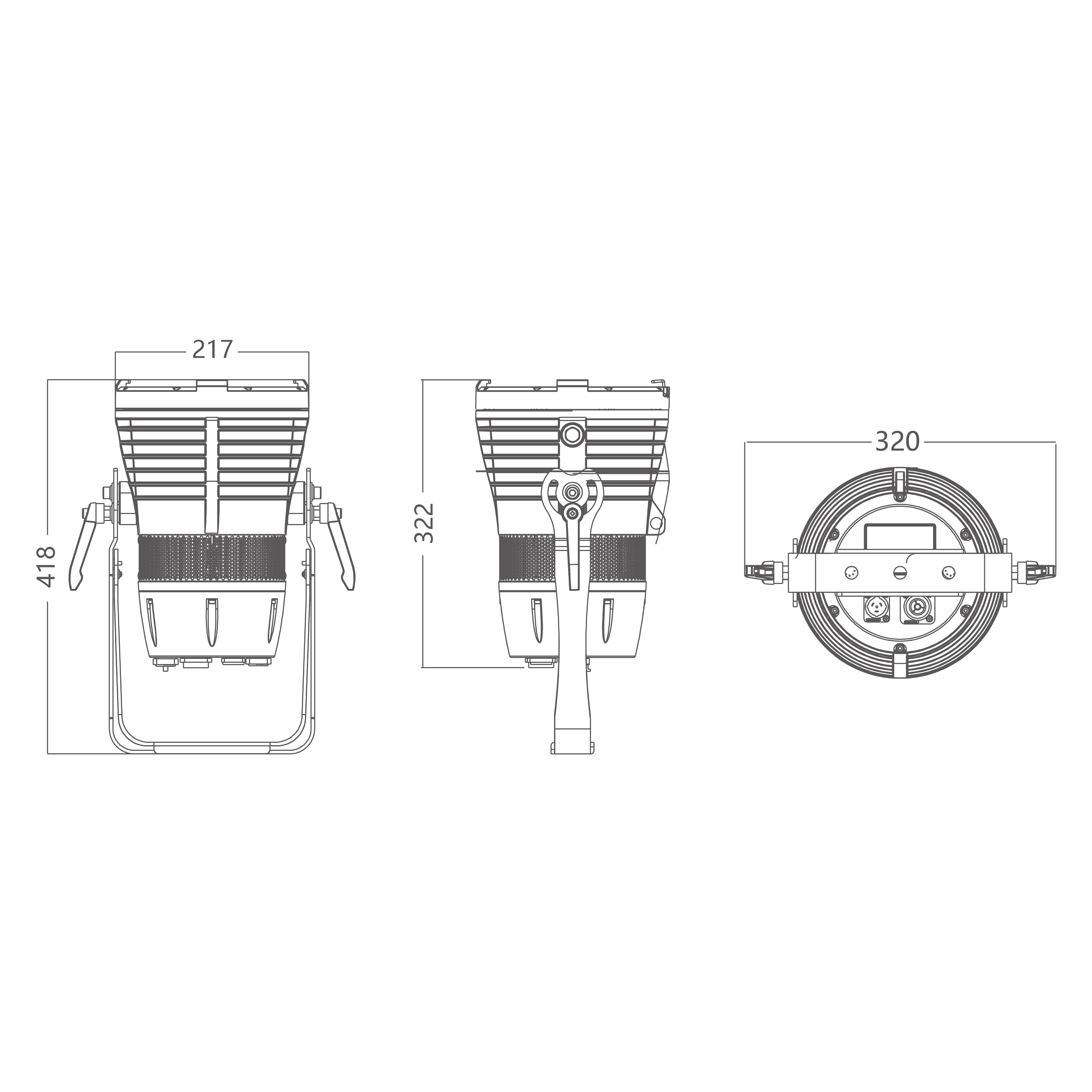

Dimension drawing

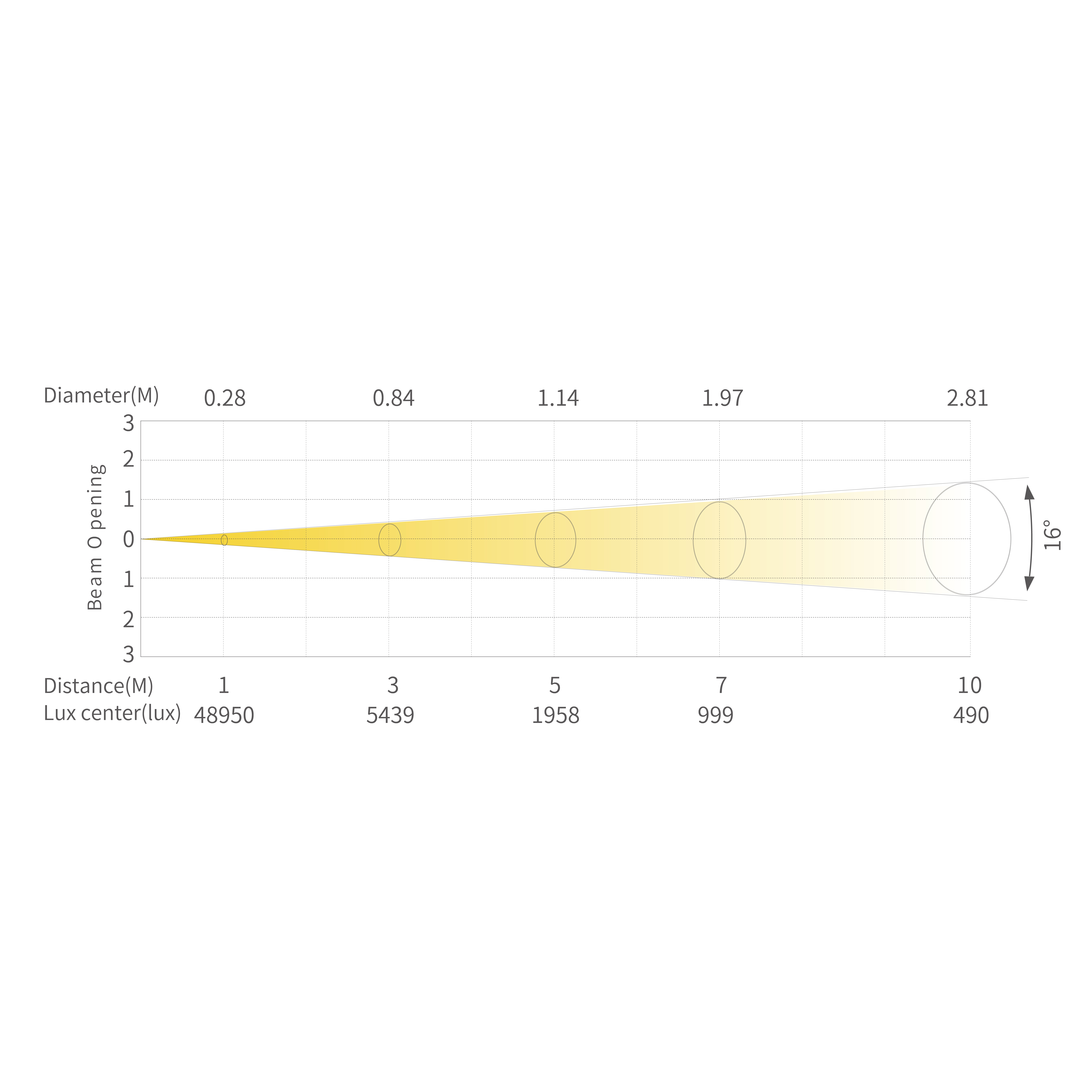

Illuminance diagram
Full spectrum

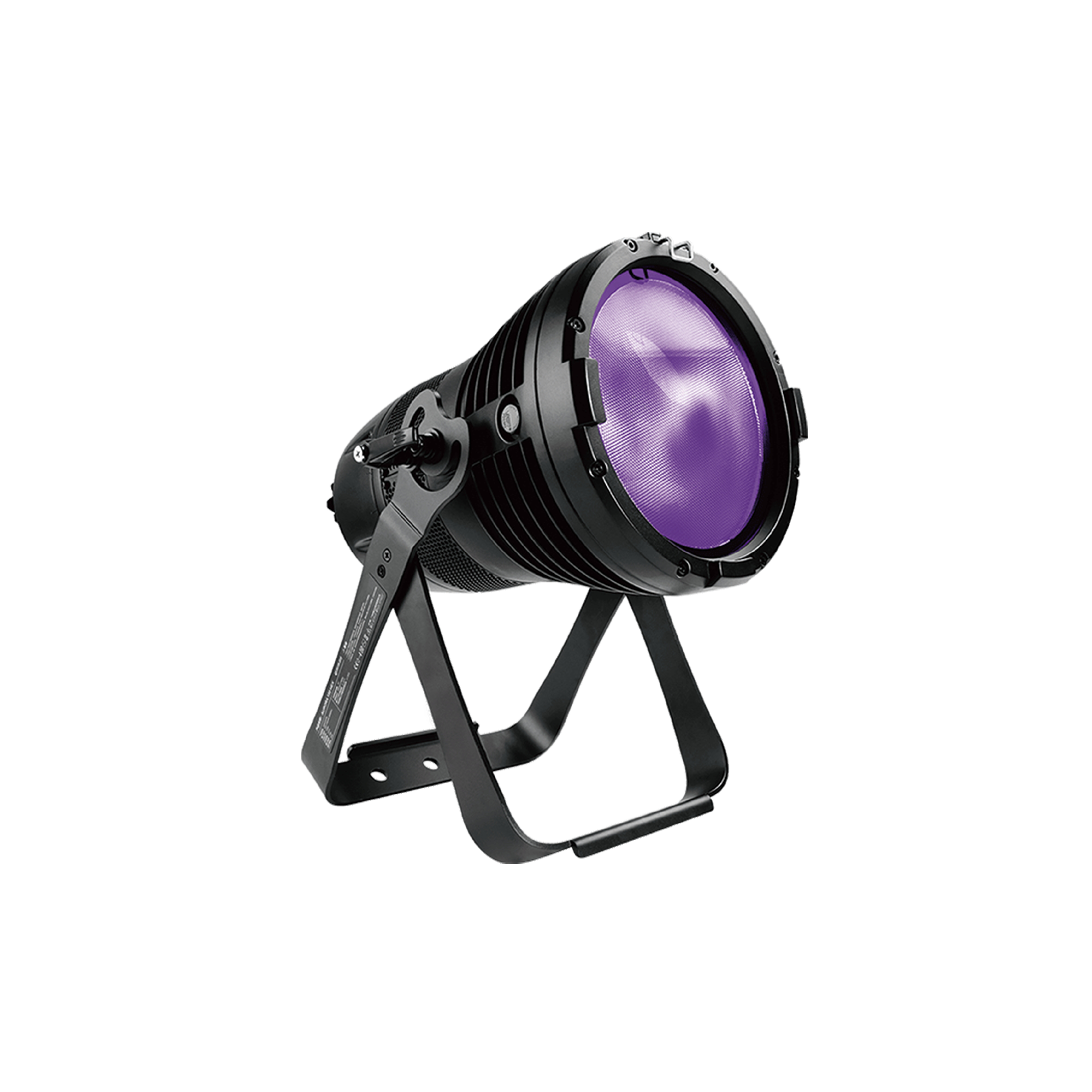

AURORA 150 HEX It' s an innovative with classic one homogeneous lens optic spotlight, with classic one big homogeneous lens optic, excellent color mixing, HSIC system makes color mixing simple and easy; Precise pre-set CCT 1800-8000K, high CRI >93. It is an ideal dream tool for TV, theater, opera, studio, exhibition,Motor Show, multi-functional hall and so on.
/upload/images/product/20250918/17581775546016292.png
Light source
143W RGBALC
/upload/images/product/20250918/17581775555710258.png
Luminous flux
5074lm
/upload/images/product/20250918/17581775542283050.png
Angle
16°（25°可选）
/upload/images/product/20250918/17581775554389001.png
Welght
6.5kg
/upload/images/product/20250918/17581775541976487.png
Rated Power
143W
Optical system
Light source

143W RGBALC

Angle16°(25 o ptional)
Luminous flux5047lm
CCT1800K-10000K
CRI RAVCRIR9/TLCI/CQS95/96/76/94


Appearance
Size

320X217X418mm

Casing

Die-cast aluminum

Weight 6.5kg
Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Rated Power143W
PowerConnectionPowerin and out
DMX XLR

DMXin and out


Control System
Dimmer

0-100%616Bit

CoolingForced Convection
DisplayOn board Control , Custom Mode ,0-25Hz Strobe
ControlDMX512 RDM
Con PersonalityBasic（3CHS）、SSP（8CHS）、TOUR（13CHS）、 TR16（20CHS）、HSIC（7CHS）、CMY（10CHS）


Work Environment
Ambient Temp-20°-45°
CertificationCE、MET
IP RaledIP65
