Live-action film

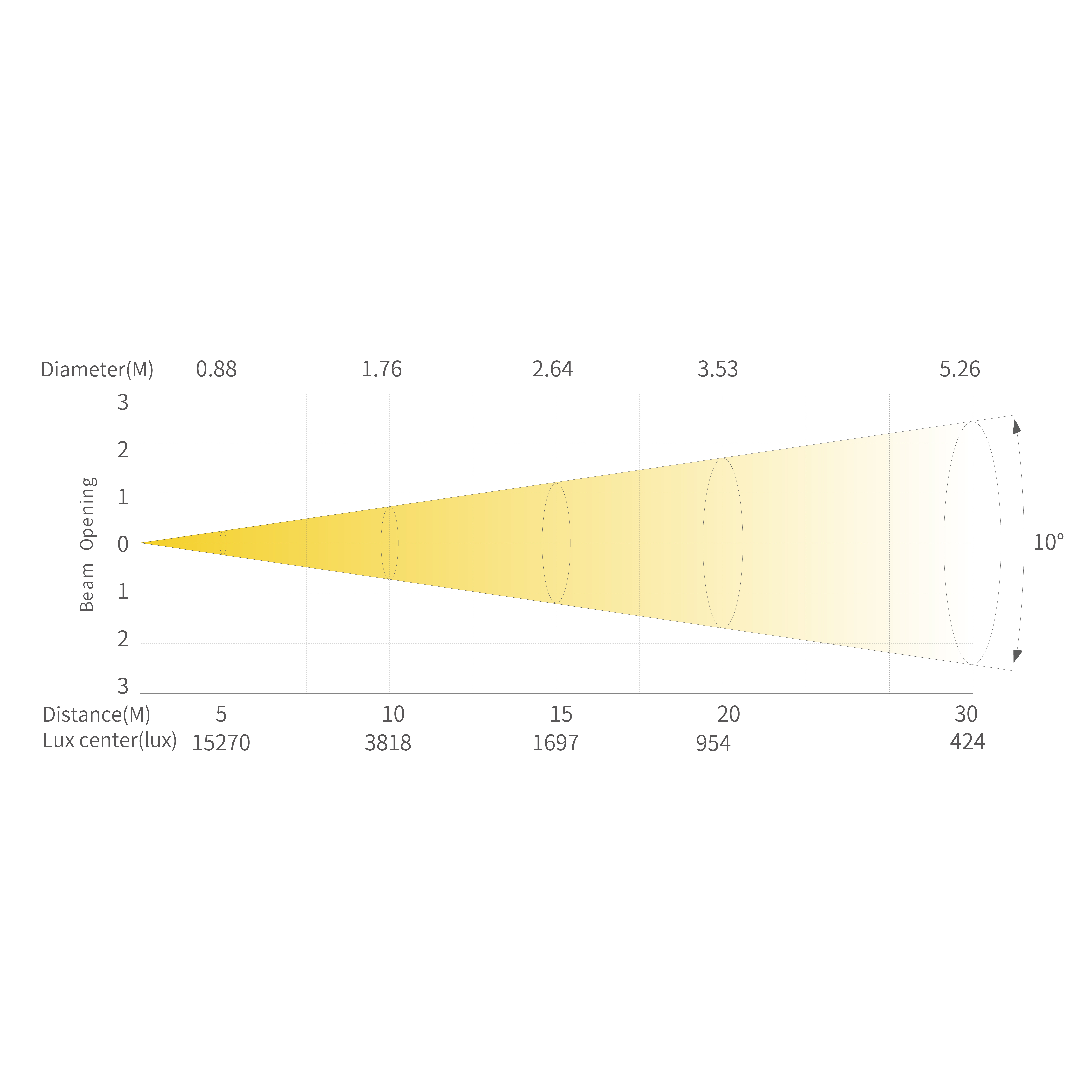

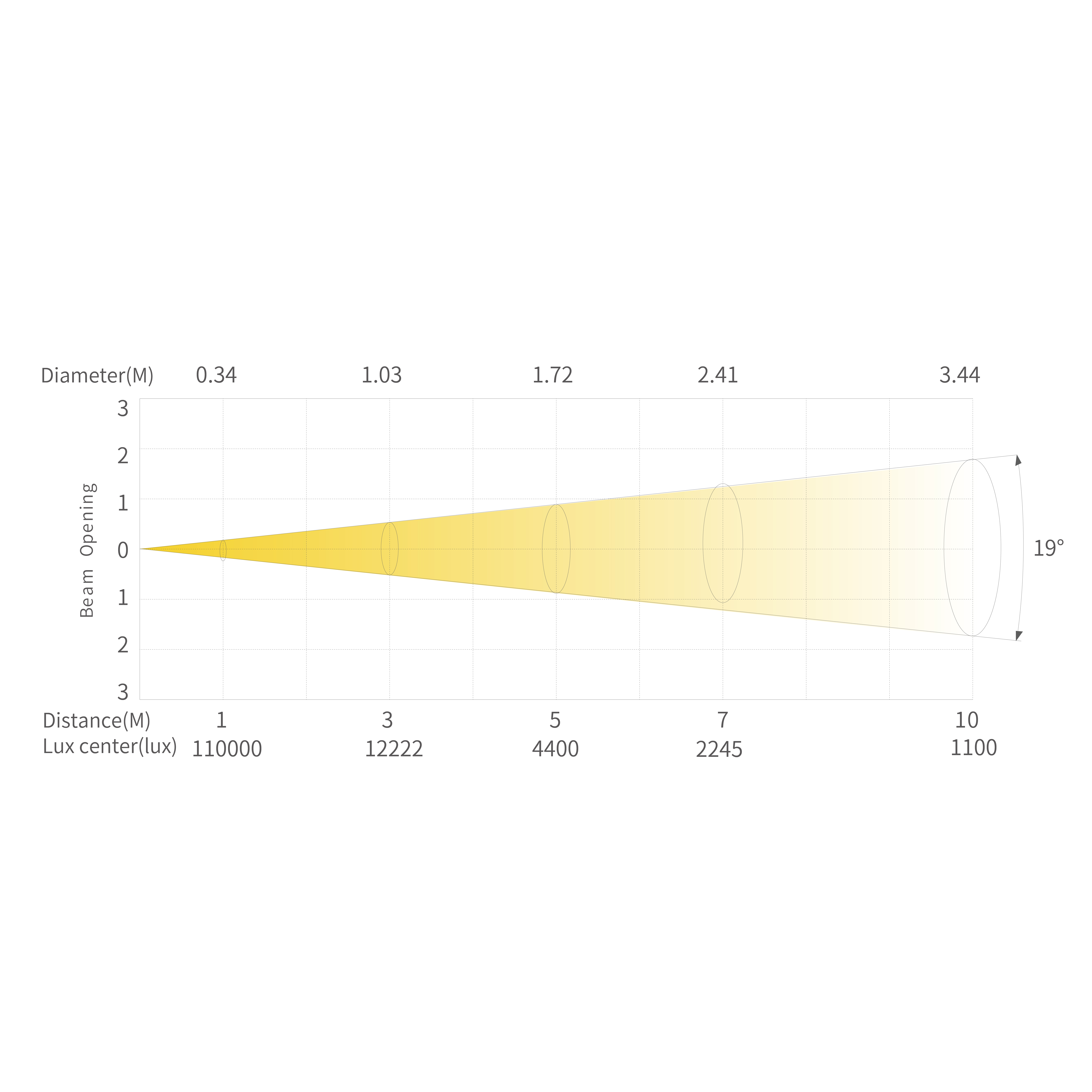

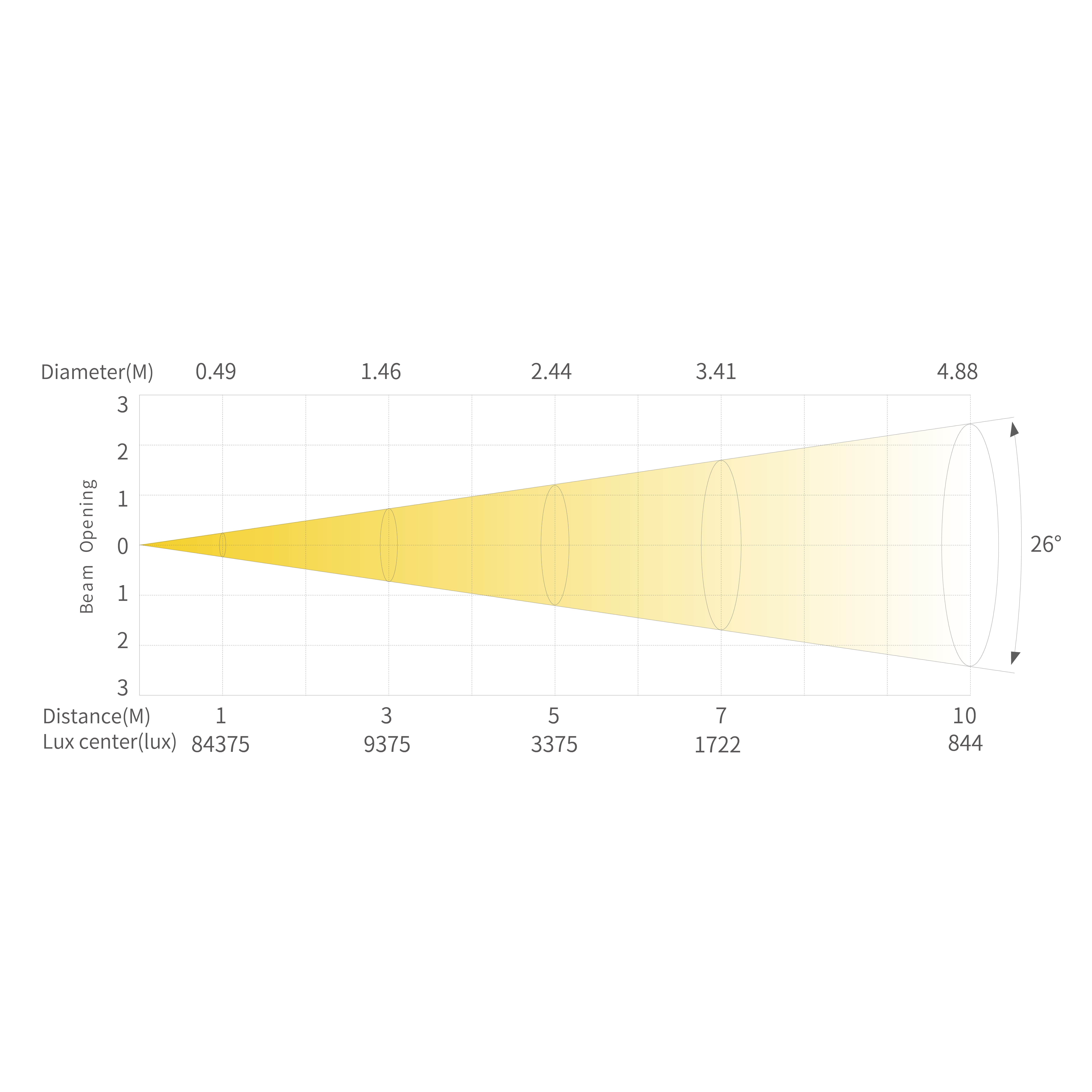

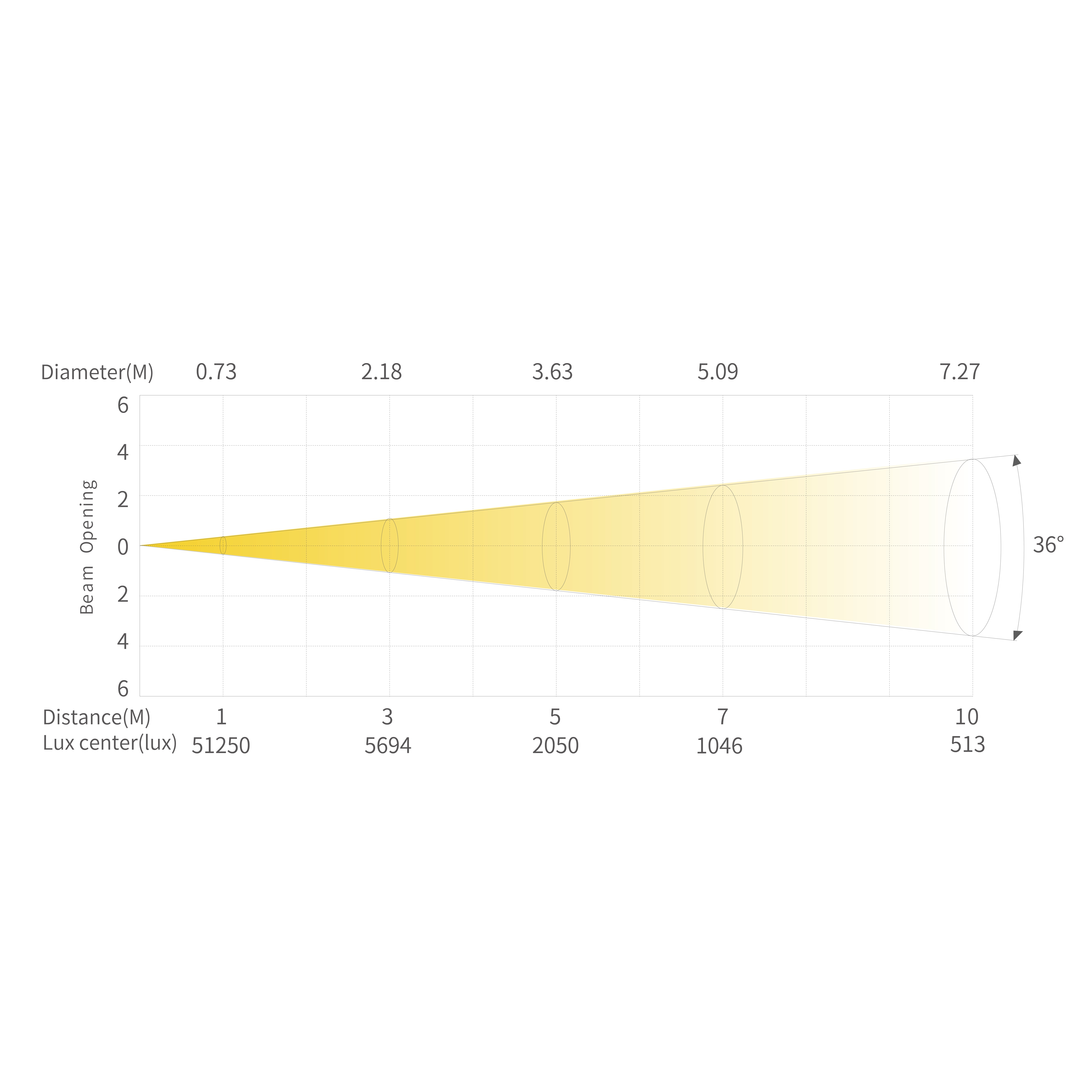

Illuminance diagram
Full spectrum
ECLIPSE PRIME HEX is a outstanding RGBALC 6 color profile, covering full color range. It is compated with CCS technology, precised CCT from 1800-10000K, reaching super high CRI ≥95. ECLIPSE PRIME HEX also has the perfect dimming curve and crystal-clear projection. It's designed for theater, opera, TV, rental and show applications!
/upload/images/product/20250918/17581780377232826.png
Light source
270W RGBALC
/upload/images/product/20250918/17581780373165964.png
Luminous flux
10276lm
/upload/images/product/20250918/17581780375050898.png
Angle
5°/10°/14°/19°/26°/36° 50°/15°-30°/25°-50°
/upload/images/product/20250918/17581780373150394.png
Welght
8kg（不带筒）
/upload/images/product/20250918/17581780374388887.png
Rated Power
280W
Optical system
Light source

270W RGBALC

Luminous flux10276lm


CCT1800K-10000K
CRI/CRIR9/TLCI/CQS95/90/95/80
Angle5°/10°/14°/19°/26°/36°/50°/15°-30°/25°-50°


Appearance
Size

578x371x226mm

Casing

压铸铝

Weight 8kg
Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power280W
Power ConnectionPower in and out
DMX XLR

3pin or 5pin in and out


Control System
Dimmer

0-100%16Bit

CoolingForced Convection
ControlDMX512RDM
Con Personality

BASIC(3CH),SSP(8CH) TOUR(13CH),TR16(20CH)

HSIC (7CH),CMY(10CH

Display

On board Control,0-25Hz Strobe


Work Environment
Ambient Temp0°-45°
CertificationCE、MET
IP RaledIP20

Download materials

Product brochure
  • EC5 leaflet
    2025-09-18
    Down
Product lamp library
  • EC5 MA2
    2025-09-18
    Down
User manual
  • EC5 specification
    2025-09-18
    Down
