NEPTUNE PLUTO STAGER TOURZ

Home

Live-action film

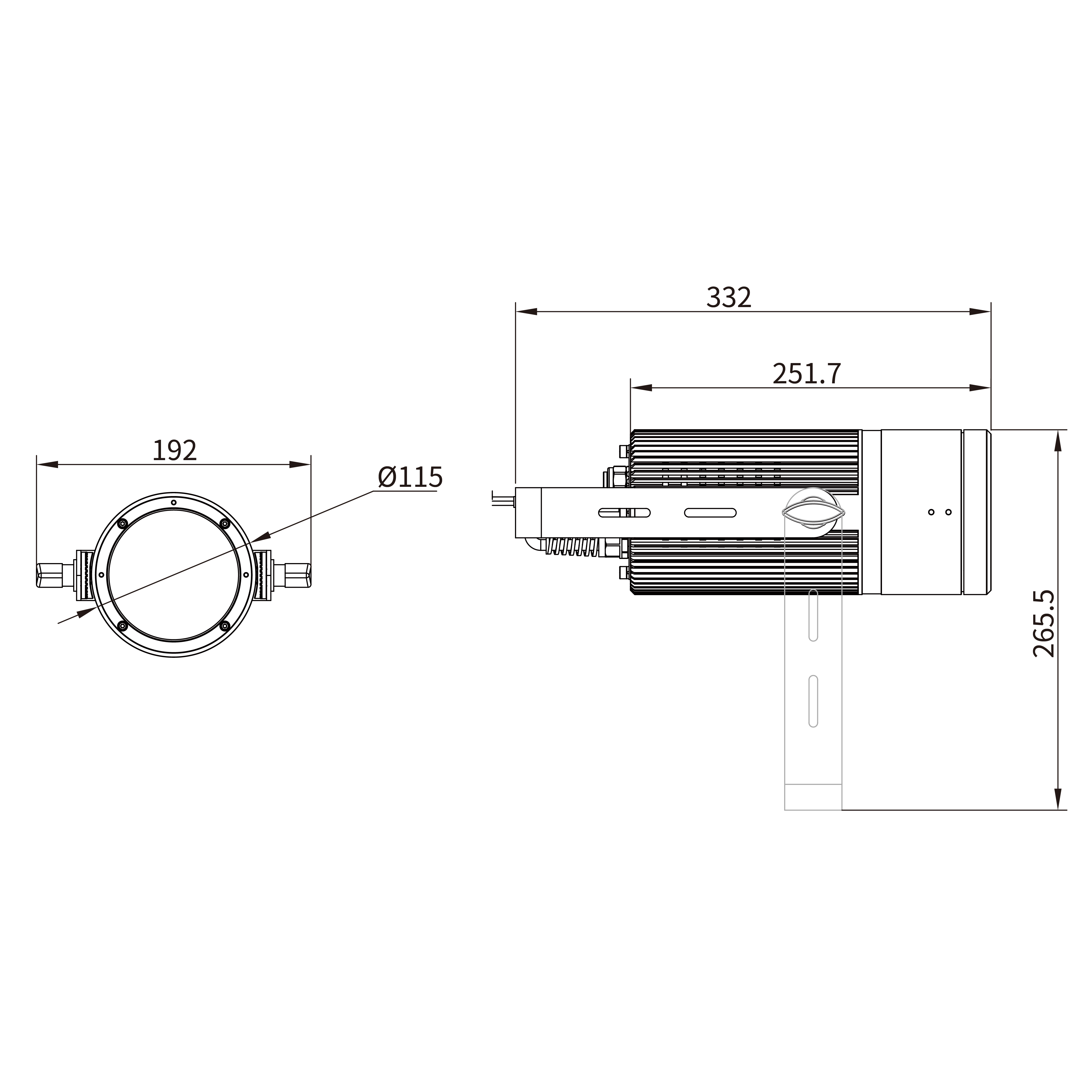

Dimension drawing

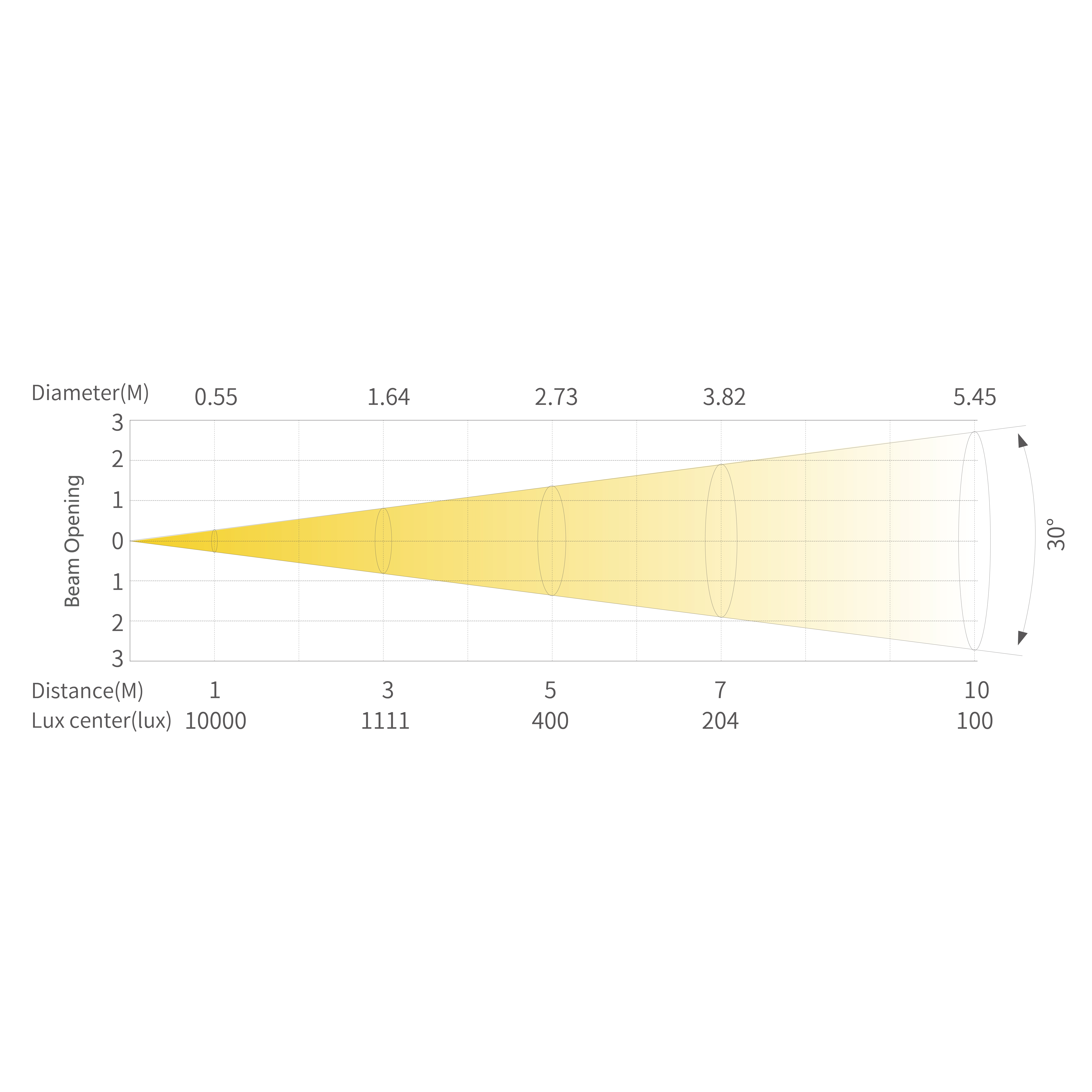

Illuminance diagram

Full spectrum

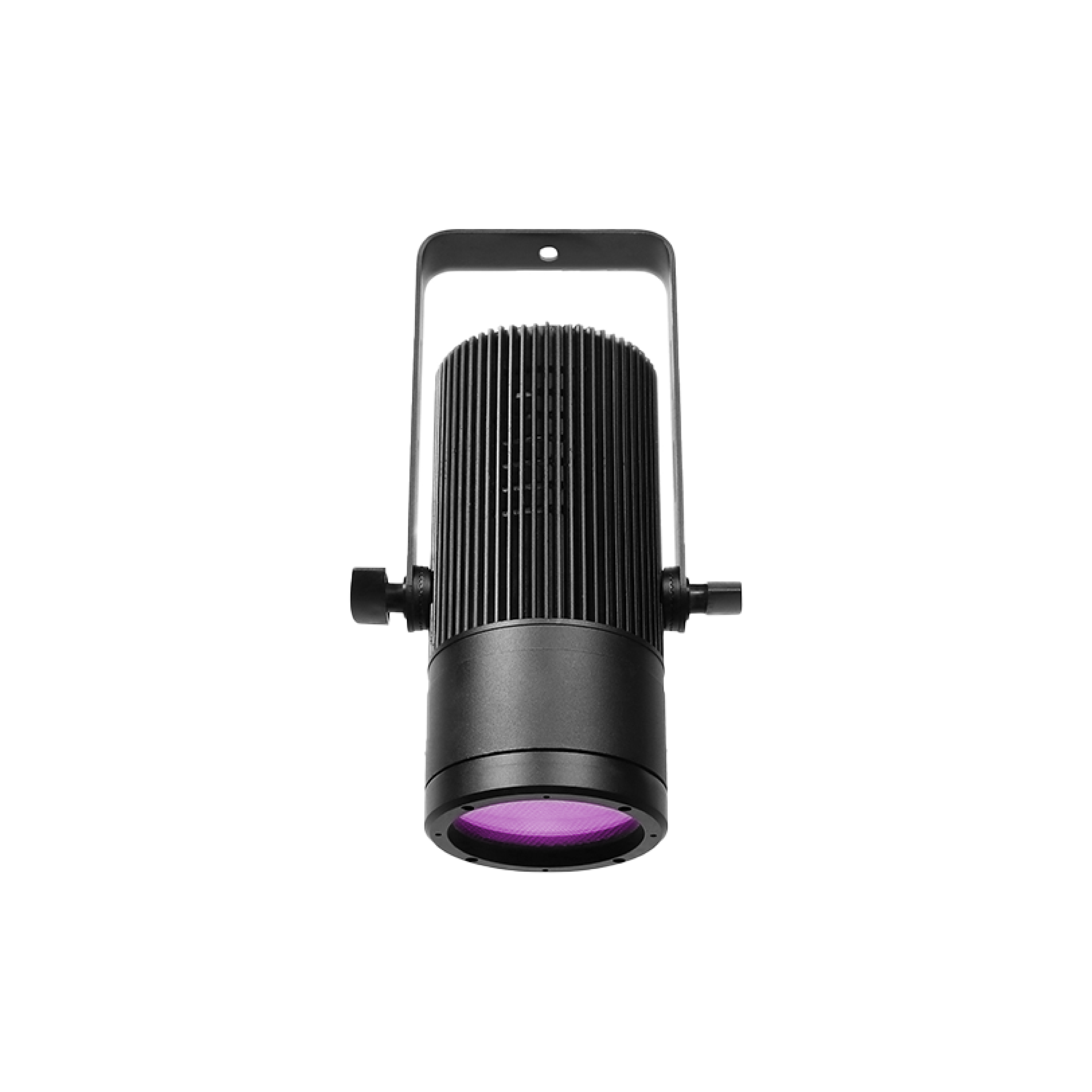

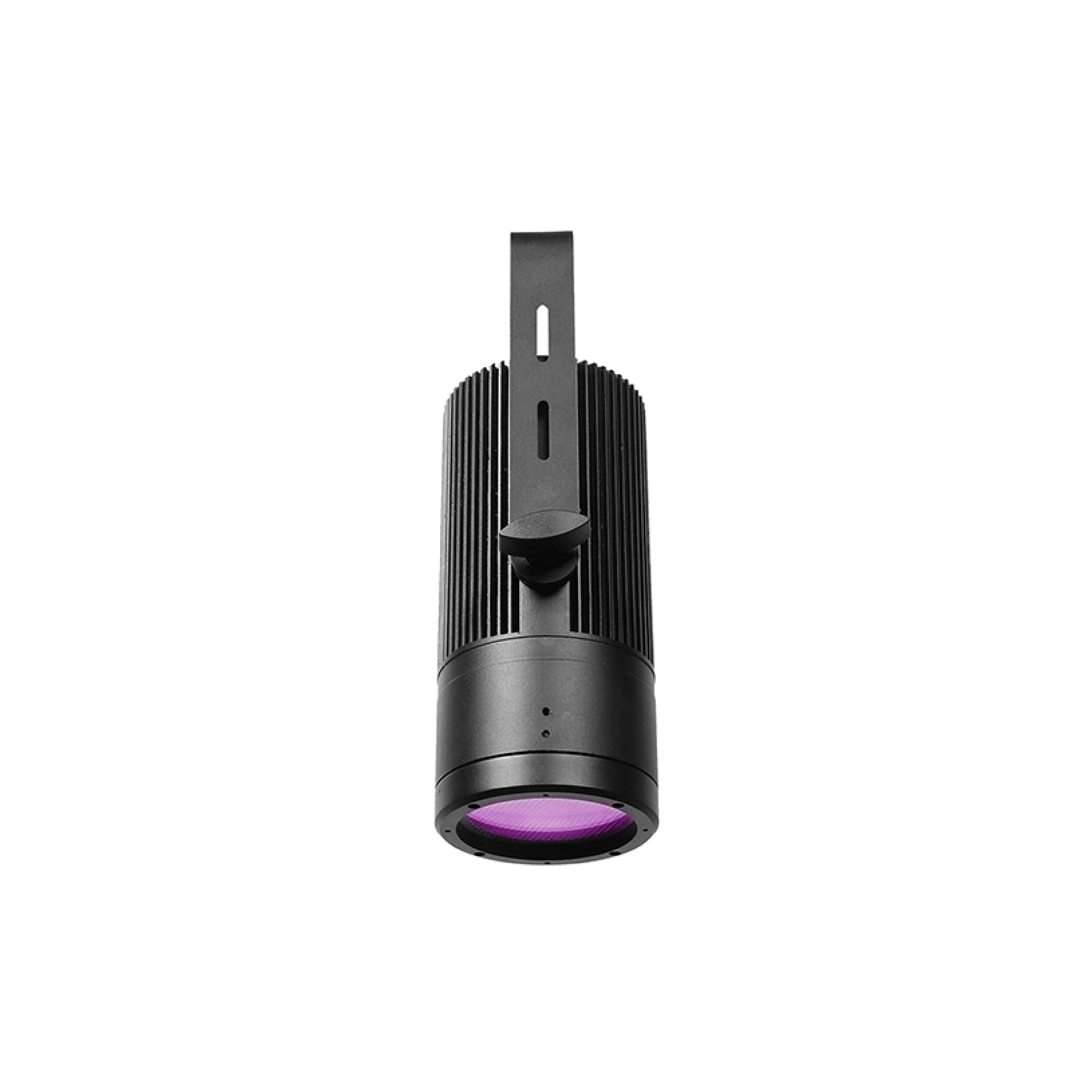

M00NLITE 80 HEX is a creative houselight，with high-efficient optics system，exellent color mixing, simple and easy HSIC color mixing system , precise CCT 1800K-10000K. It is an ideal tool for TV, studio,- funtional hall, exhibition, carshow, theater, opera etc

/upload/images/product/20250918/17581775546016292.png

Light source

80W RGBALC

/upload/images/product/20250918/17581775555710258.png

Luminous flux

2684lm

/upload/images/product/20250918/17581775542283050.png

Angle

30°

/upload/images/product/20250918/17581775545872712.png

/upload/images/product/20250918/17581775554389001.png

Weight

3.4kg

/upload/images/product/20250918/17581775541976487.png

Max. Power

70W

Optical system

Light source	80W RGBALC
CCT	1800K-10000K

Angle	30°
Luminous flux	2684lm
RA	95

Appearance

Size	332x192x115mm
Casing	Die-cast aluminum
Weight	3.4kg
Color	Black

Electrical Specs

Voltage	100-240VAC,50/60Hz
Max. Power	70W

Power Connection	Power in
DMX XLR	3pin or 5pin in and out

Control System

DIMMER

0-100% 16Bit

Cooling	Direct Convection
Display	On board Control, Custom Mode,0-25Hz Strobe
Protocol	RDM/DMX/W-DMX
Personality	HSIC（7CHS）、SSP（8CHS）、TOUR（13CHS）、 TR16（20CHS）、CMY（8CHS）

Work Environment

Ambient Temp	0°-45°
IP Rated	IP20
Certification	CE、MET
