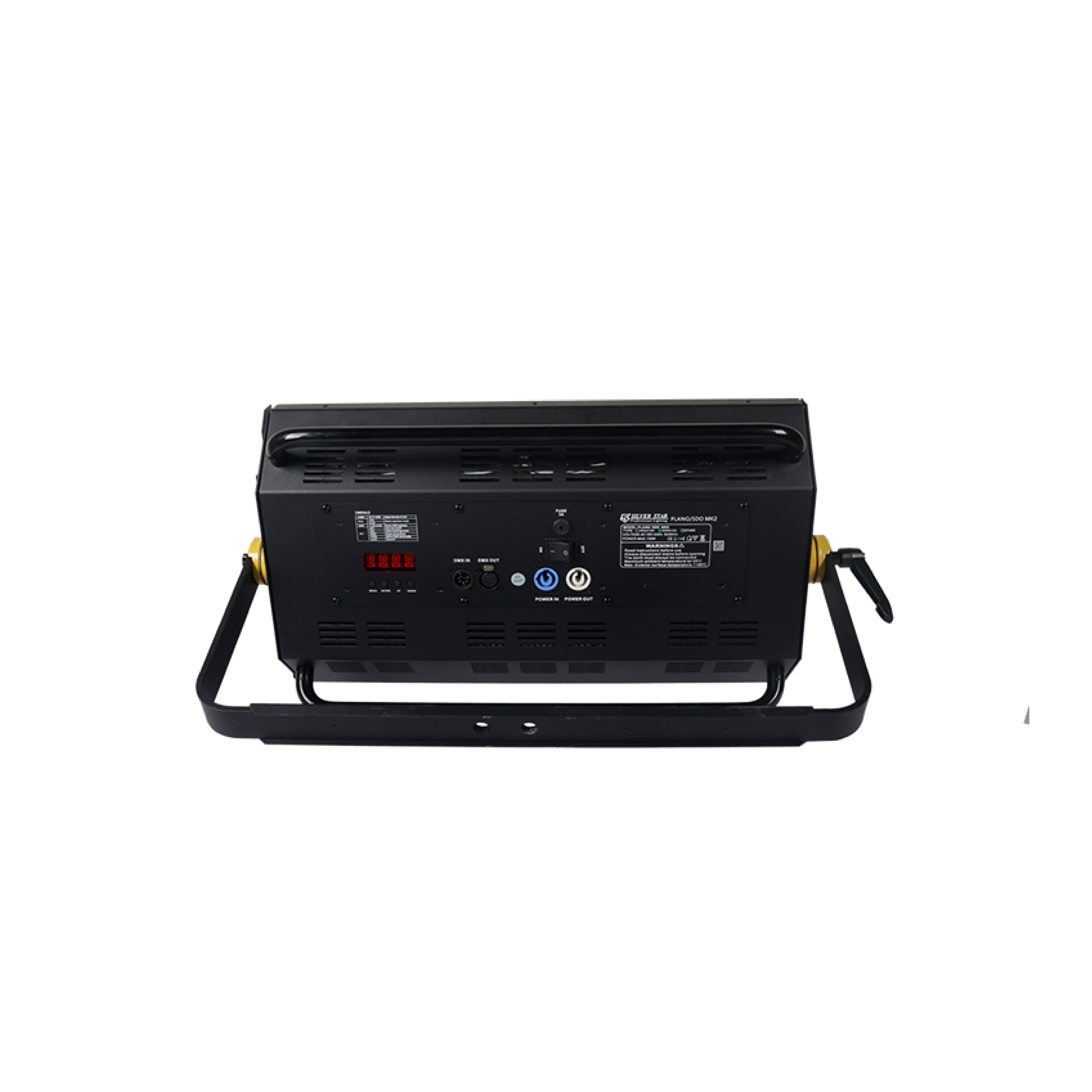

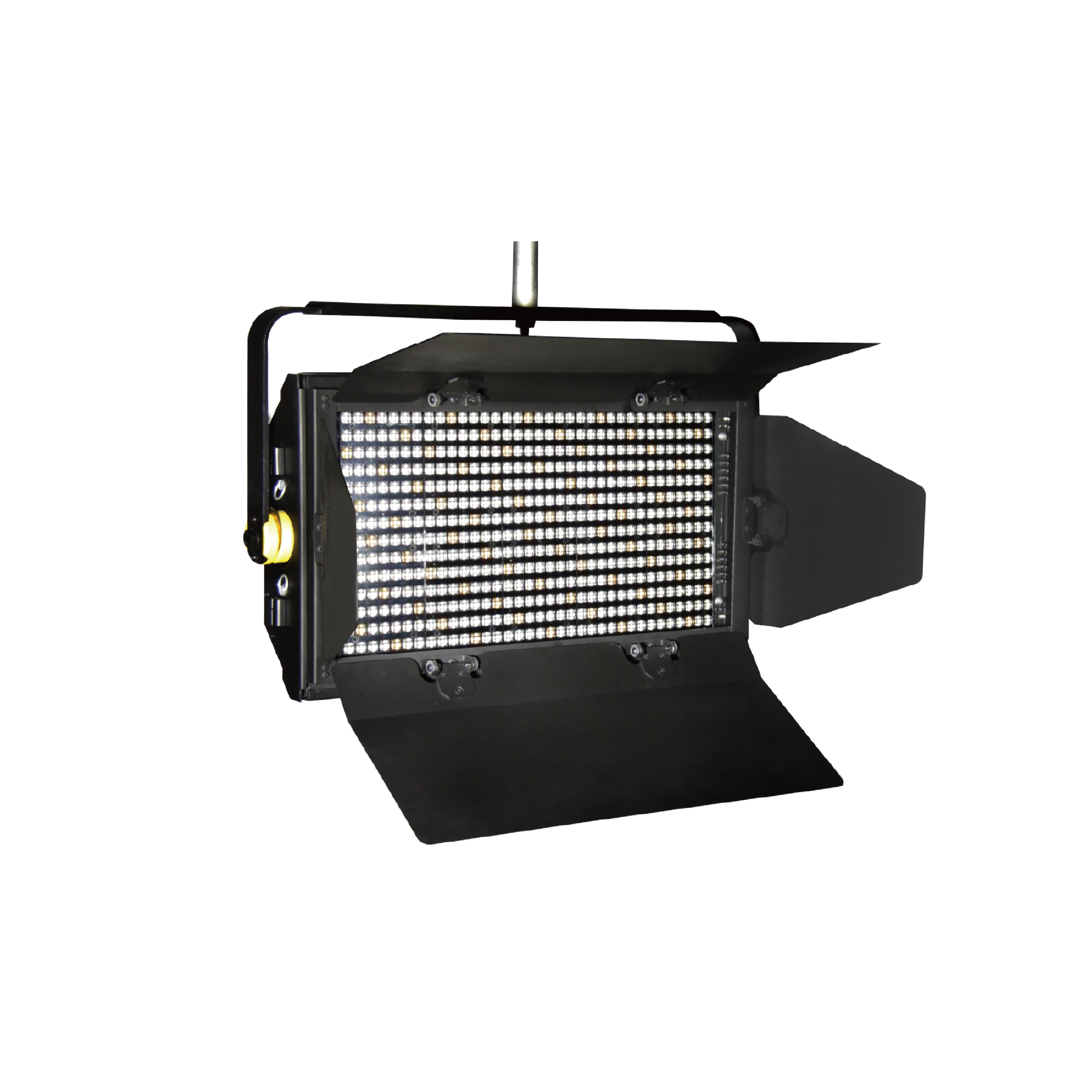

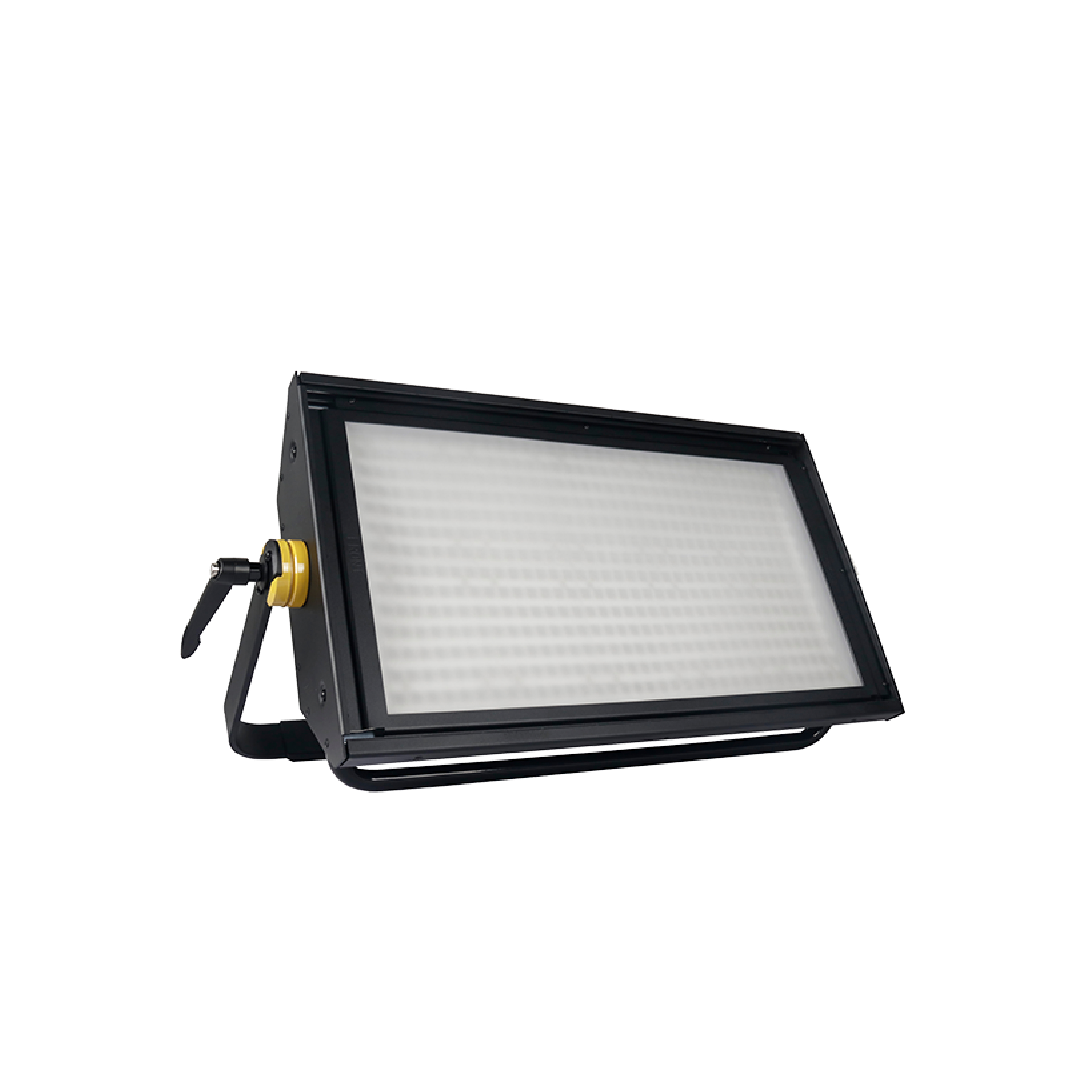

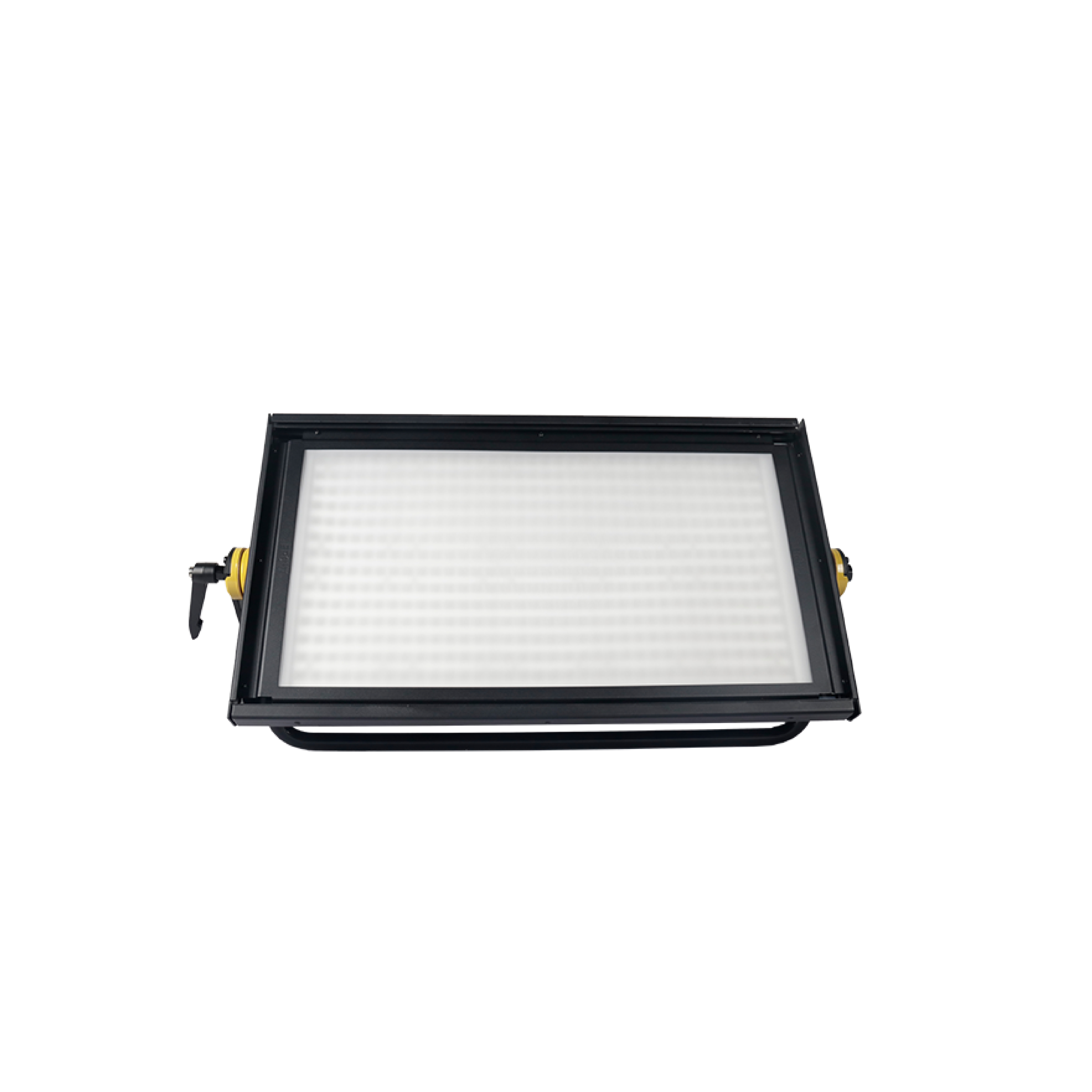

Live-action film

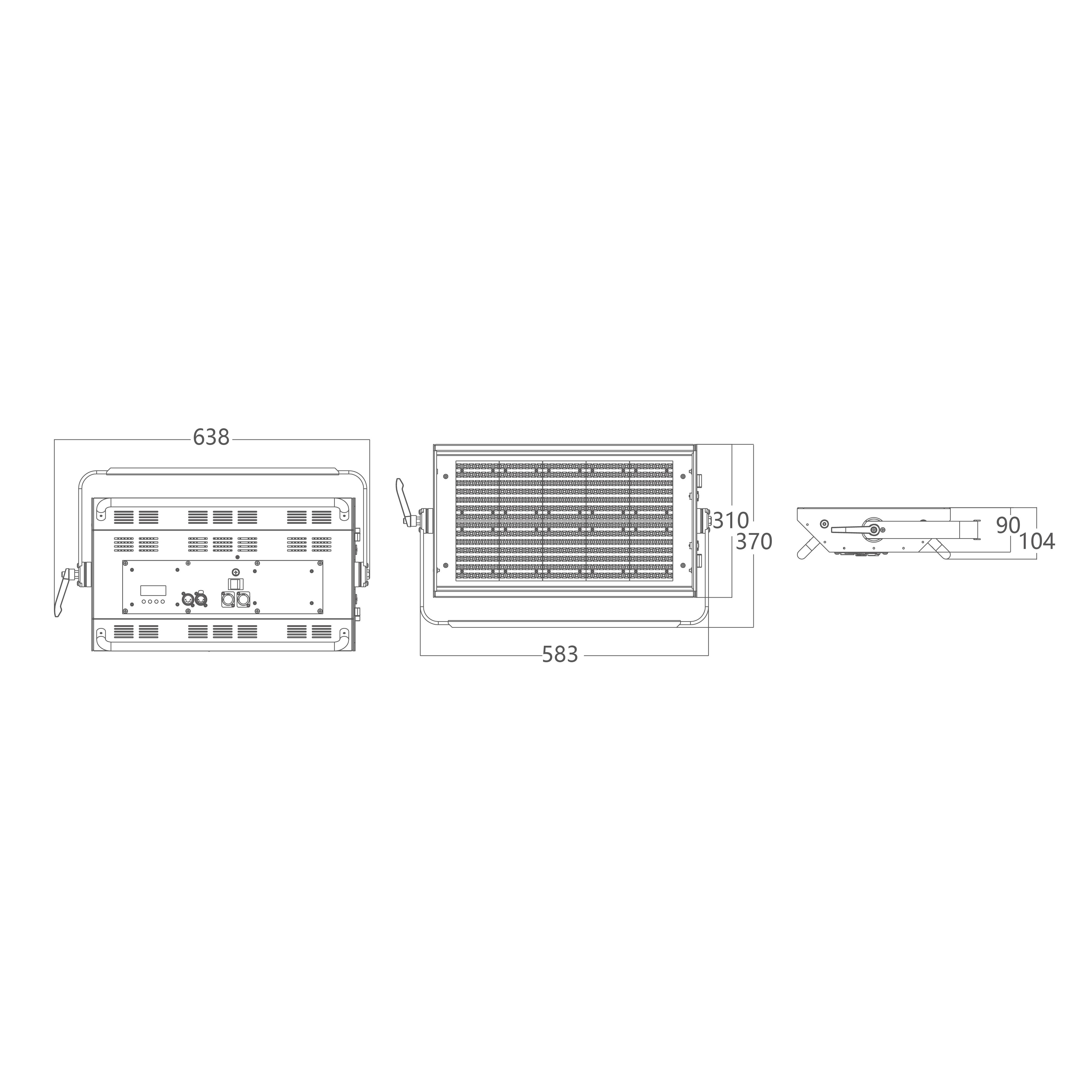

Dimension drawing

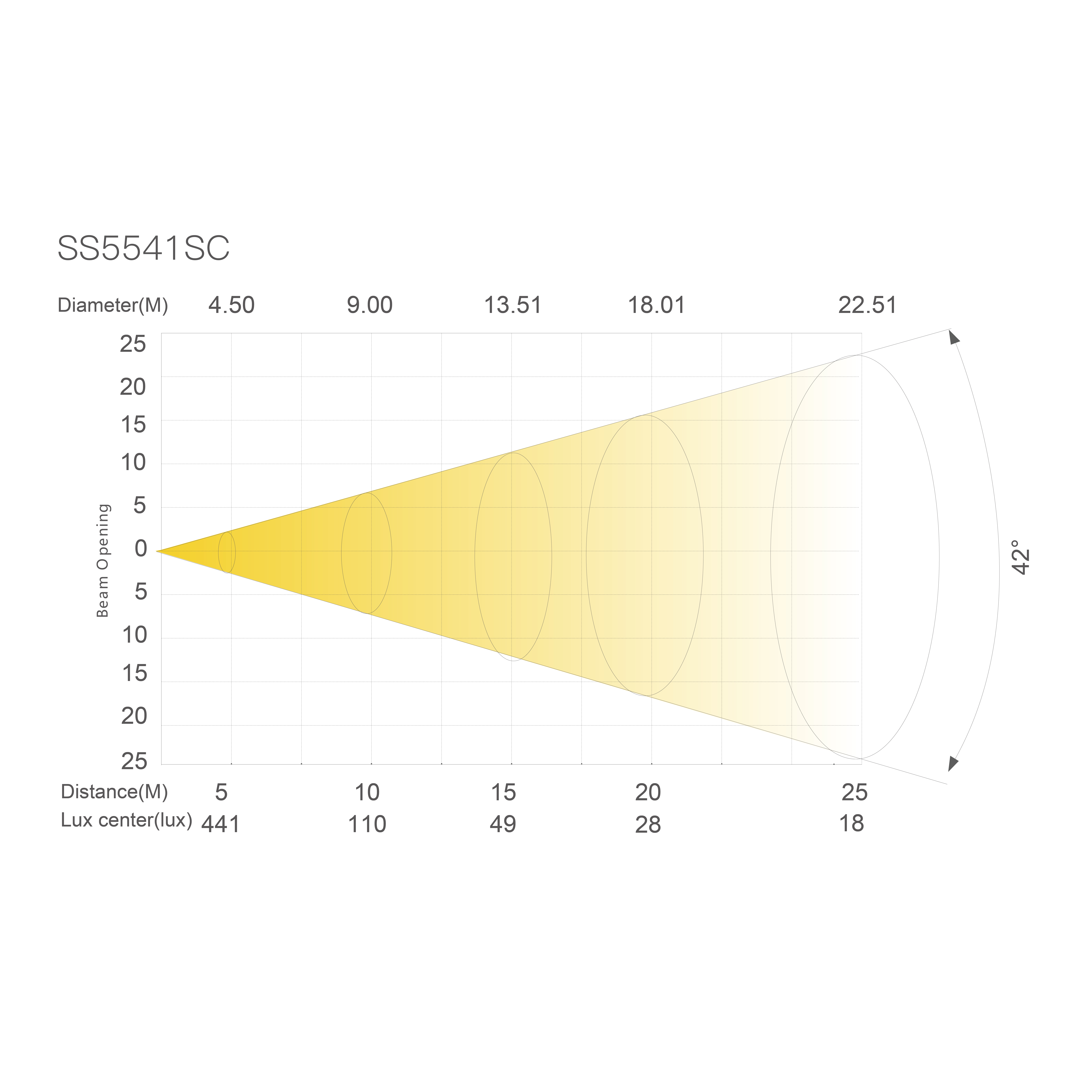

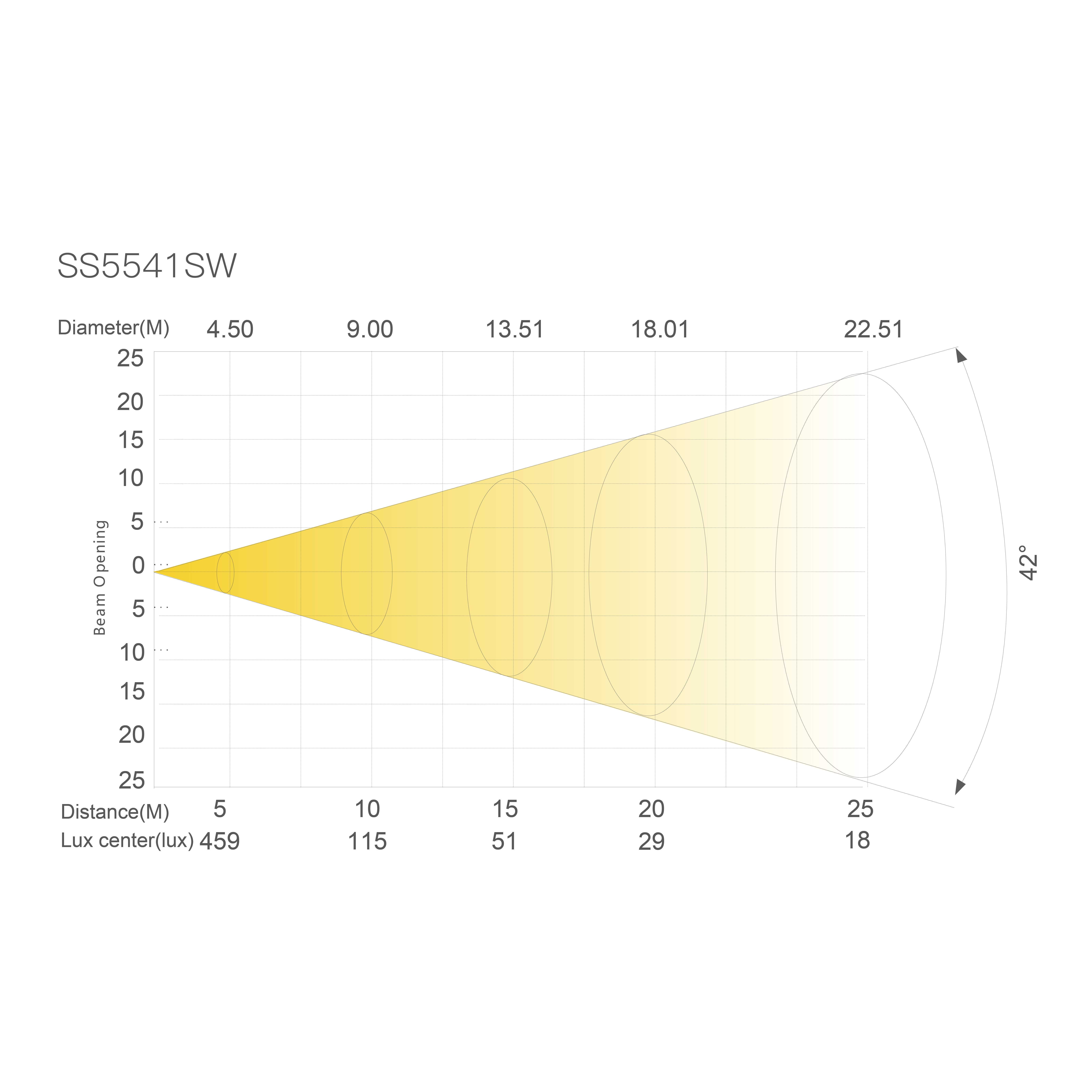

Illuminance diagram
DMX white
The PLANO/SDO MK2 bring to soft lighting a performance and color quality not previously seen withLED technology. Specially designed using the ideal tool for any studio lighting set. Oering ne coloicalibration and available in Tungsten or Davlight equivalent versions, the PLANO allows for areaexibility regardless of the subject matter.
/upload/images/product/20250918/17581655061946076.png
光源信息
WW*490PCS CW*490PCS
/upload/images/product/20250918/17581655067841667.png
光通量
11960lm 11471lm
/upload/images/product/20250918/17581655065229154.png
光学角度
42°
/upload/images/product/20250918/17581655069356224.png
显色指数
97
/upload/images/product/20250918/17581655061511821.png
重量
7kg
/upload/images/product/20250918/17581655066786928.png
功率
150W
Appearance
Size

638x104x370mm

Casing

Extruded aluminum

Weight 7kg
ColorBlack


Control System
Dimmer

0-100%16Bit

Cooling

Direct Convection

ControlDMX512
Con PersonalityUNO(1CHS)
DisplayOn board Control


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max.Power

150W

Power ConnectionPower in and out
DMX XLR3pin 5pin in and out


Optical system
Light source

WW*490PCS/CW*490PCS

Angle

42°

Luminous flux

11960lm/11417lm

CCT

3200K、5600K

CRI/CQS/TLCI
97/90/97


Work Environment
Ambient Temp

0°C-45°C

IP RatedIP 20
CertificationCE、MET
