Live-action film

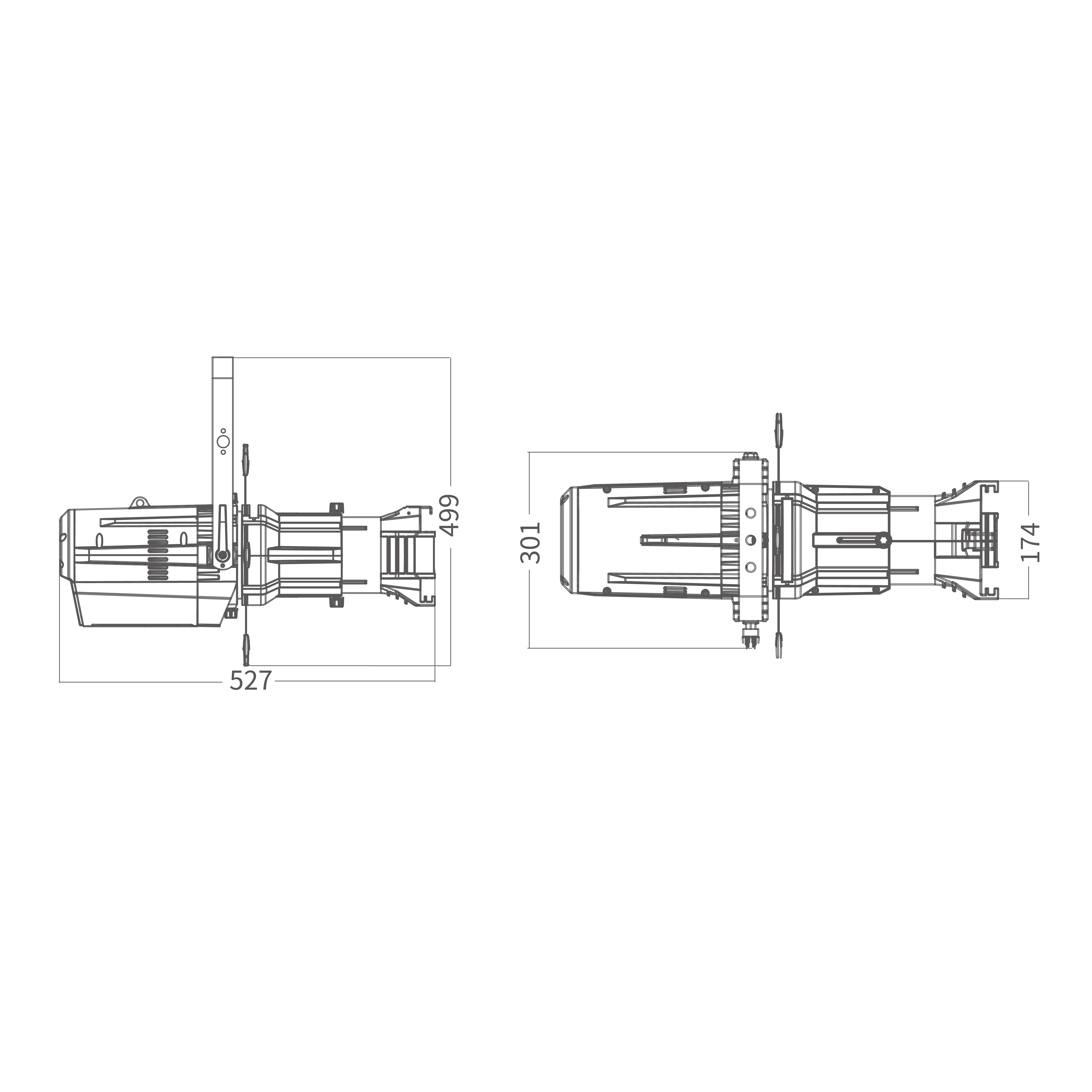

Dimension drawing

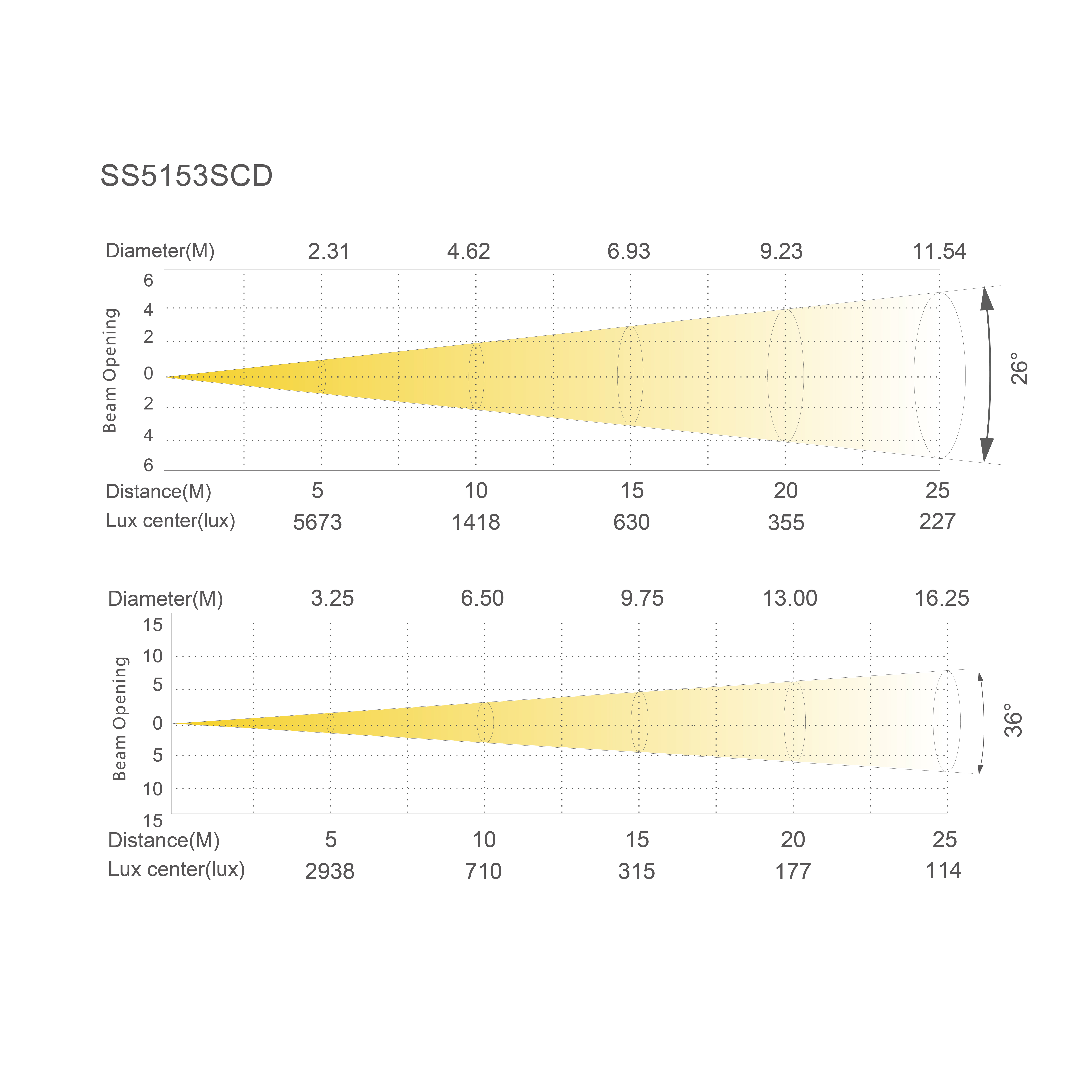

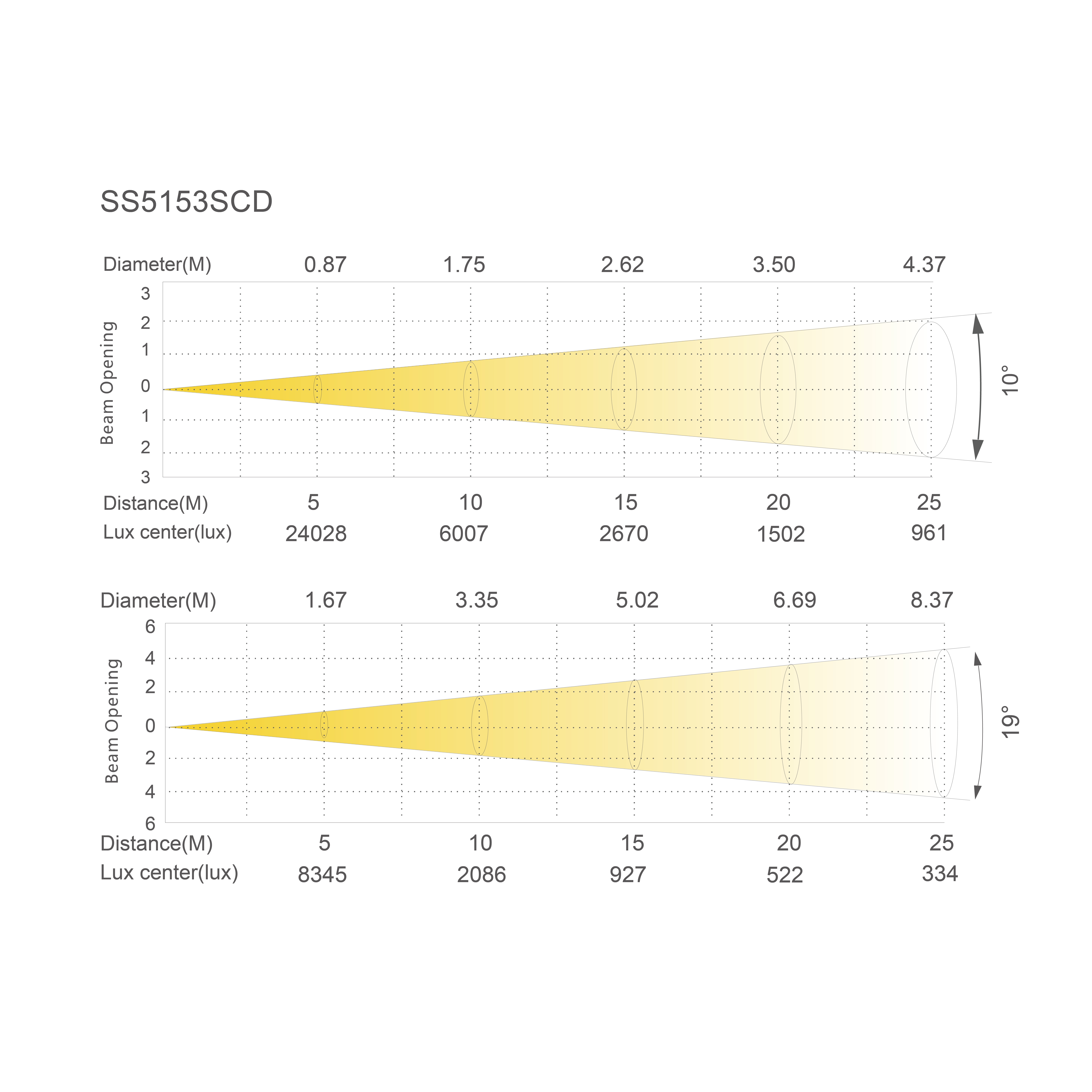

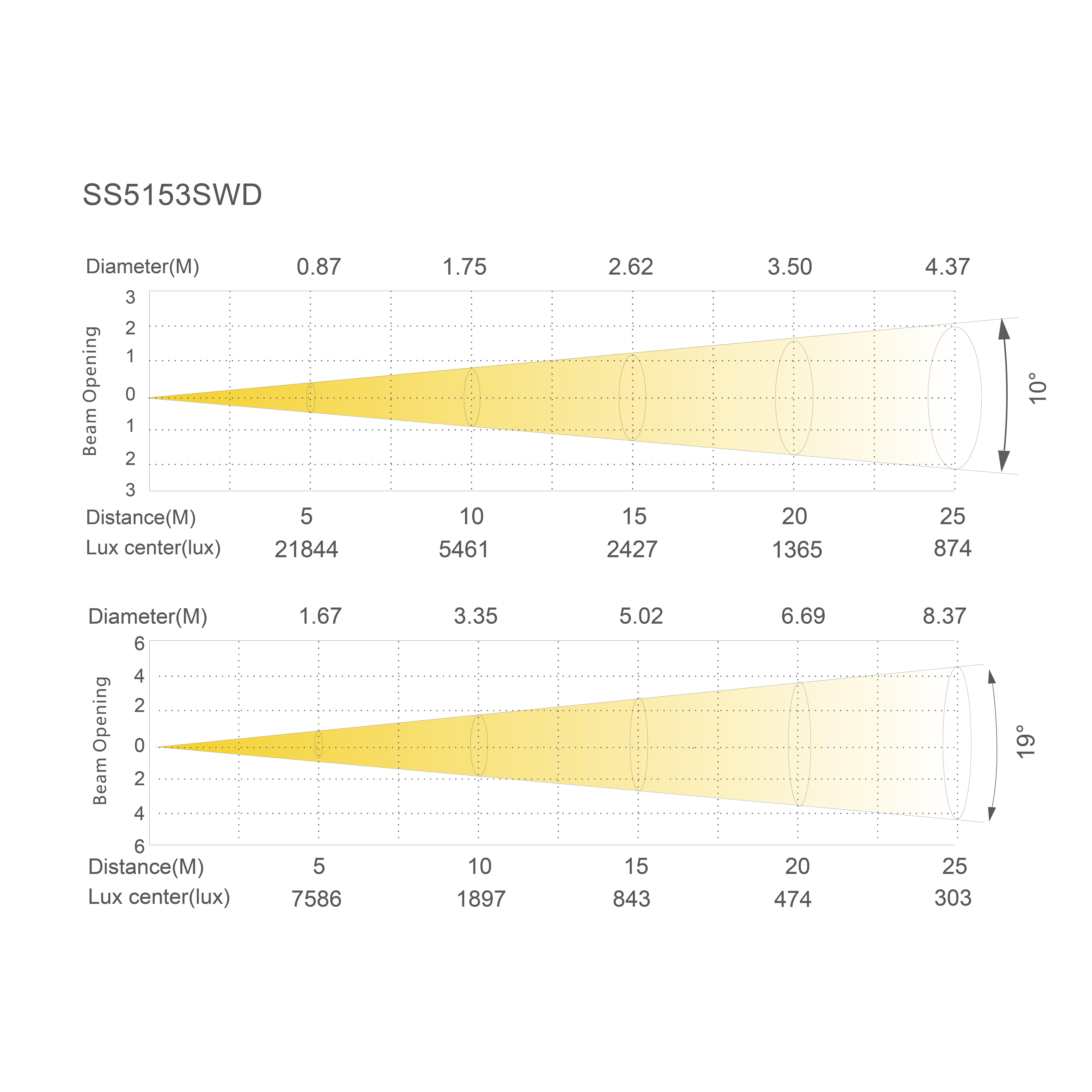

Illuminance diagram
Intelligent dimmer

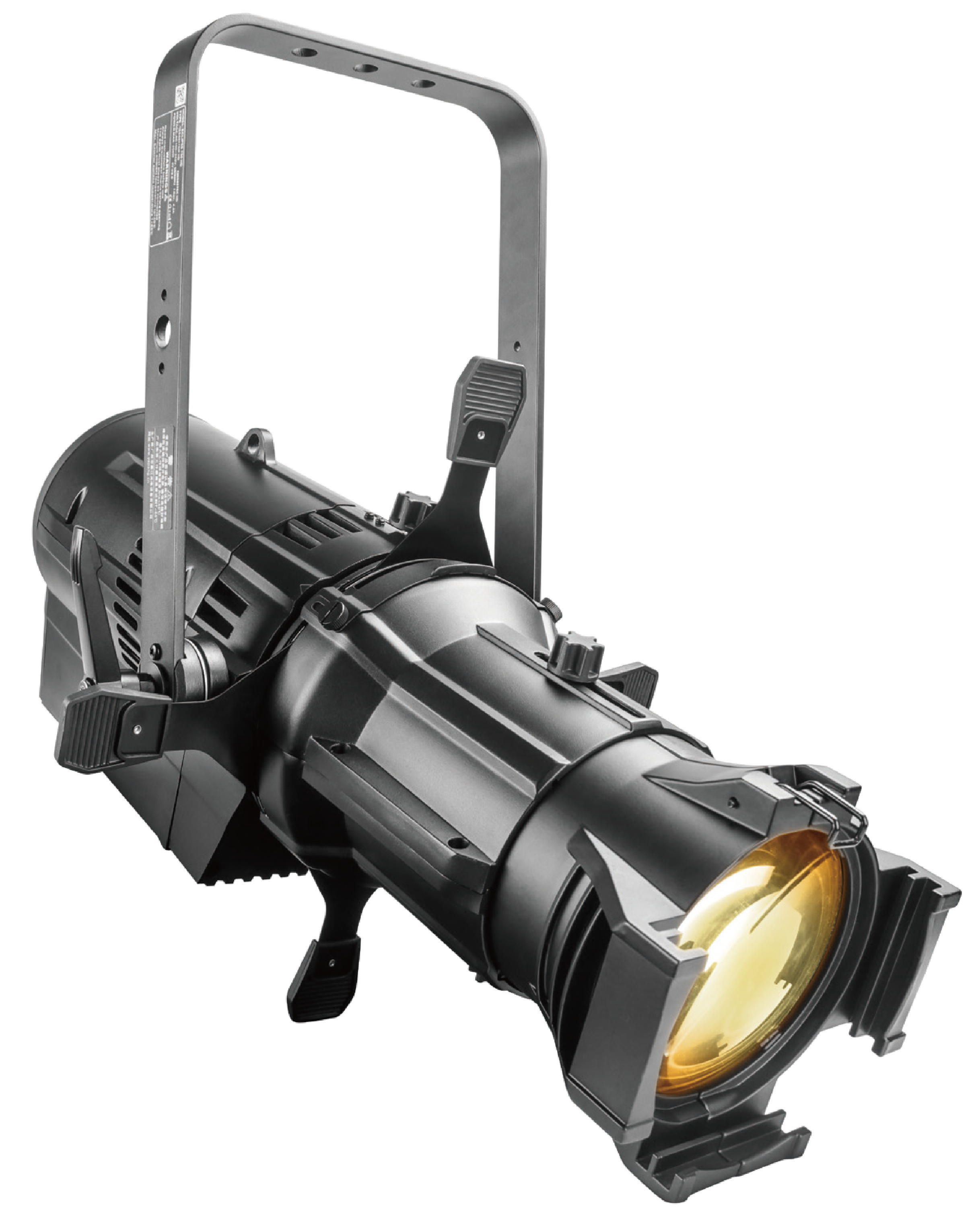

ECLIPSE 250 SD is specifically designed for replacing the traditional lamp Ellipsoidal, which can completely support for dimmer pack control, 0-100% dimming, dimming smooth, no shading. It can truly replace the traditional 750W Ellipsoidal. Intelligent power management system can automatically recognize the DMX 512 Protocol and SCR. Intelligent dimmer and zoom knob. It has uniform spot and pure color temperature. Its CRI>95, with compact structure, professional industrial design, it is truly energy saving fixture.
/upload/images/product/20250918/17581639952663241.png
Light source
300W
/upload/images/product/20250918/17581639951011446.png
Luminous flux
7582lm
/upload/images/product/20250918/17581639954947392.png
Angle
5°/10°/14°/19°/26°/36° /50°/15-30°/25-50°
/upload/images/product/20250918/17581639954348083.png
CRI/TLCI/CQS
CRI:98 TLCI:98 CQS:96
/upload/images/product/20250918/17581639955304883.png
Weight
8kg
/upload/images/product/20250918/17581639959991770.png
Max. Power
240W
Optical system

SS5153SWD


Light source

300W

CCT

3200K


Angle

5°/10°/14°/19°/26°/36°/50°/15-30°/25-50°

Luminous flux

7582lm


CRI/TLCI/CQS

CRI:98 TLCI:98 CQS:96







SS5153SCD


Light source

300W

CCT

5600K


Angle

5°/10°/14°/19°/26°/36°/50°/15-30°/25-50°

Luminous flux

8923lm


CRI/TLCI/CQS

CRI:96 TLCI:96 CQS:93




Appearance
Size

527x301x499mm

Casing

Die-cast aluminum

Weight

8kg

Color

Black


电气连接
Voltage

100-240VAC,50/60HZ

Max. Power

240W

Power Connection

Power in and out

DMX XLR

DMX in and out


Control System
Dimmer

0-100% 16Bit

Cooling

Forced Convection



Display

On board Control, 0-25Hz Strobe


Control

DMX、RDM、Dimming Pack Control

Con Personality

UNO(1CH)、DOS(2CH)、STD.P(3CH)



Work Environment
Ambient Temp

0℃-45℃

IP Rated

IP20

Certification

CE、MET

Download materials

User manual
  • ED4 specification
    2025-09-18
