Live-action film

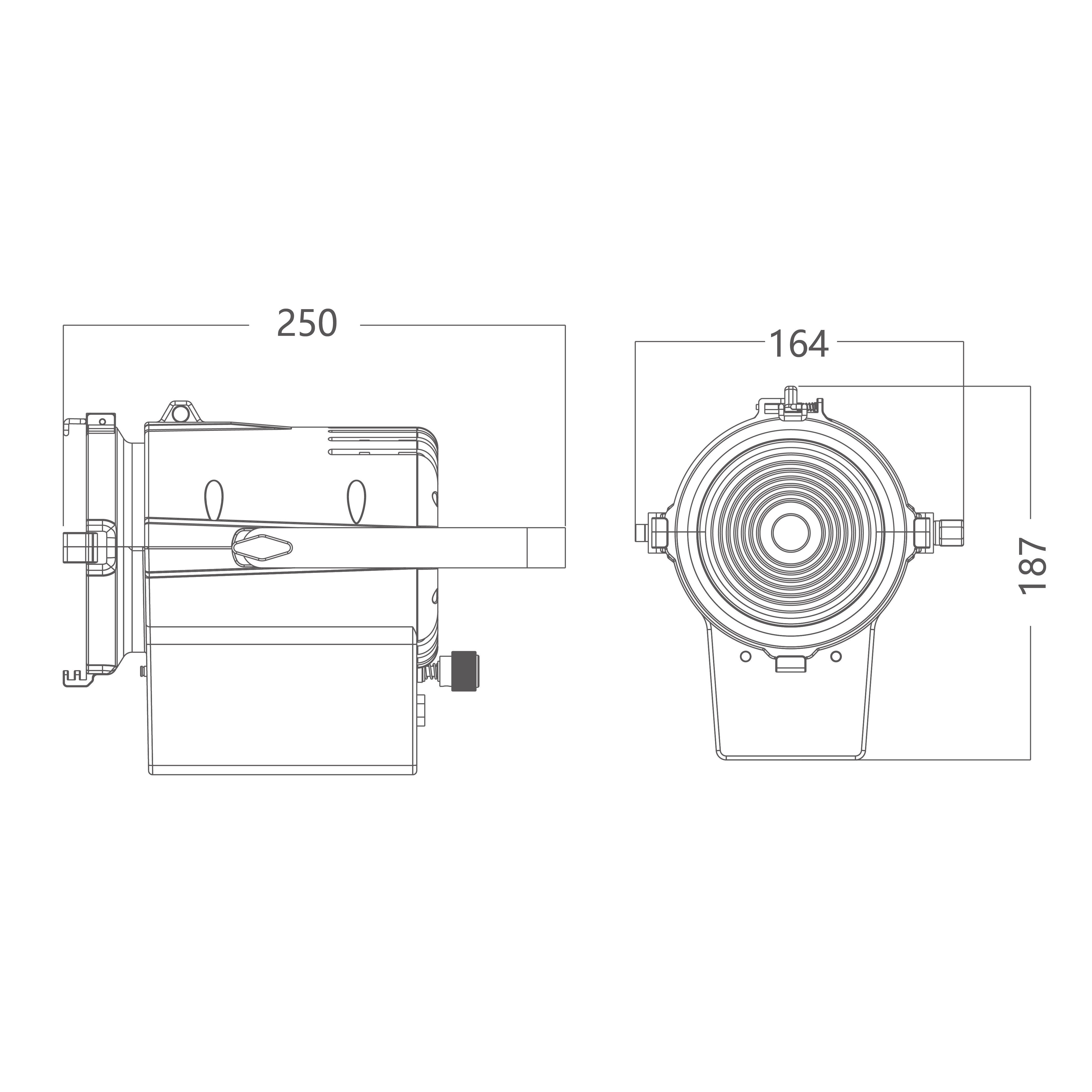

Dimension drawing

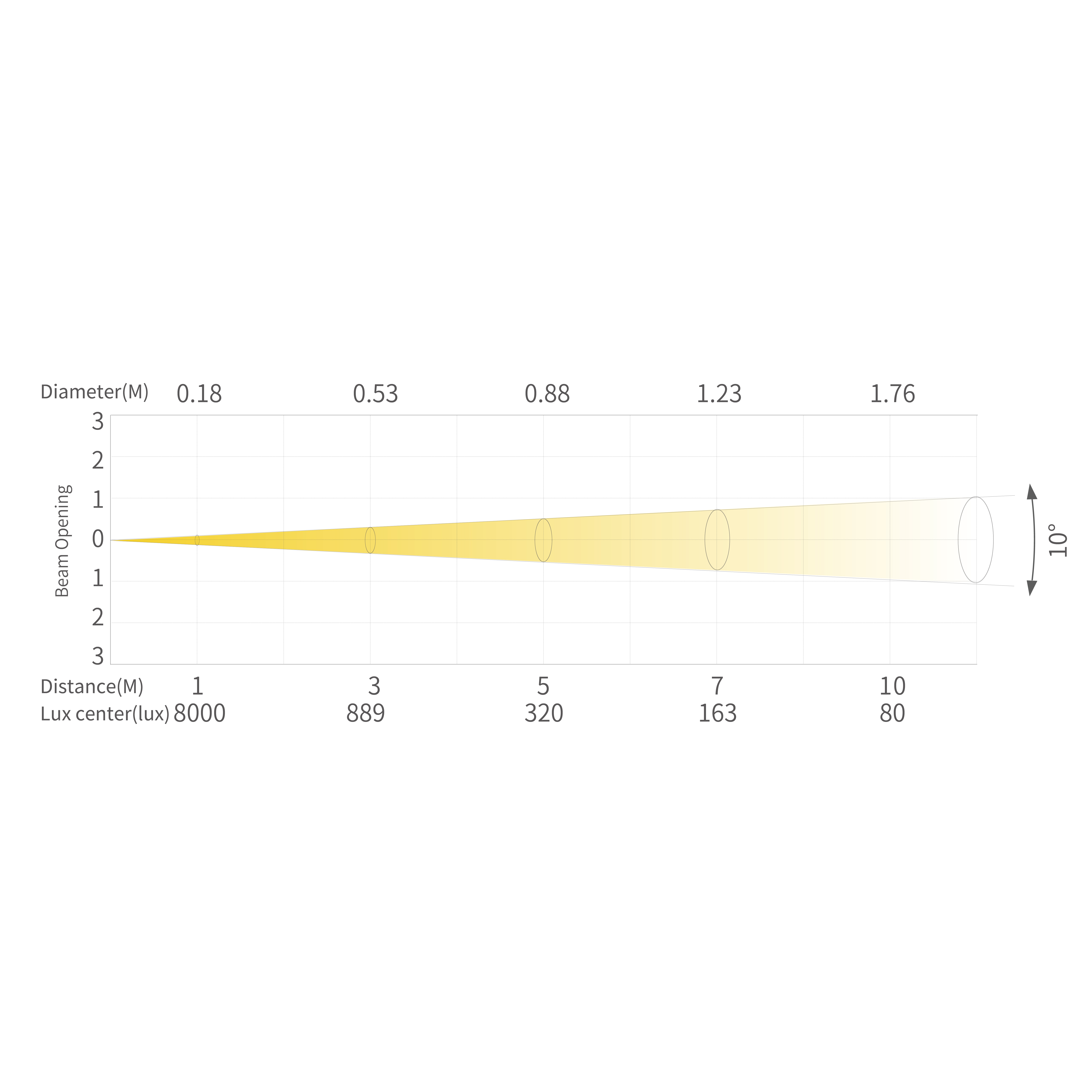

Illuminance diagram
Full color

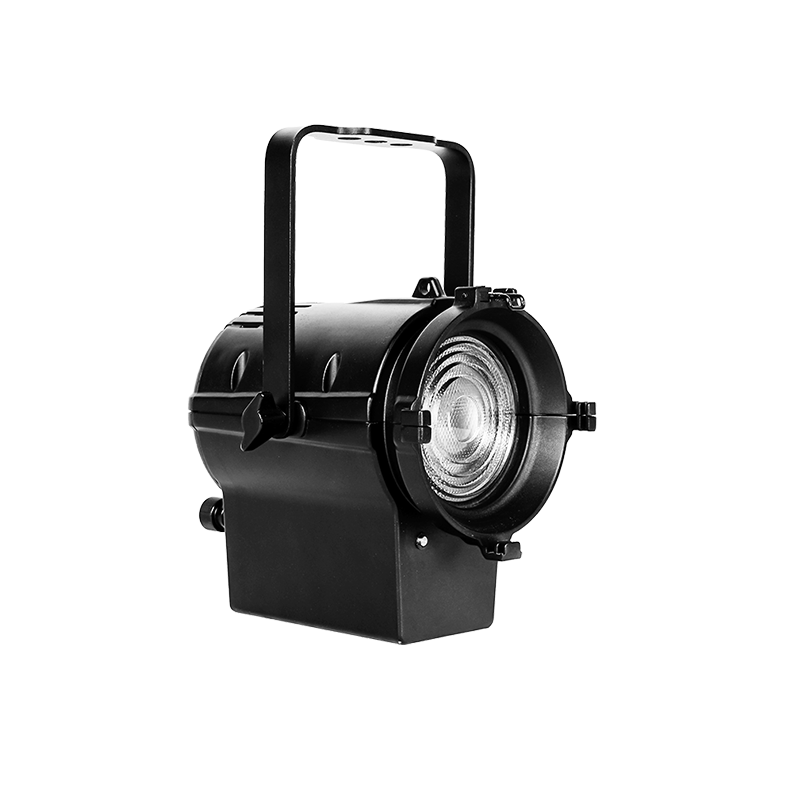

Navigator Full Color Spotlight 50 is a MINI color spotlight, the overall light and small, color temperature 1800-10000K, manual zoom, optical Angle range of 10°-30°. The use of fanless design of natural heat dissipation structure, light structure design is small, easy to use. In terms of control, the international DMX512 control protocol and RDM two-way feedback protocol are adopted. This small power color spotlight is designed for small theatres, studios, exhibition halls, galleries, museums, multi-purpose meeting rooms and other small and medium-sized places.
/upload/images/product/20250918/17581737306008328.png
Light source
40W RGBW
/upload/images/product/20250918/17581737304598533.png
Luminous flux
486lm
/upload/images/product/20250918/17581737304238806.png
Angle
10°-30°
/upload/images/product/20250918/17581737307867211.png
Weight
2.4kg
/upload/images/product/20250918/17581737308438922.png
Max. Power
40W
Optical system
Light source

40W RGBW

CCT

1800K-10000K


Angle

10°-30°

Luminous flux

486lm


Appearance
Size

250x164x187mm

Casing

Die-cast aluminum

Weight

2.4kg

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power

40W

Power Connection

Power in

Signal socket

Signal line split in two, input/output


Control System
Dimmer

0-100%16Bit

Cooling

Forced Convection

Functional effect

Display board control static, custom mode,0-25Hz stroboscopic


Control

DMX512、RDM、W-DMX(selectable)

Con Personality

HSIC(7CHS)、SSP(7CHS)、TOUR(11CHS)、TR16(16CHS)




Work Environment
Ambient Temp

0℃-45℃

IP Rated

IP20

Certification

CE、MET
