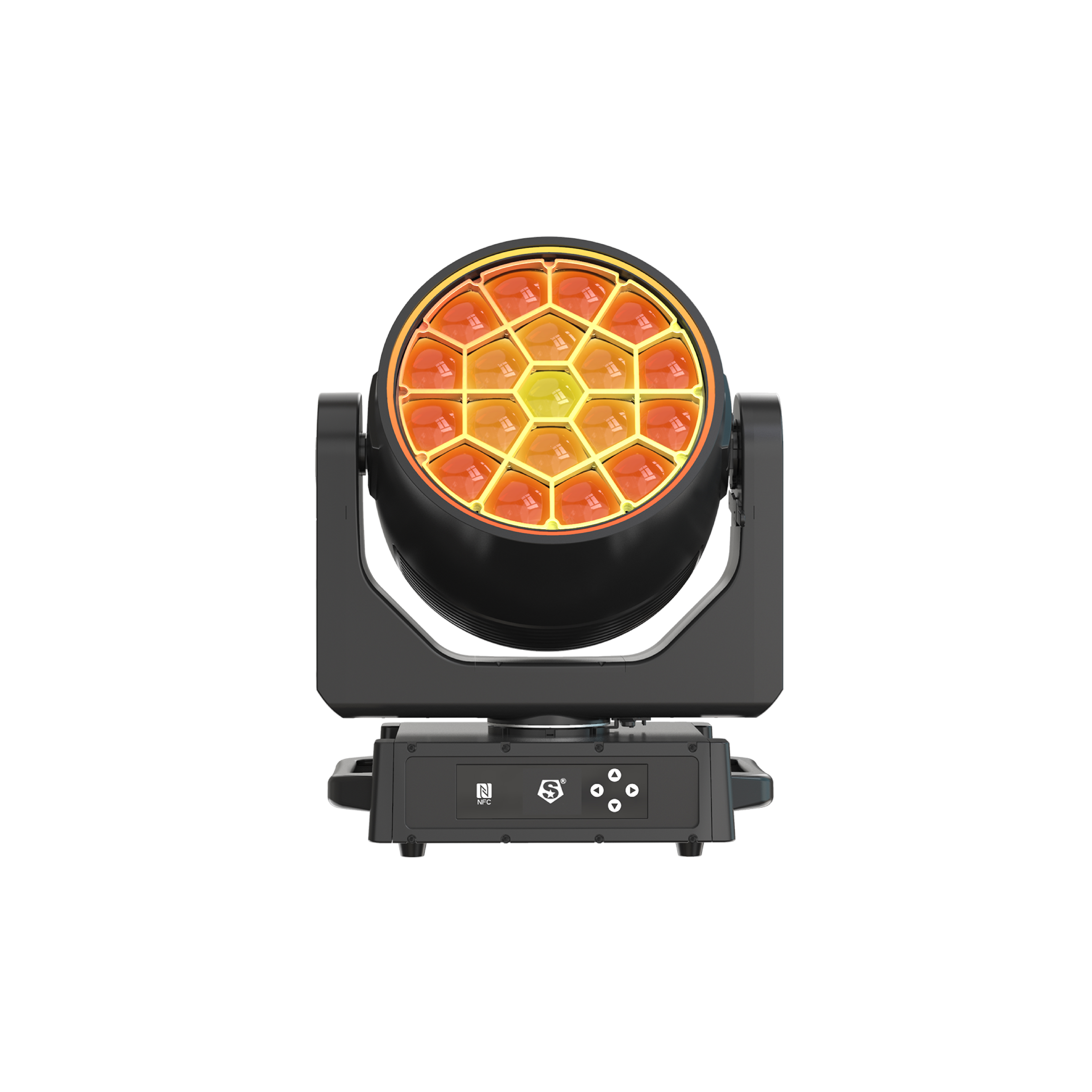

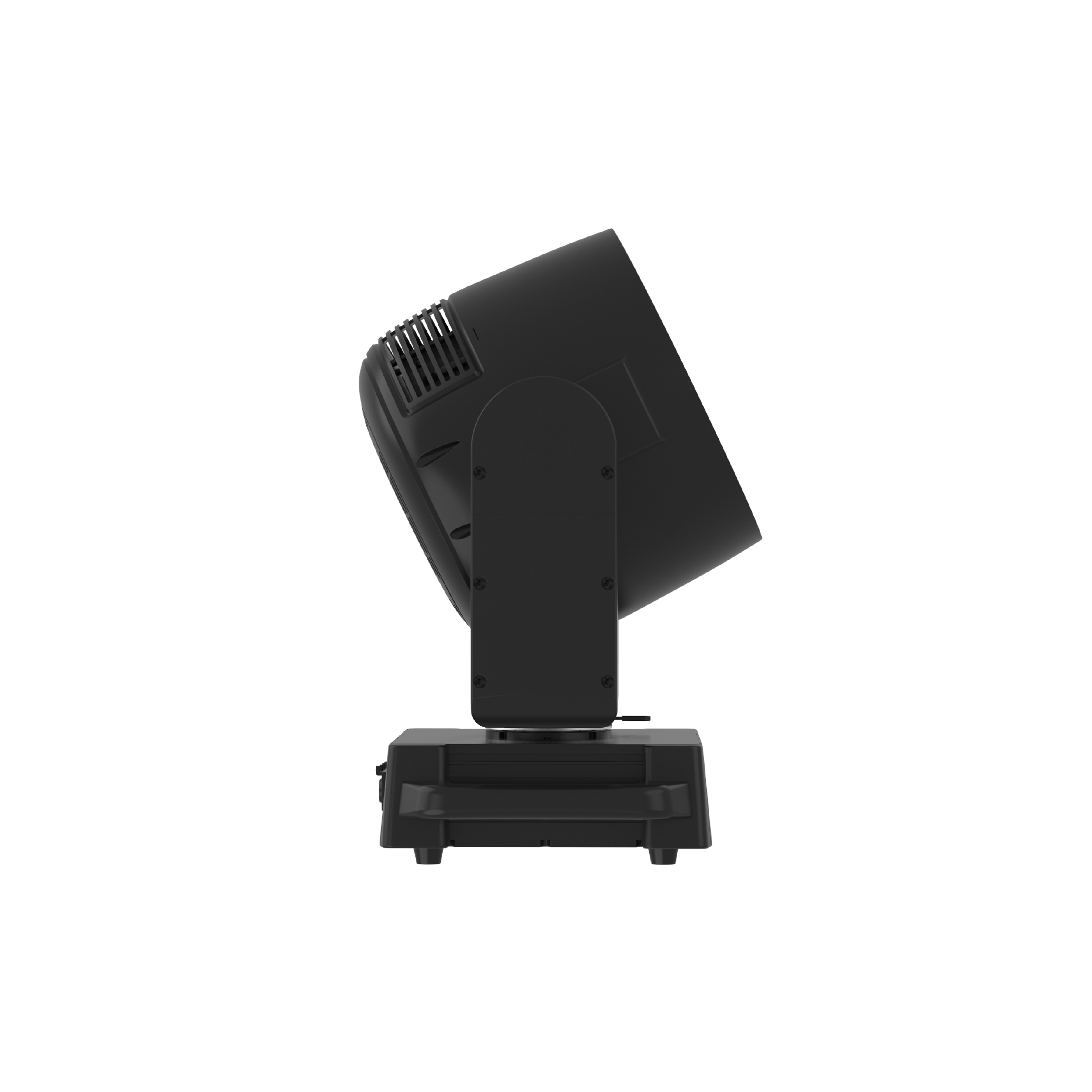

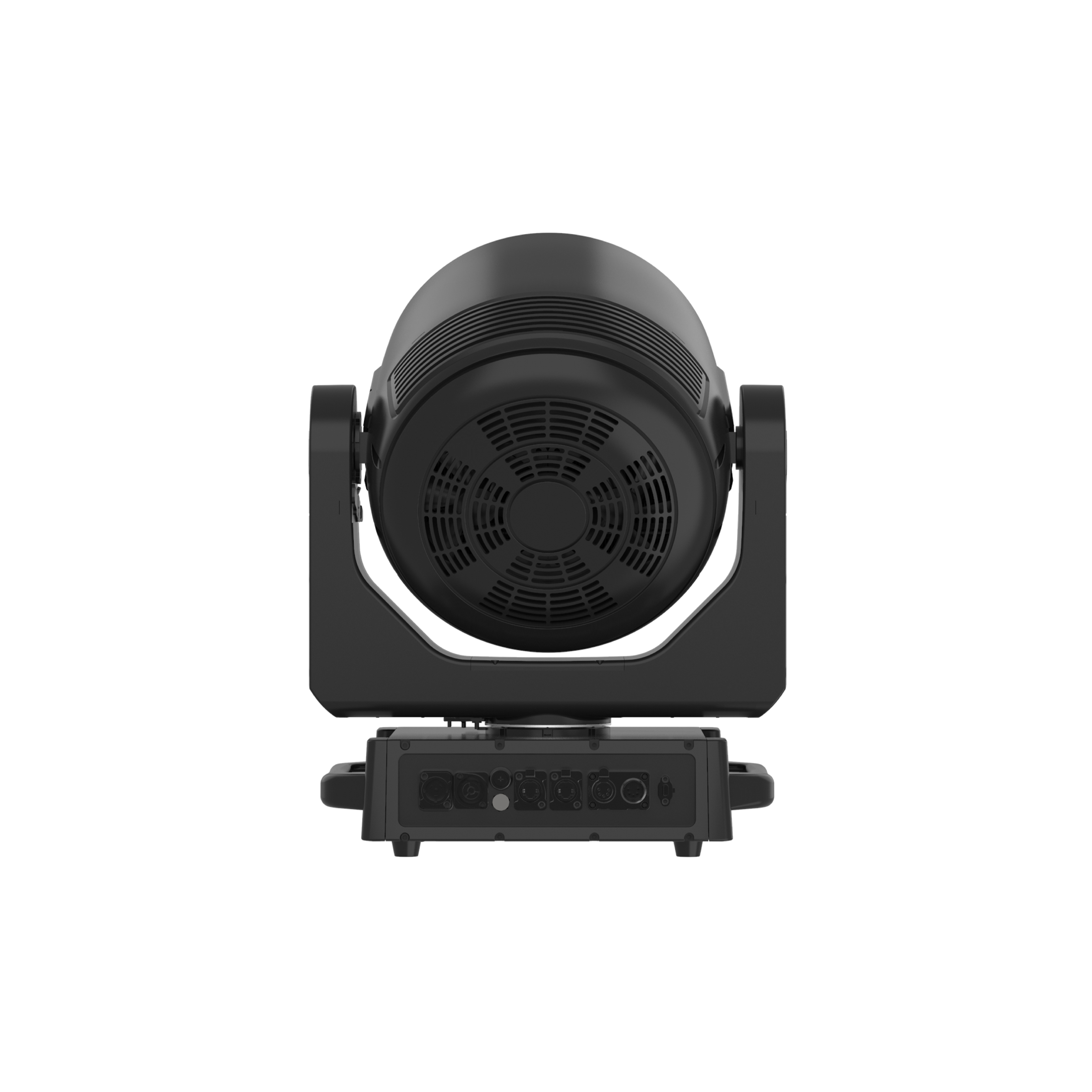

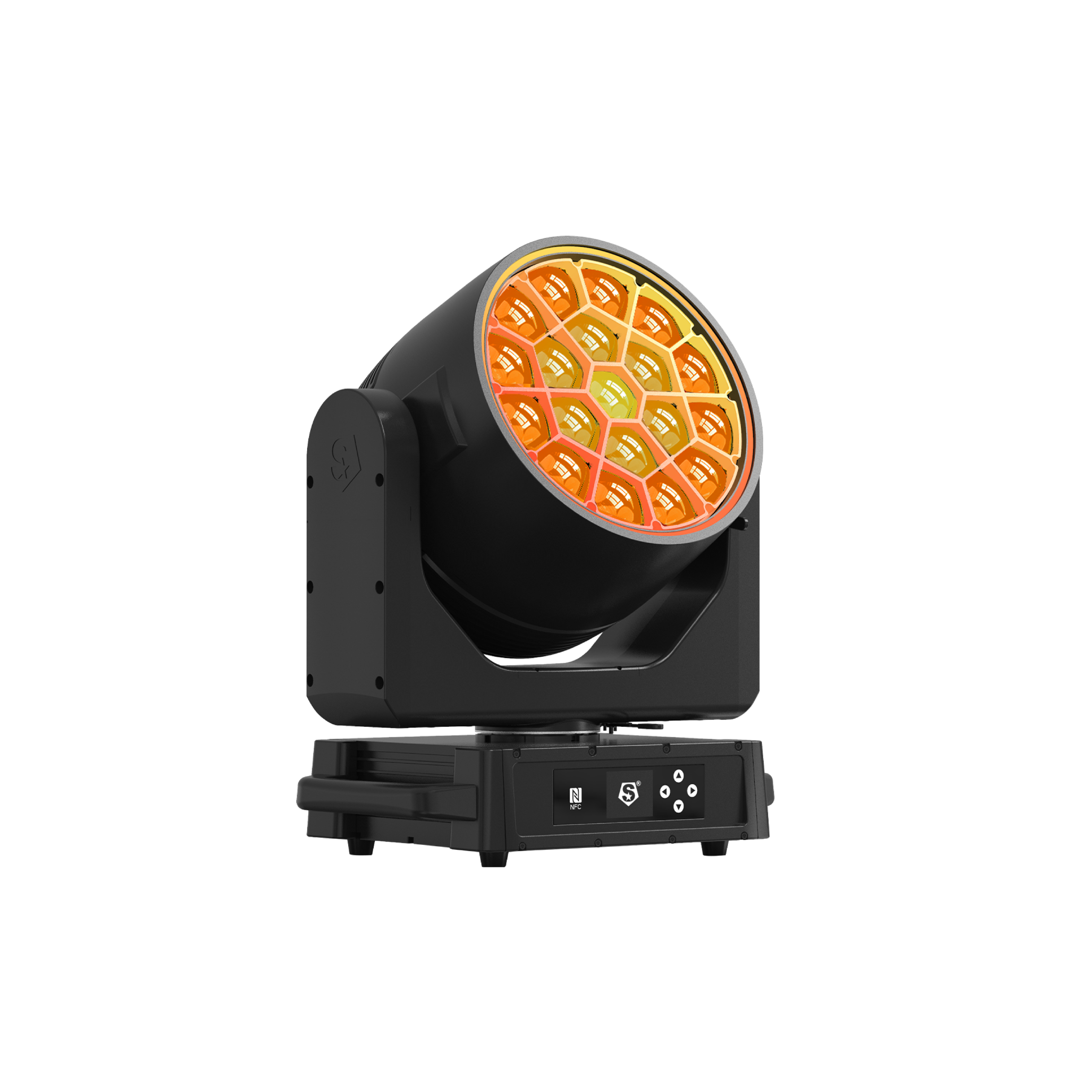

Live-action film

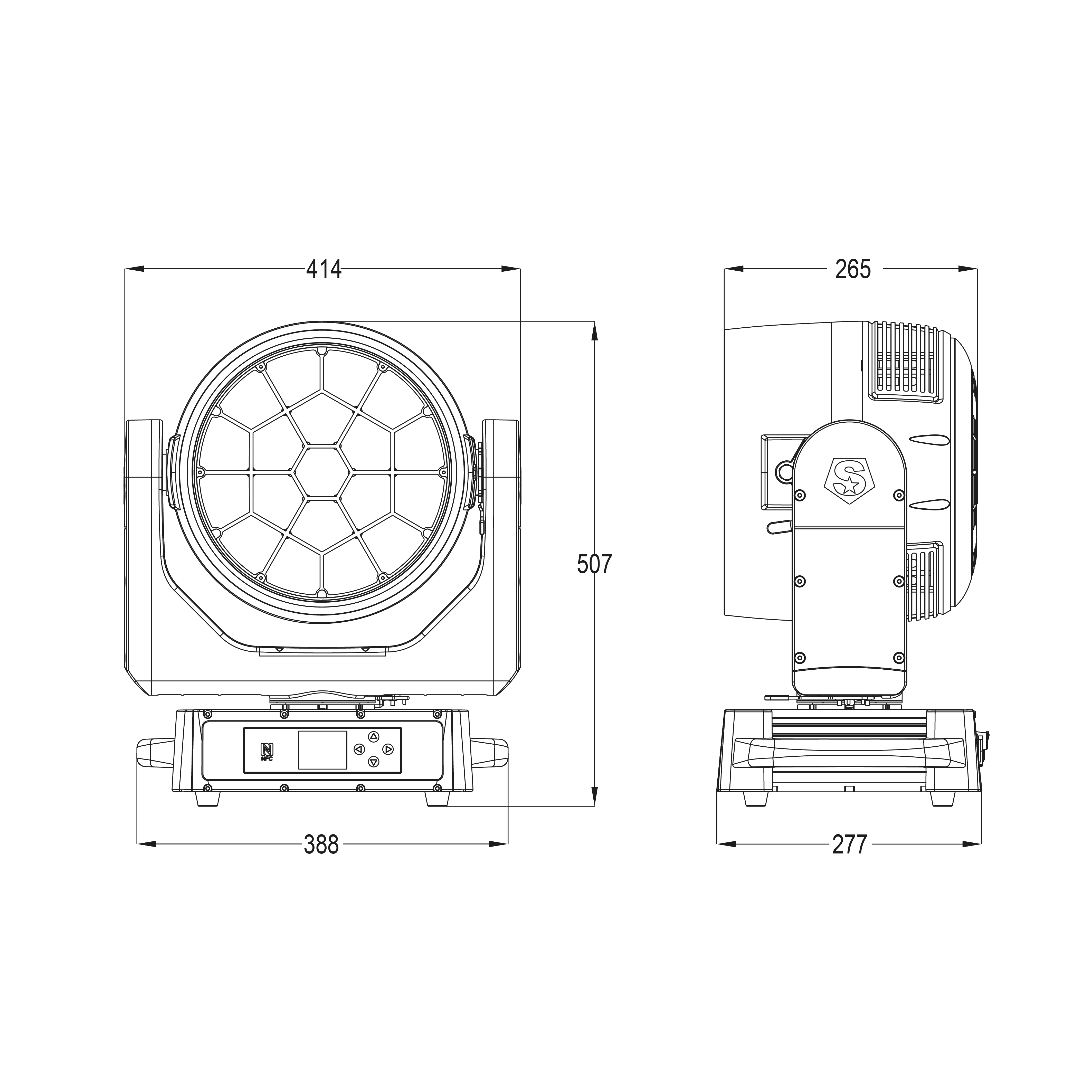

Dimension drawing

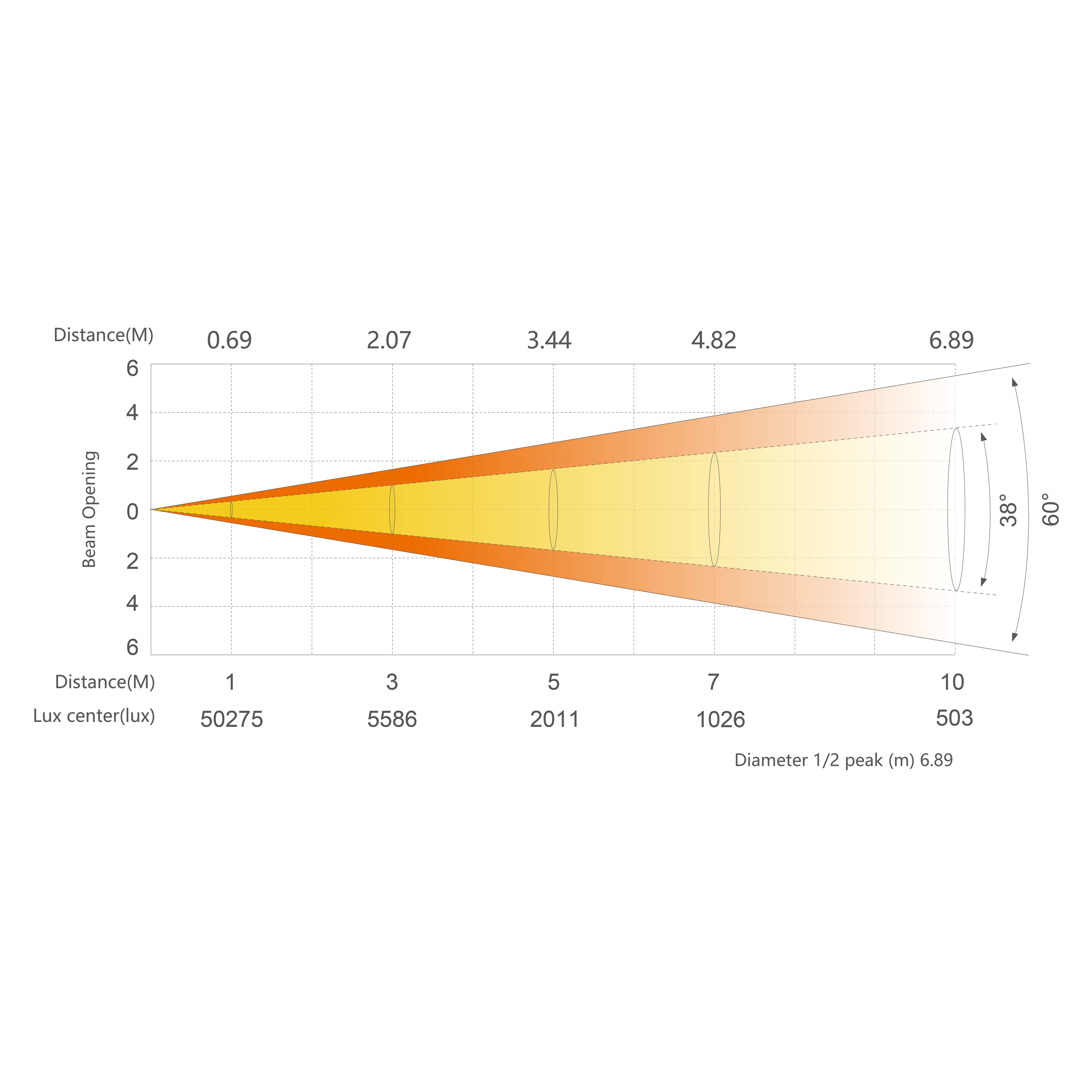

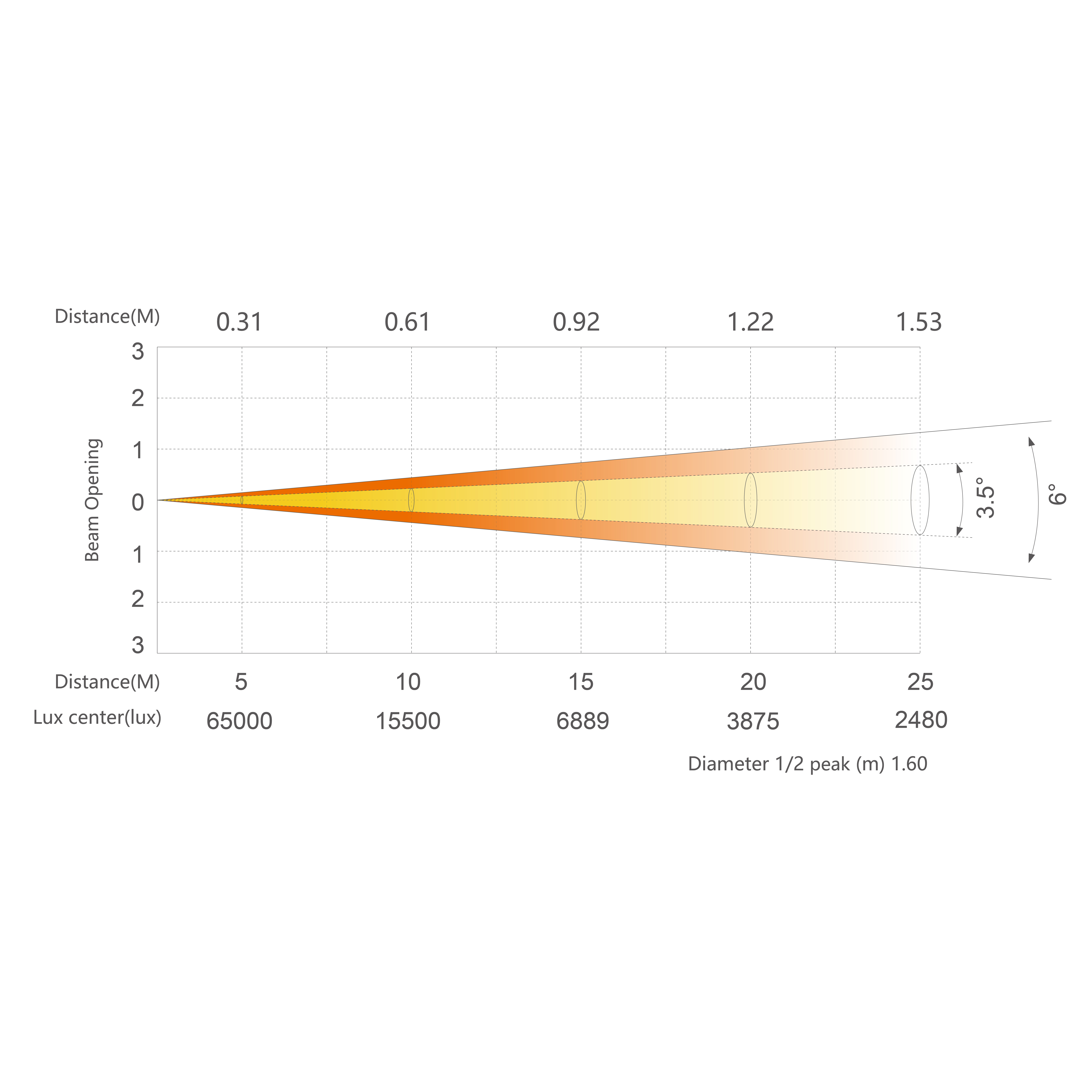

Illuminance diagram
Moving wash
NW8-X is a new genertation of excellent moving wash with RGBL LED source,optical Angle 3.5-60", equipped with HSlC intelligent color mixing system, can quickly modulate any desired color, can be continuously adjusted between 1800K to 10000K, pixel control function, can achieve gorgeous dynamic effect, high-precision and high-tech CCS inteligent color management system for auto color calibration, it is an ideal choice for concerts. touring show, events, as well as rental markets.
/upload/images/product/20250917/17580984563104166.png
Light source
60×19pcs RGBL LED+LED ring
/upload/images/product/20250917/17580984562152592.png
Luminous fux
13000lm
/upload/images/product/20250917/17580984567408071.png
Angle
3.5°-60°
/upload/images/product/20250917/17580984562295919.png
Weight
21.55KG
/upload/images/product/20250917/17580984569780965.png
Max Power
1000W
Optical system
Light source

60×19pcs  RGBL LED+LED ring

Angle

3.5°-60°

Luminous fux

13000lm

llluminance

5M@65000 1x(3.5°)


Appearance
Size

414×277×507mm

Weight

21.55KG

Casing

 Magnalium and Die-cast

Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max Power

1000W

Power Connection

power in and out

Signal socket

3pin or 5pin in and out , RJ45 in and out,USB-C


Control System
PanTit rotation

Infinite Pan'Tit 220'(8-16bit)

Dimmer

0-100% 24B1

CoolingForced Canvection
Display

On Board Cantrol, Custom Mode. 0-25Hz Strobe

Control

DMX512、RDM、ARTNET、SACN,

BT、NFC、W-DMX(optional)

Con personality

HSIC(28CH)/SSP(26CH)/TOUR(33CH)/
TR16(37CH)/CMY(32CH)/PIXEL(102CH)


Work Environment
Ambient Temp

-20℃-45℃

IP Rated

IP66

Certification

CE

Download materials

Product lamp library
  • NW8-X MA2
    2025-09-18
    Down
User manual
  • NW8-X specification
    2025-09-18
    Down

Gain a deeper understanding
