PLUTO 8000 WBX is a new generation of RGBL 4 in 1 moving head wash light with excellent color
mixing, Zoom range 3.5°-60°，comes with HSIC color mixing systerm, can pick up color in a simple and
easy way, CCT 1800k-10000k, with 3-section ring control for LEDs to achieve brilliant dynamic effetcs,
intelligent CCS- color consistency system (Yajiang patent), keep the color consistently in different
batches for each model. Ideal tool for all the applications.
Light source
19*40W RGBL+RGB Ring
Luminous flux
9545lm
angle
Beam angle：3.5-38°
Field angle：6-60°
Weight
14KG
Max. Power
720W
Optical system
Light source
19*40W RGBL+RGB Ring
Beam angle
3.5-38°
Field angle
6-60°
Luminous flux
9545lm
Appearance

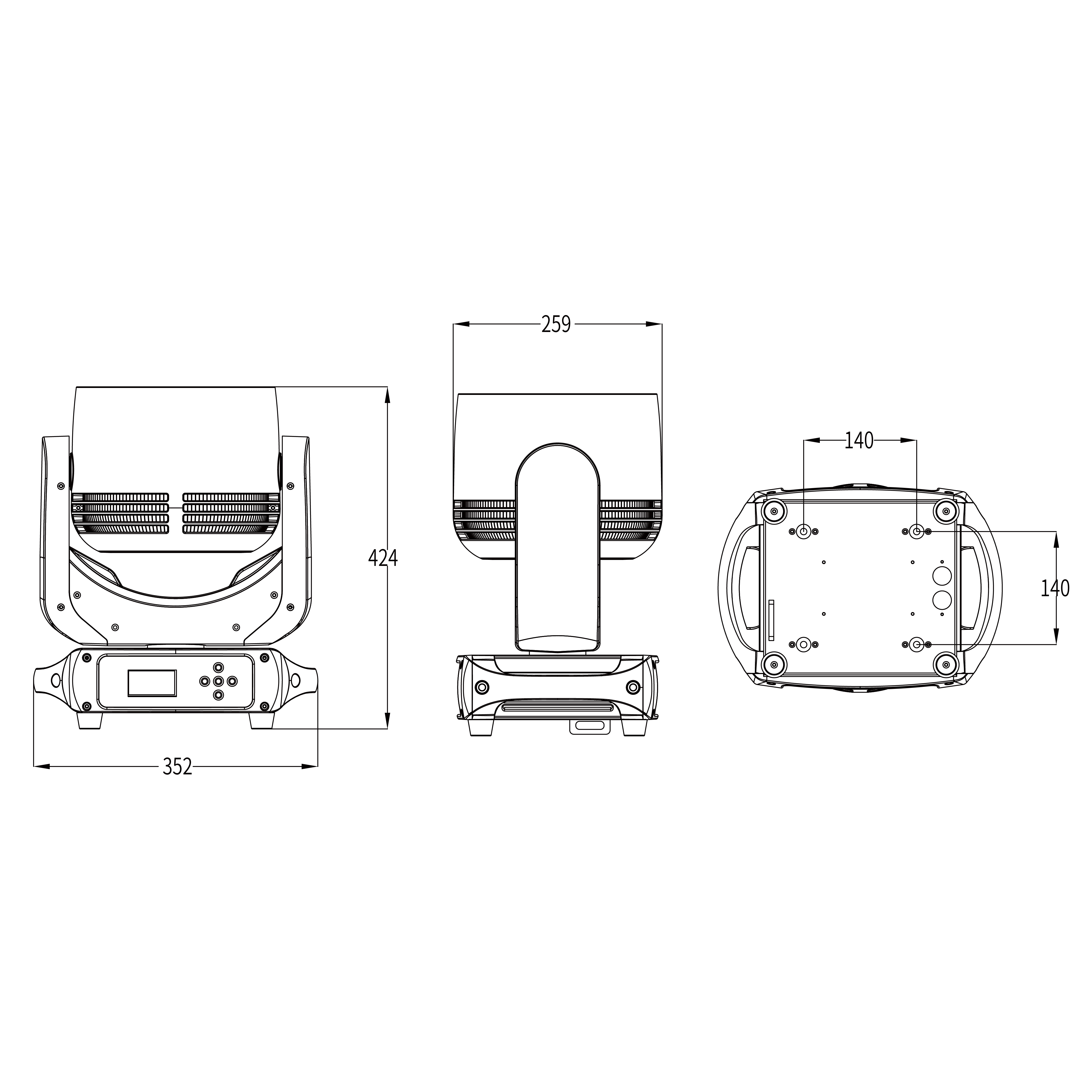

Size
352X259X424mm
Casing
Flame -retardant plastic（V0）
Weight
14KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60HZ
Max. Power
720W
Power Connection
Power in
Signal socket
3pin or 5pin in and out，USB-C
Control System
Pan/Tilt rotation
540°/220°(8-16bit)
Dimmer
0-100%16Bit
Cooling
Forced Convection
Display
On board Control, Custom Mode, 0-25Hz Strobe
Control
DMX512、RDM、W-DMX（optional）、WIFI、Bluetooth
Con Personality
HSIC/SSP/TOUR/TR16/CMY/ZONE
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
