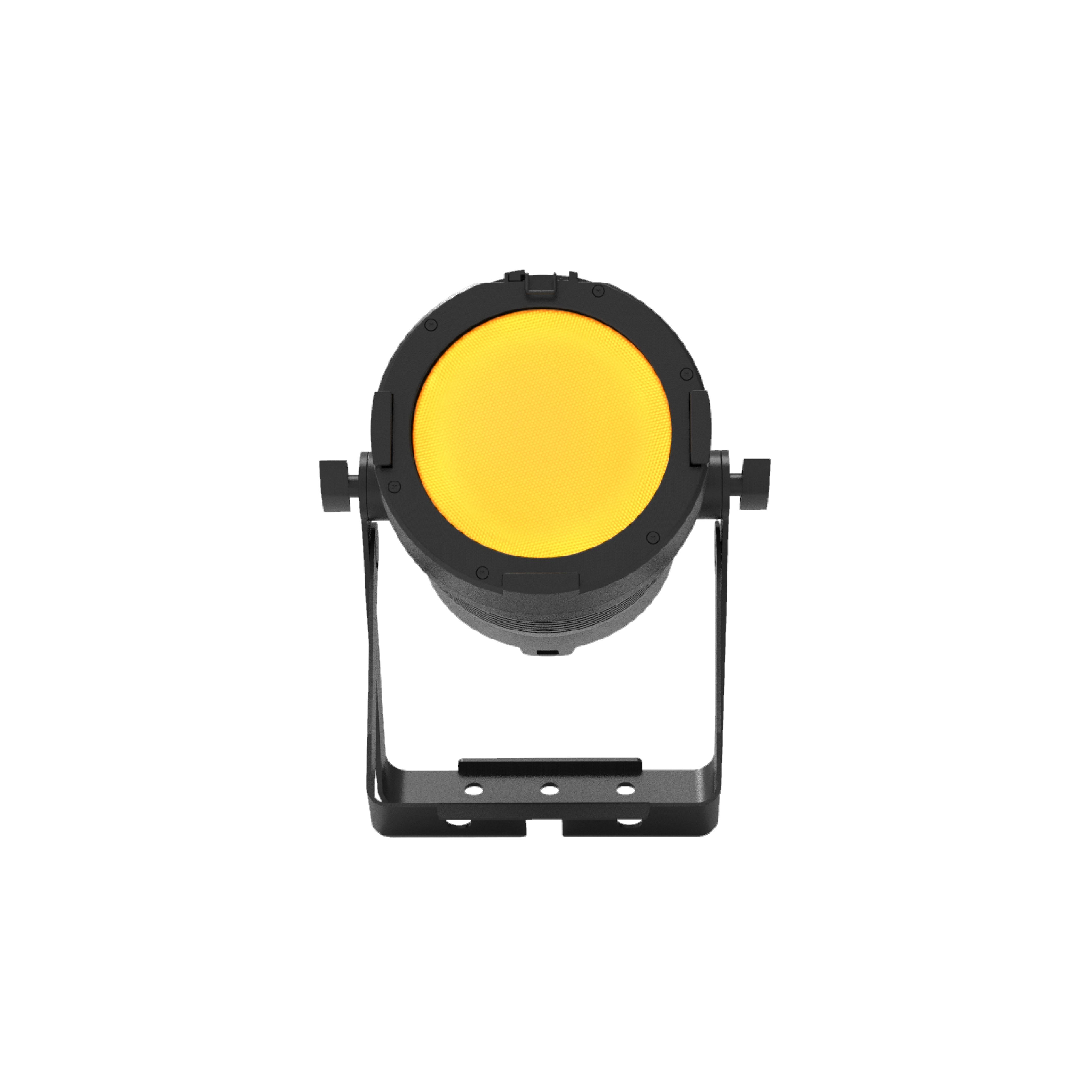

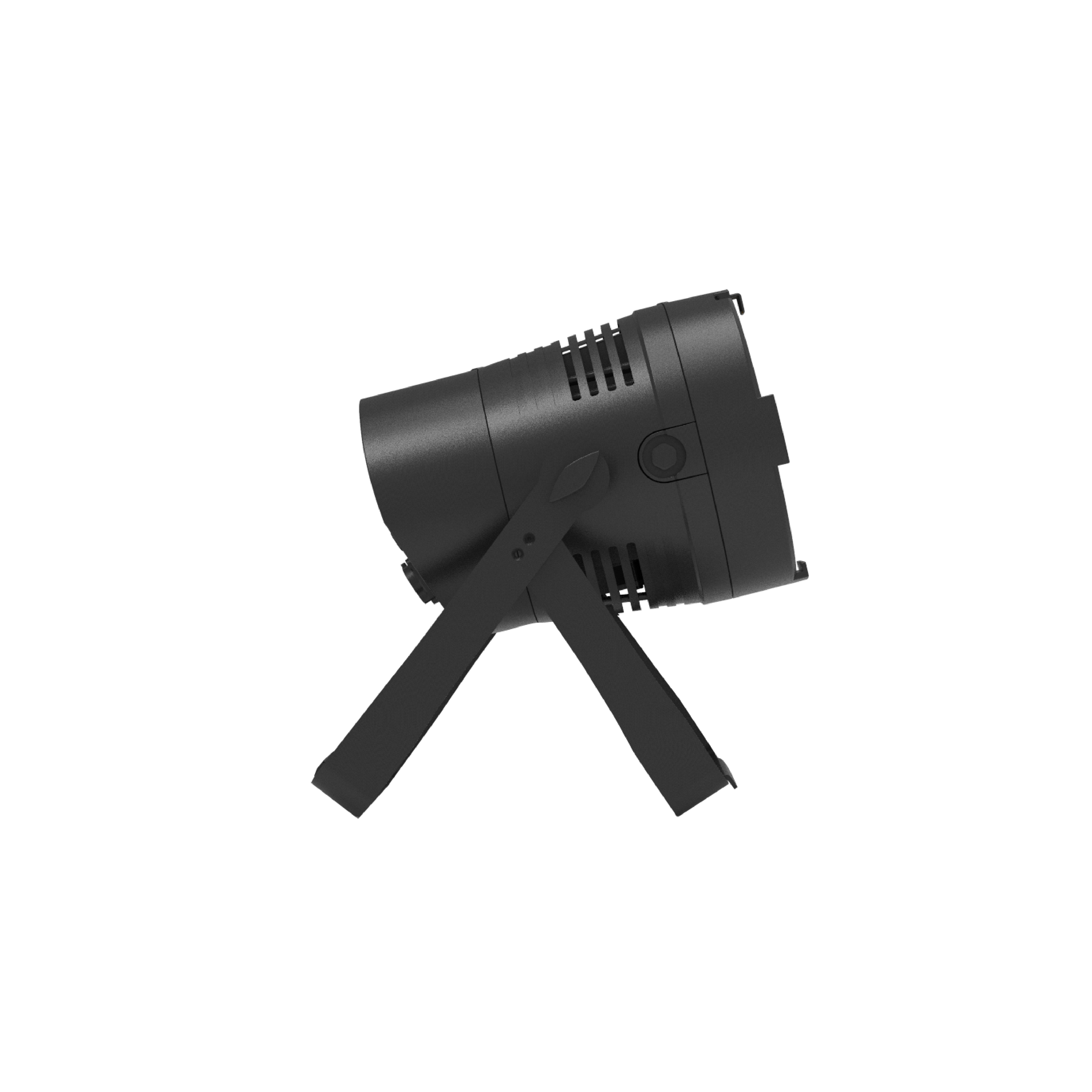

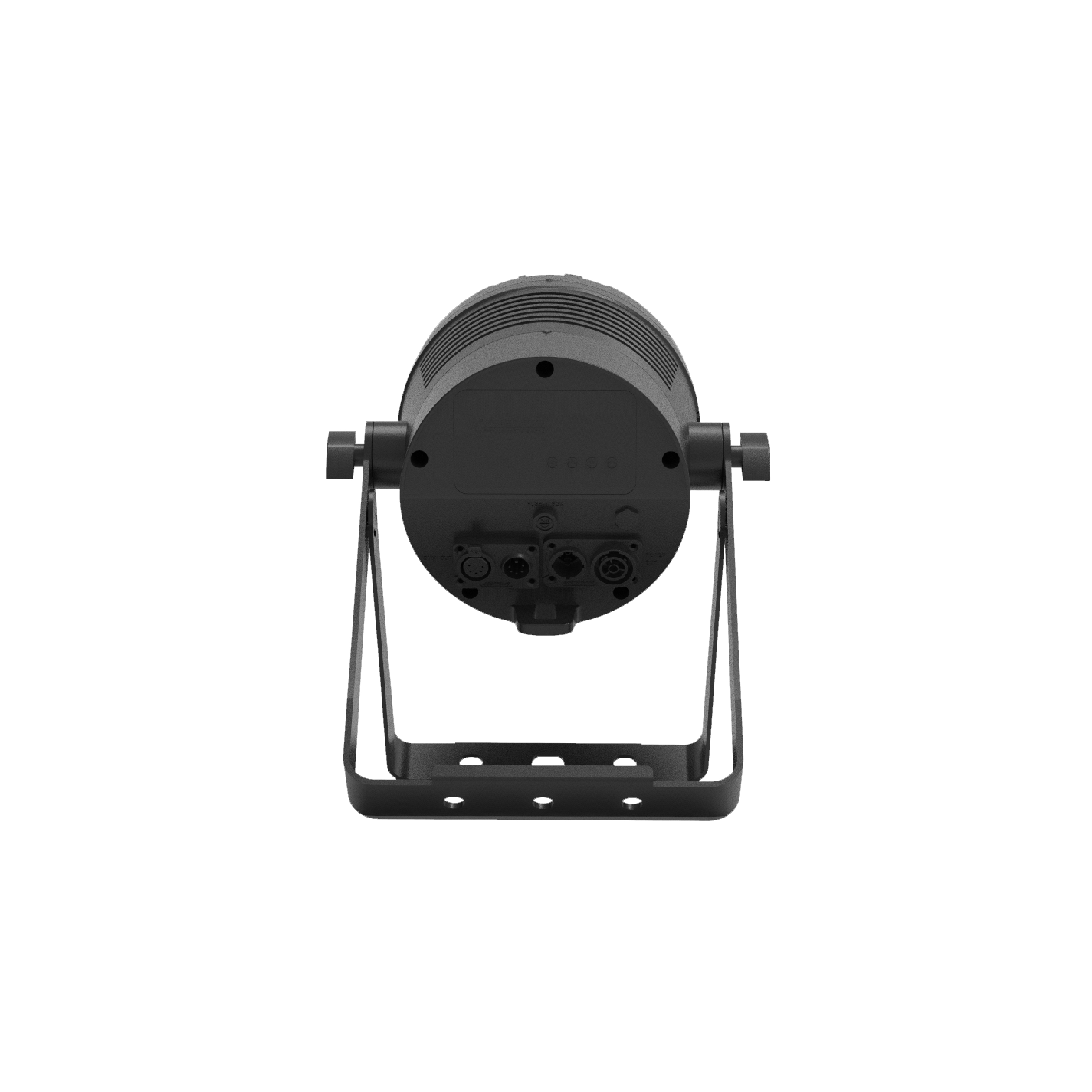

Live-action film

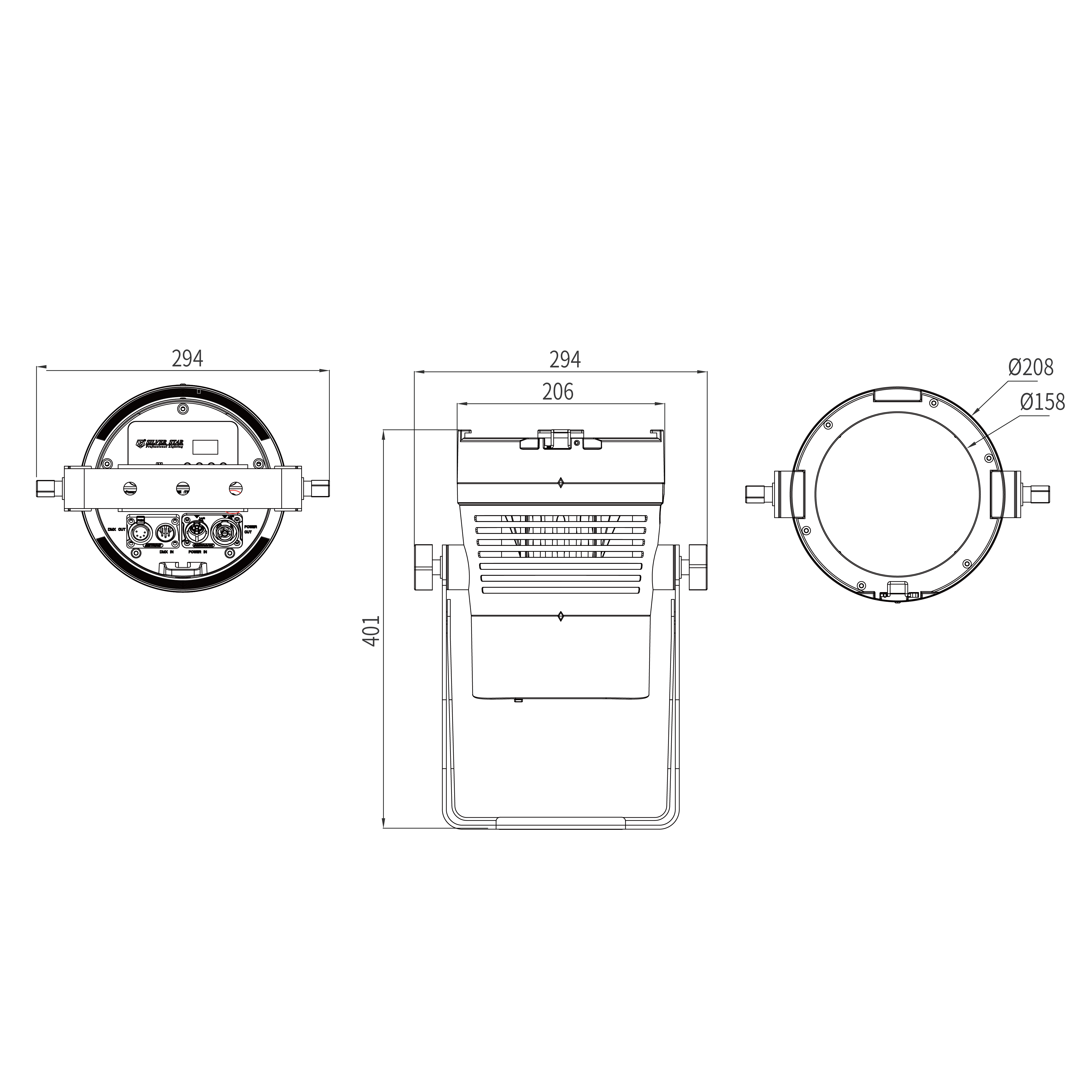

Dimension drawing

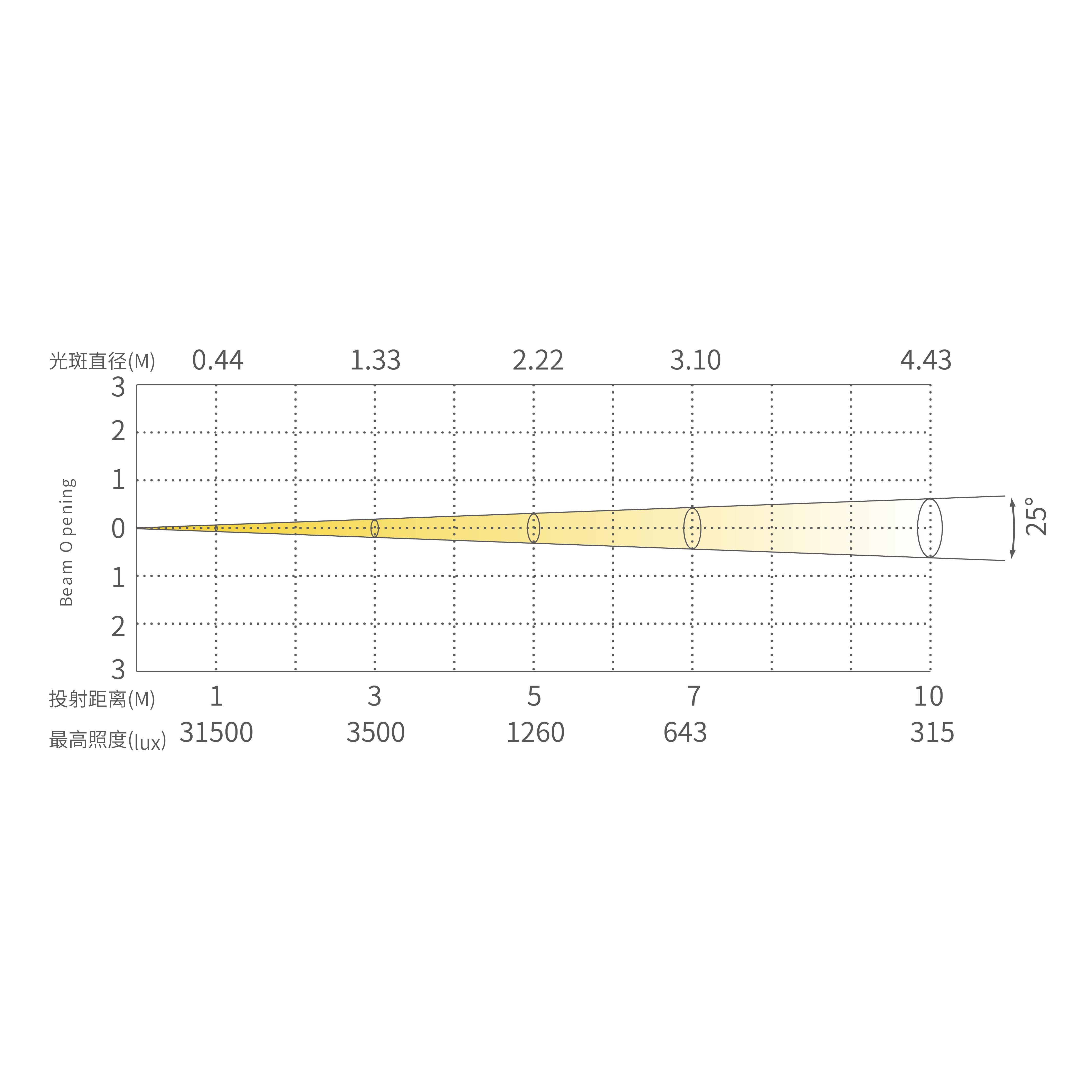

Illuminance diagram
PAR light
T one is a typical parcan which has single-facet-light efect. It is adopting the trailblazing creative RGBL source, possessing the stunning washing effect and the abundant color mixing effect. Besides,T-one is implanted with CCS technology, and the CRI is greater than 85Ra. T-one is perfect for the theatrical and TV, Stucio applications.
/upload/images/product/20250917/17580907126261602.png
Light source
200WRGBL
/upload/images/product/20250917/17580911877588484.png
Luminous flux
33000lm
/upload/images/product/20250917/17580912265476859.png
Angle
16°,25°/35°(可选)
/upload/images/product/20250917/17580912724642522.png
Weight
5.5kg
/upload/images/product/20250917/17580912822612013.png
Max. Power
200W
Optical system
Light source

200W RGBL

Angle

16°,25°/35°(optional

Luminous flux33000lm
Illuminance2200lx @5m, 16


Appearance
Size

401x294x209mm

Casing

Magnalium and Die-cast

Weight5.5kg
Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power200W
Power Connection power in and out
Signal socket

DMX in and out


Control System
DIMMER

0-100% 24Bit

Cooling

Forced Convection

DisplayOn board Control, Custom Mode,0-25Hz Strobe
ProtocolRDM,DMX512,NFC
PersonalityBASICSSPTOURTR16HSICCMY


Work Environment
Ambient Temp

-20°-45°

IP RatedIP65
