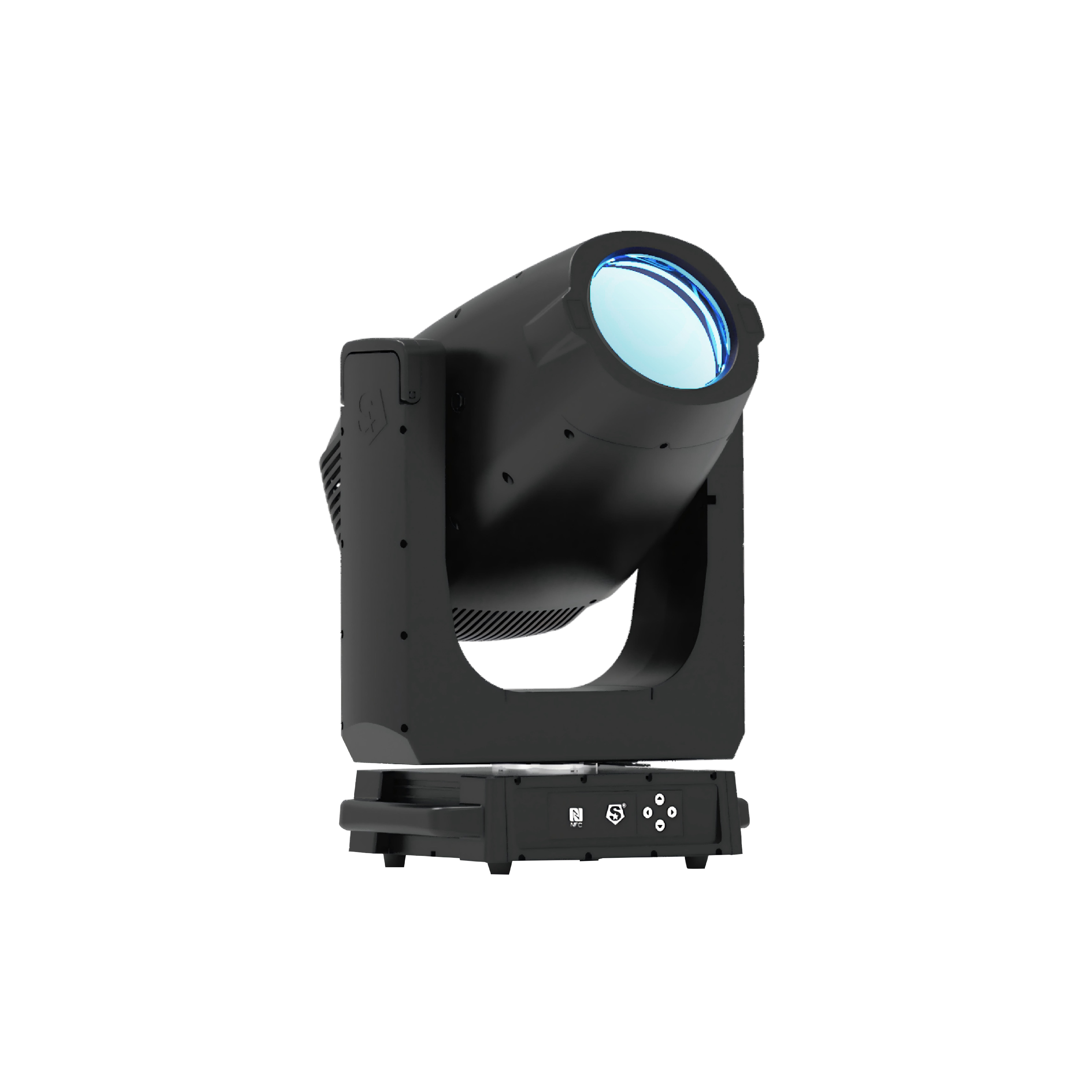

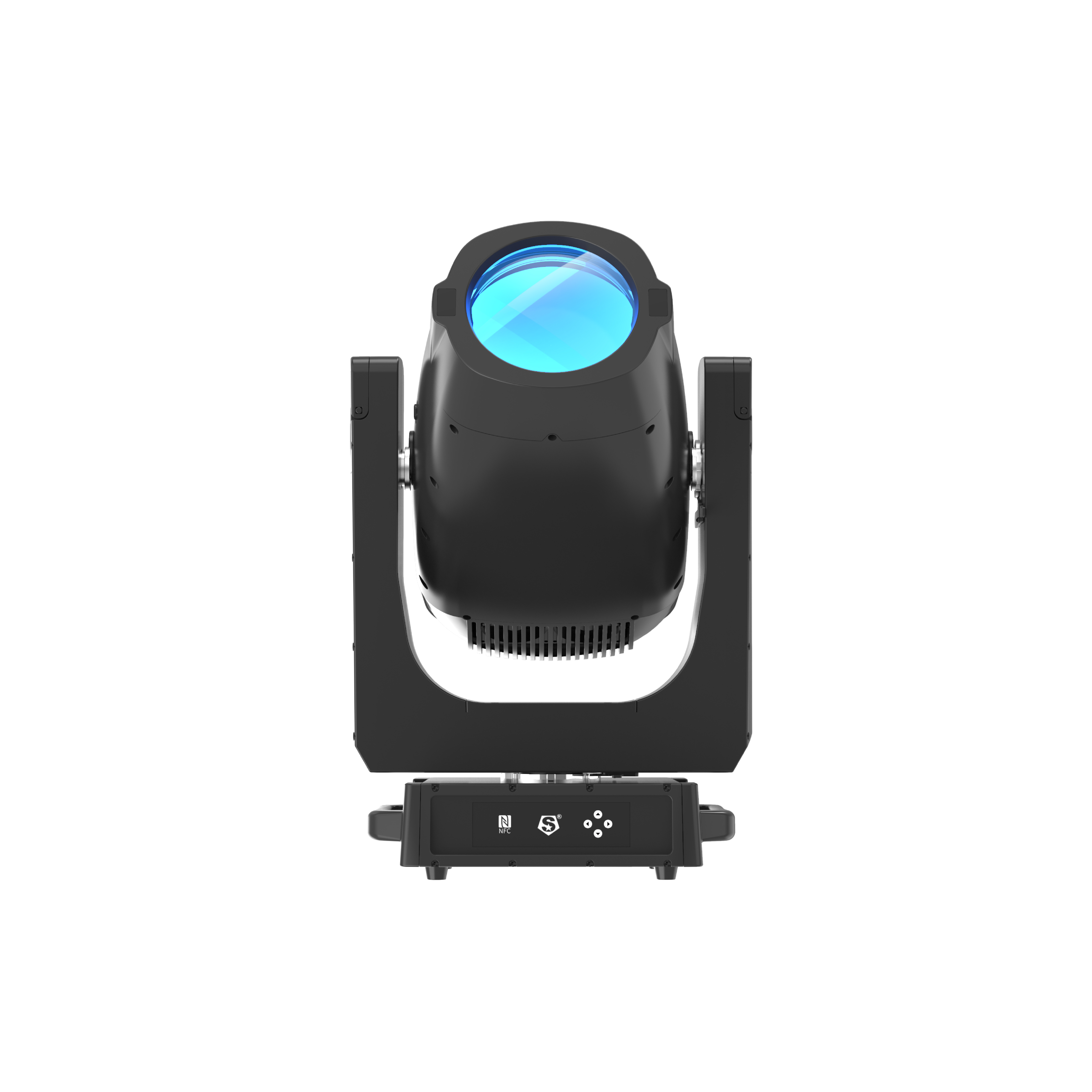

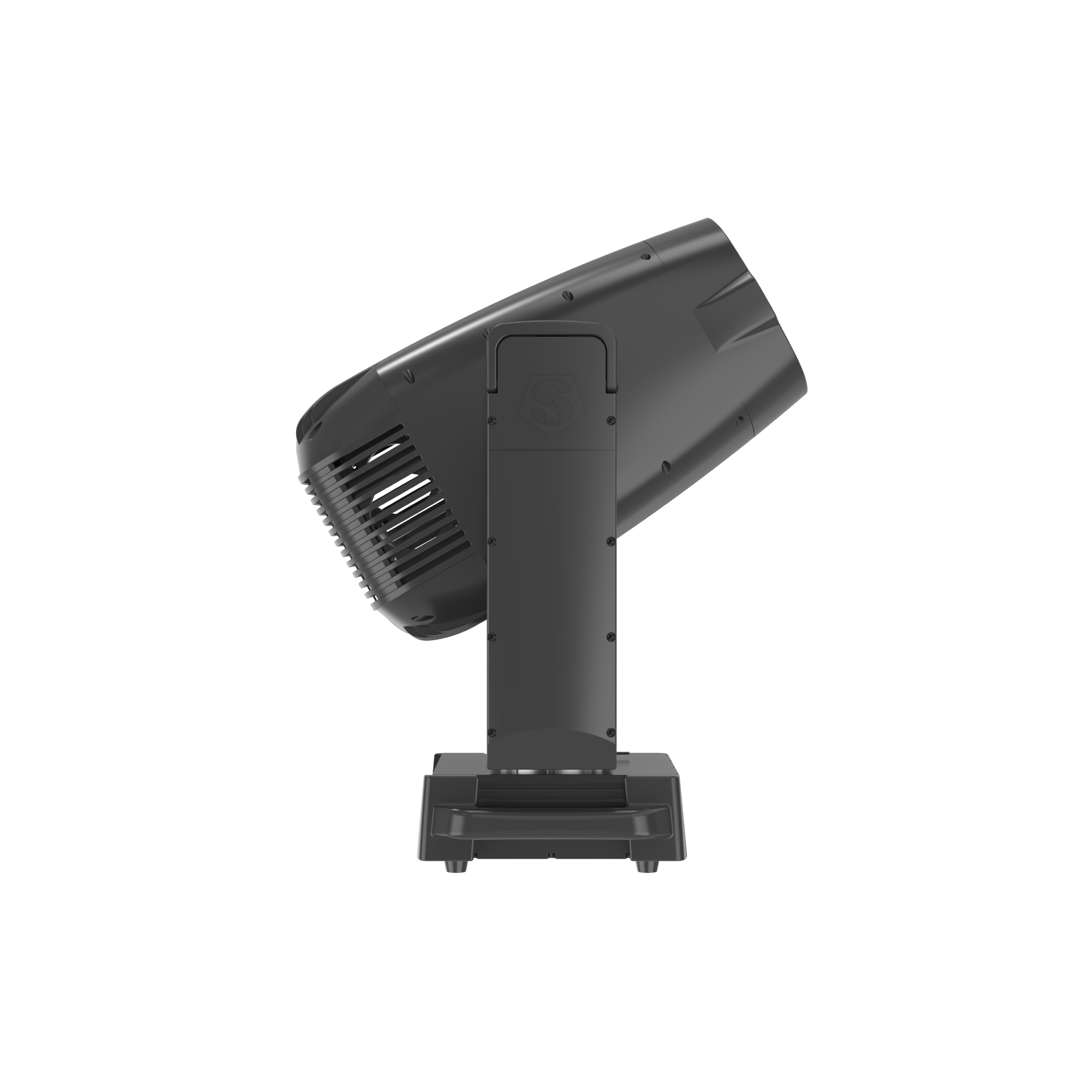

Neptune BX3 Plus is a 500W IP66 laser beam light, featuring an oversized 180mm lens. With an extremely narrow beam angle of 0.6°, illuminance up to 410,000 lux at 20 meters. Efficient optics enable it strong and sharp beam, like a bright lightsaber. ldeal for urbanlandscapes, cultural tourismlighting, concerts, theme parks, and similar applications.
Lens diameter
180mm
Angle

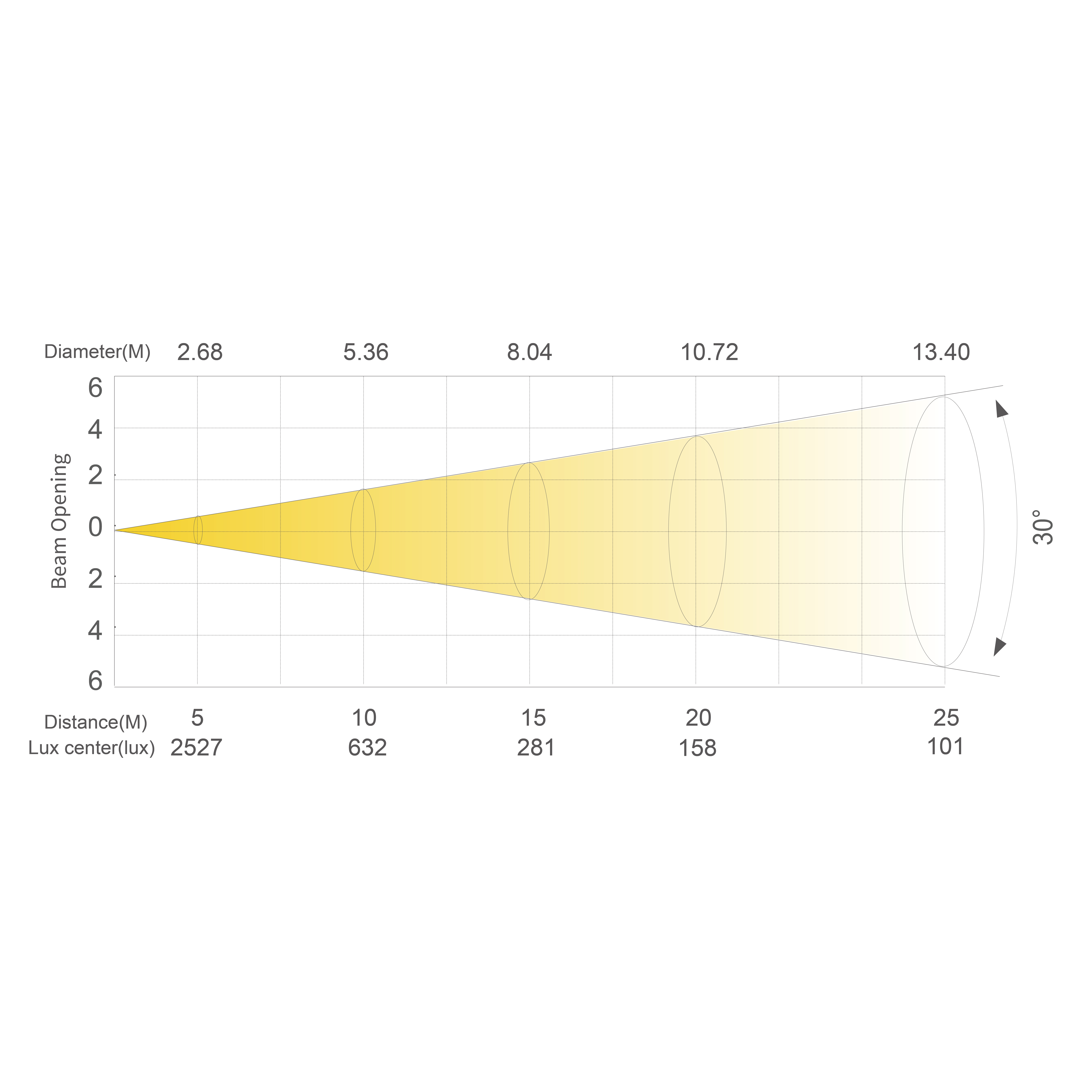

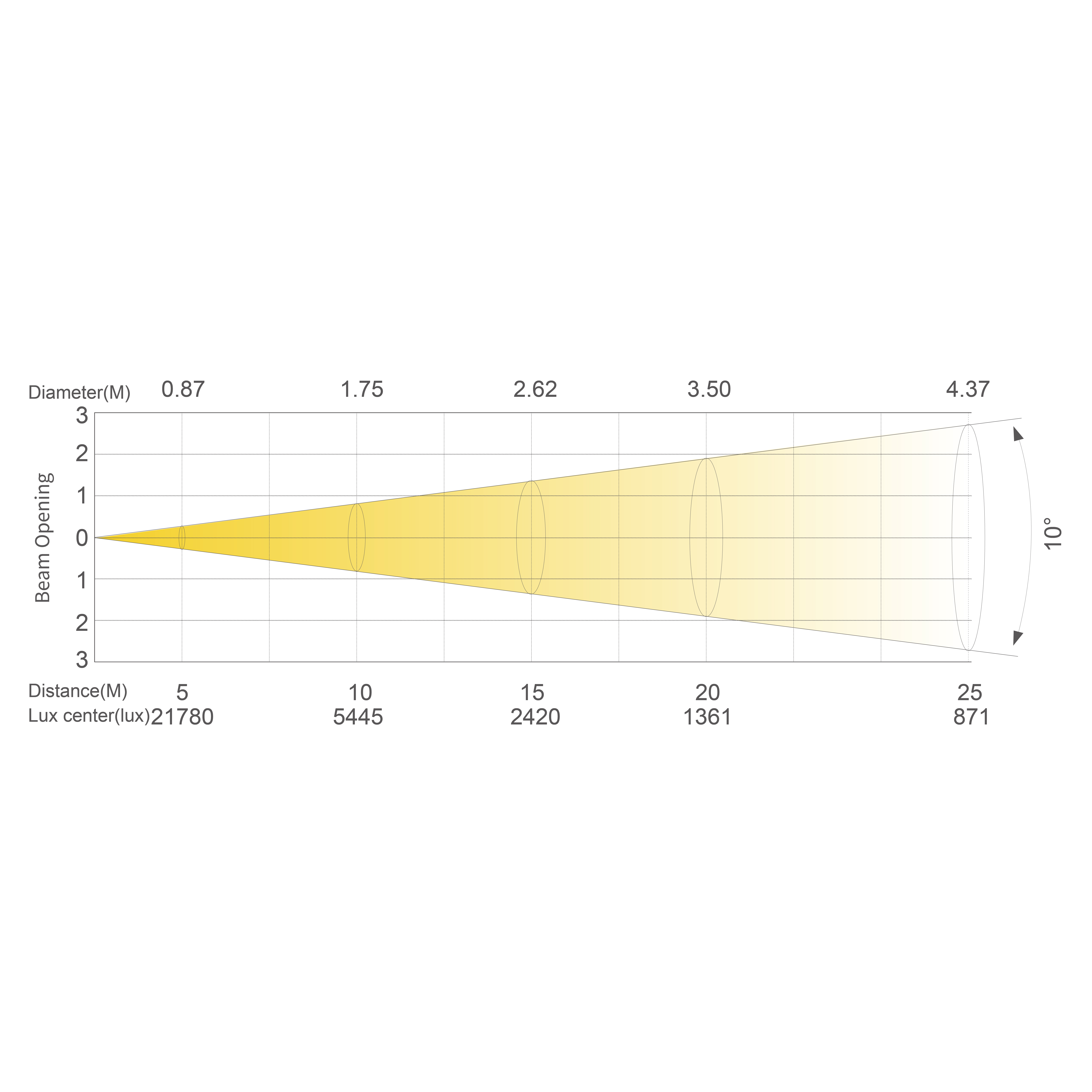

0.6°-30°
Weight
33.6kG
Max.Power
750W
Optical system
Light source
500W LASER
Lens diameter
180mm
Angle

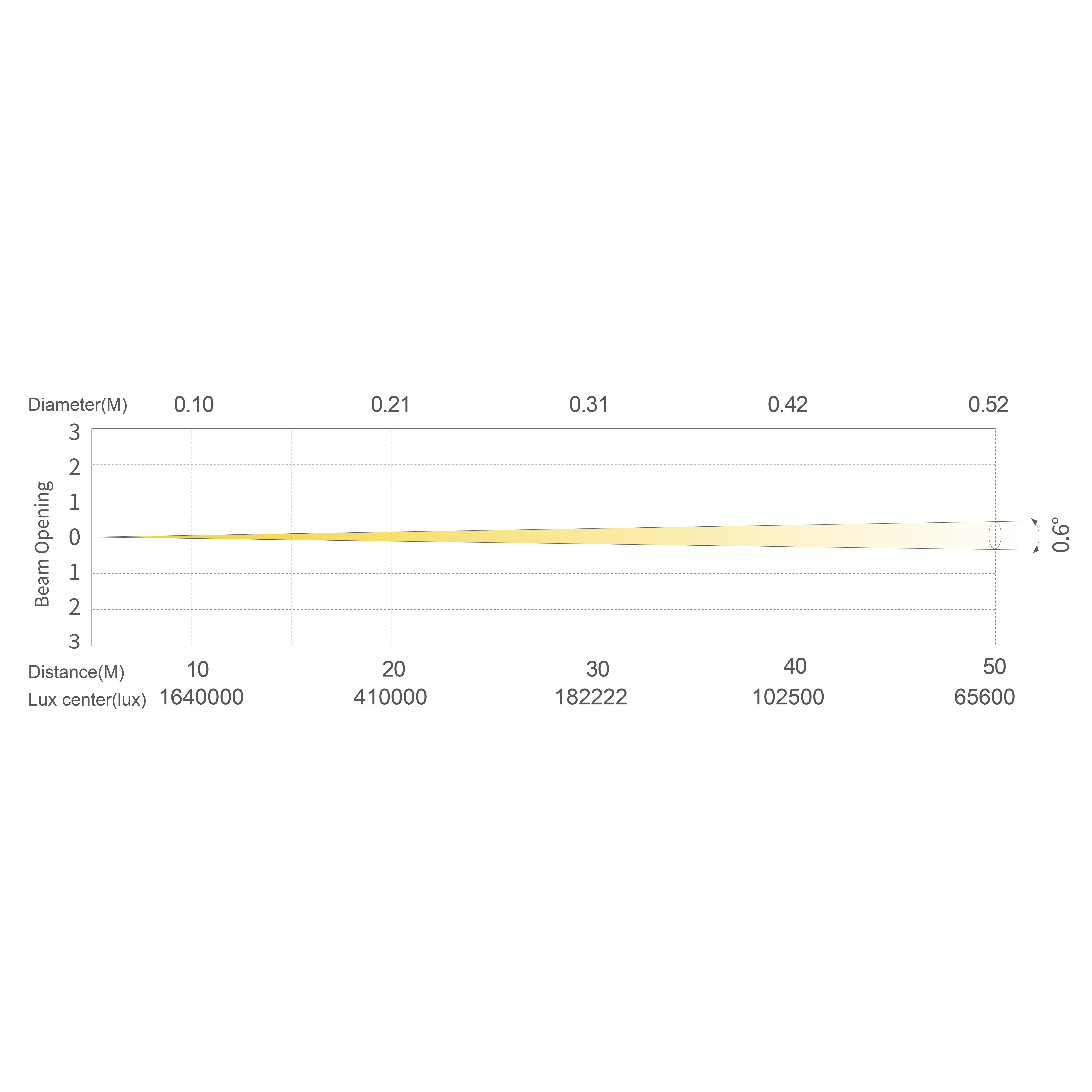

0.6“-30°(20m at 410,000lux)
Appearance
Size

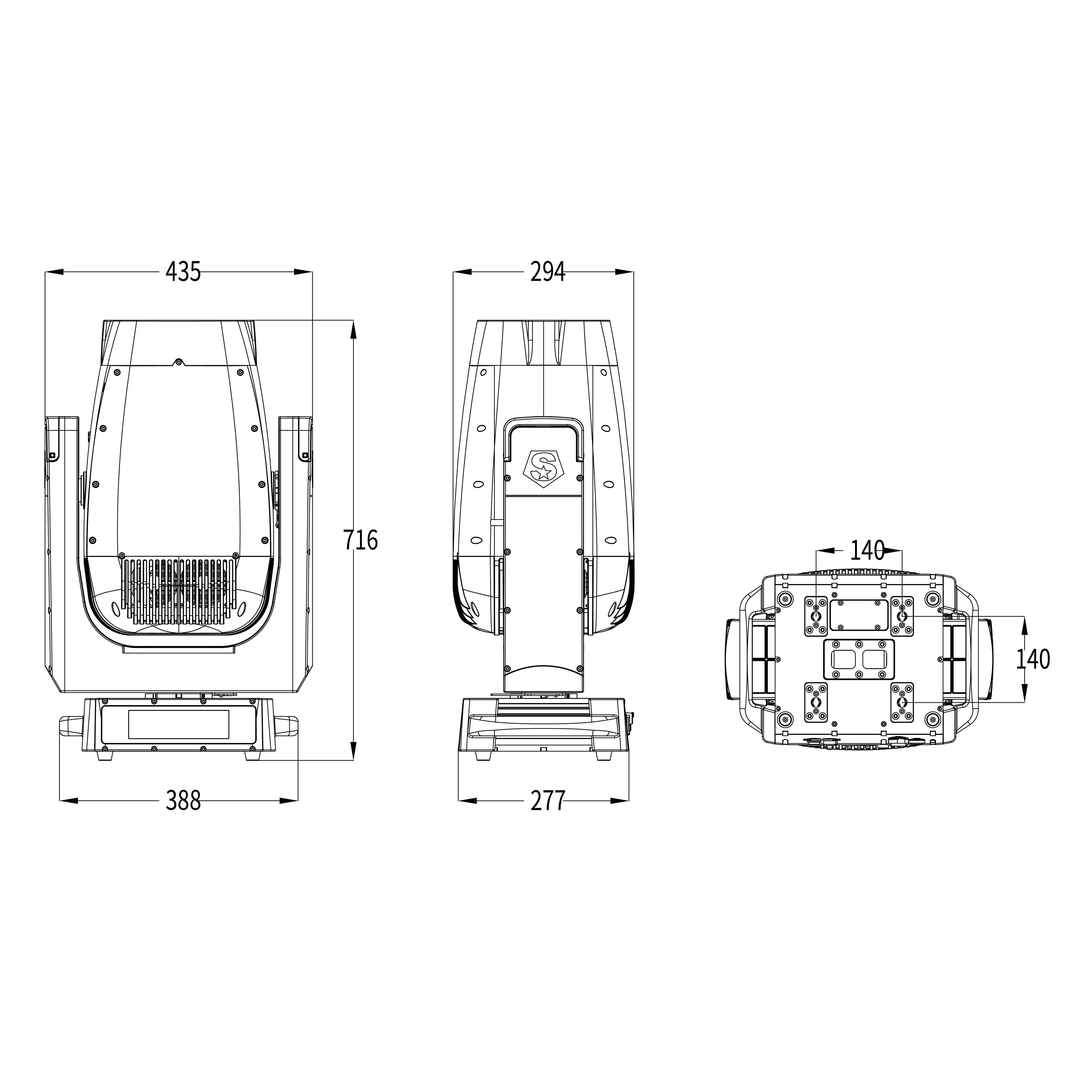

435×294×716mm
casting
Magnalium and Die-cast
Weight
33.6kG
Color
Black
Appearance
Voltage
100-240VAC,50/60HZ
Max.Power
750W
Power Connection
Seetronic power input and output
Signal socket
3pin and 5pin in and out,RJ45 in and out
Electrical Specs
Pan/Tilt rotation
Infinite Pan/Tilt 270°
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Display
On Board Control, Custom Mode. 0-25Hz Strobe
Control
DMX512、RDM、ARTNET、SACN、W-DMX(optional)、
NFC、Bluetoot
Con Personality
BASIC(26CH)、STANDAR(32CH)、Extend(38CH)
Effect synthetic system
Static Gobo
19 gobos+white
Colors
One color wheel(19 color+white, rainbow-flow effect)
