Neptune N one-X is an excellent lP66 moving profle with efficient optical system, CMY professional
color mixing system,17 times optical zoom, optical Angle 3°-52°.X/Y is faster and more accurate. Gobo
switching function is fast and sensitive. instantly switch a rich and colorful gobo efect, bringing vividly
perfomance to the audience. Suitable for both indoor and outdoor .it is a perfect product for theater
concert,theme park,amusement venues. etc.
illuminant
450W LED light source module
Luminous flux
13100lm

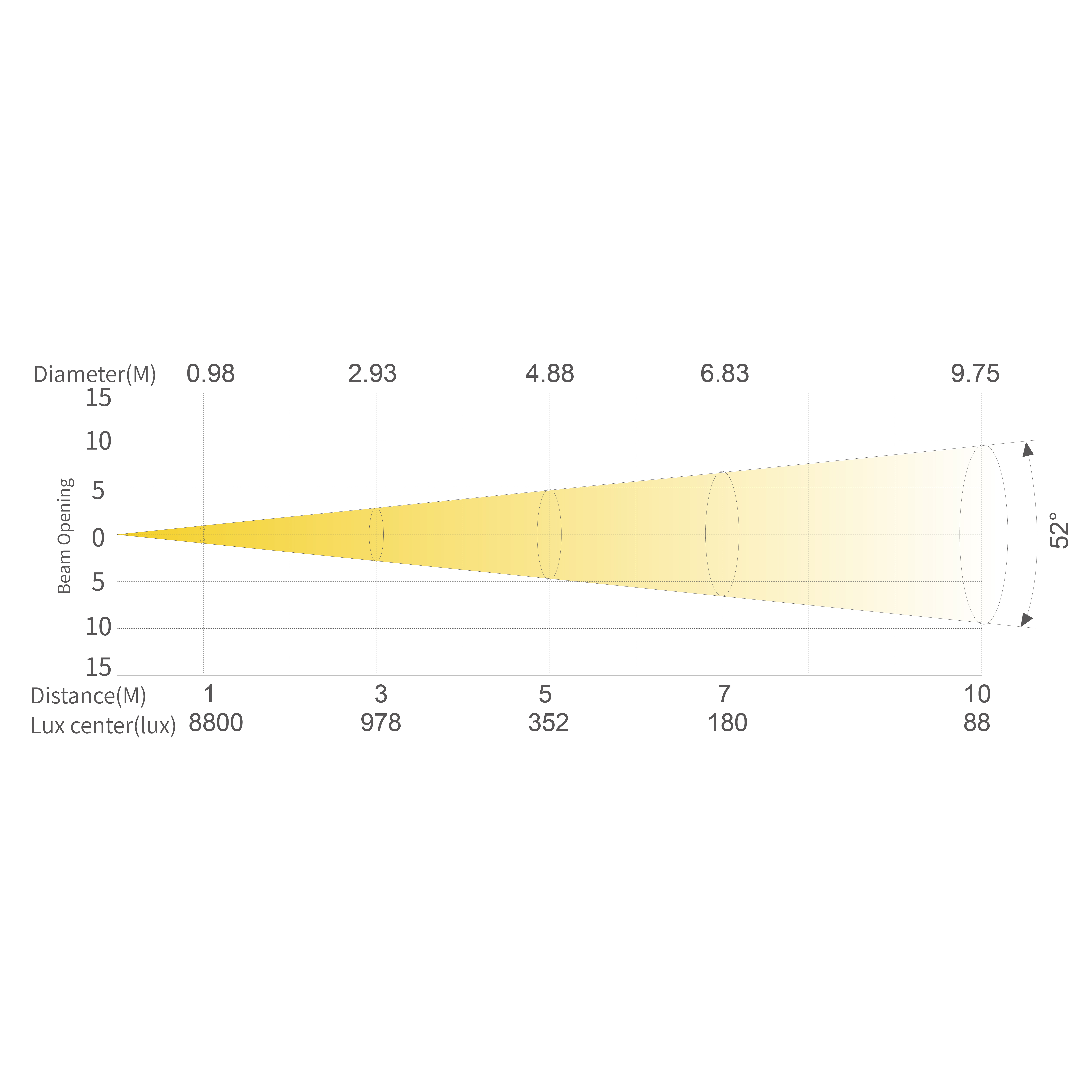

Angle
3°-52°
CRI
RA:70
Weight
25kg
Max.Power
550W
Optical system
illuminant
450W LED light source module
Angle
3°-52°
Luminous flux
13100lm
illuminance

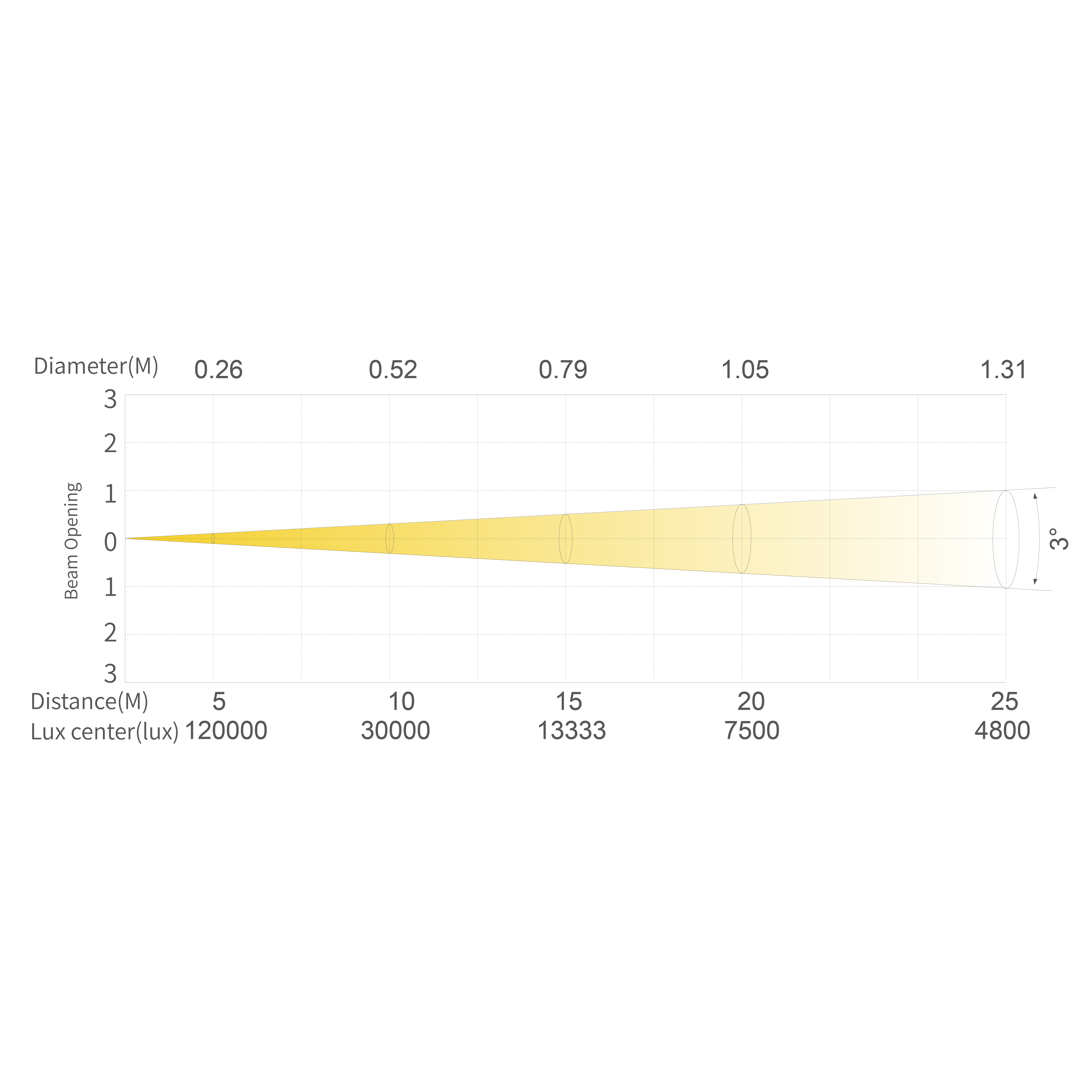

5m@120,000lux(3°)
CRI
RA:70
Appearance
Size

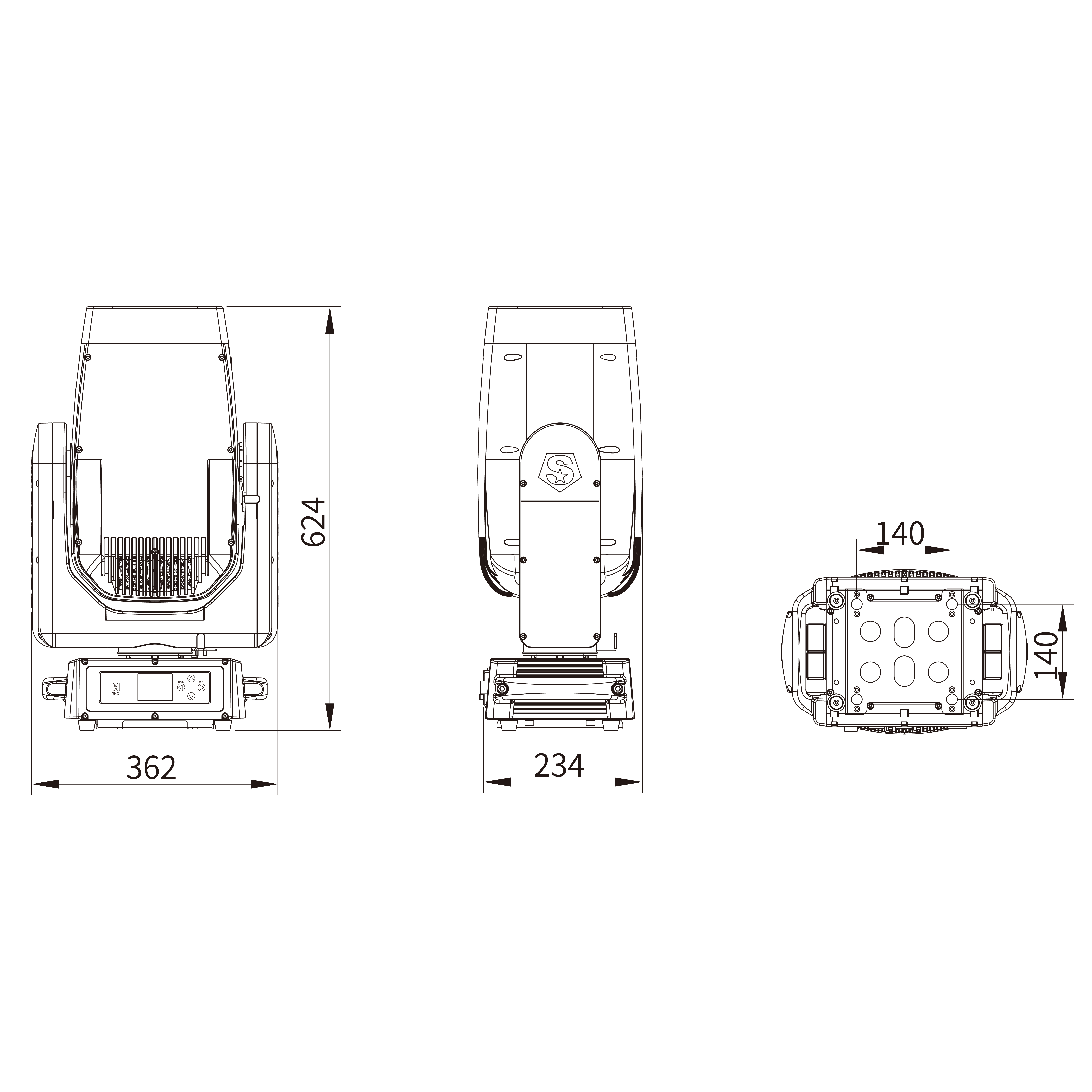

362×234×624mm
Casing
Die casting magnesium aluminum
Weight
25kg
Color
black
Electrical Specs
Volage
100-240VAC,50/60HZ
Max.Power
550W
Pawer Connection
Power input and output
Signal socket
3pin and 5pin in and out
Control System
ParTilt rotation
Infinite PanTilt 270°(8-16bit)
dimming
Opera dimming effect (0-100% 24Bit dimming)
Coaling system
DMXIRDWINFCN-DMX (optional)
Coaling system
Air cooling
Functional effect
Display board control static, custom mode, 0-25Hz stroboscopic
Channel mode
Basic（34CH）/Standard（41CH）/Extend（56CH）
Effect synthetic system
CMYK
CMY+CTO
Colors
6+1 color piece
Rotating pattem
7 rotating pattem pieces + white light, pattern flow effect.
positive and negative rotation
Animation wheel
Bi-directional rotation,Speed adjustable
Iris
5-100% linearly adjustable with macro
2 Frosts
Light+Heavy
prism1
One 8 facet prism, Bi-directional rotation,Speed adjustable
prism2
One 6 linear prsm
Framing system
4 cutting pieces, smooth cutting, cutting direction and Angle of each
cutting piece can be independently controlled, The single piece
can be completely closed, and the entire cuting module can be
