Live-action film

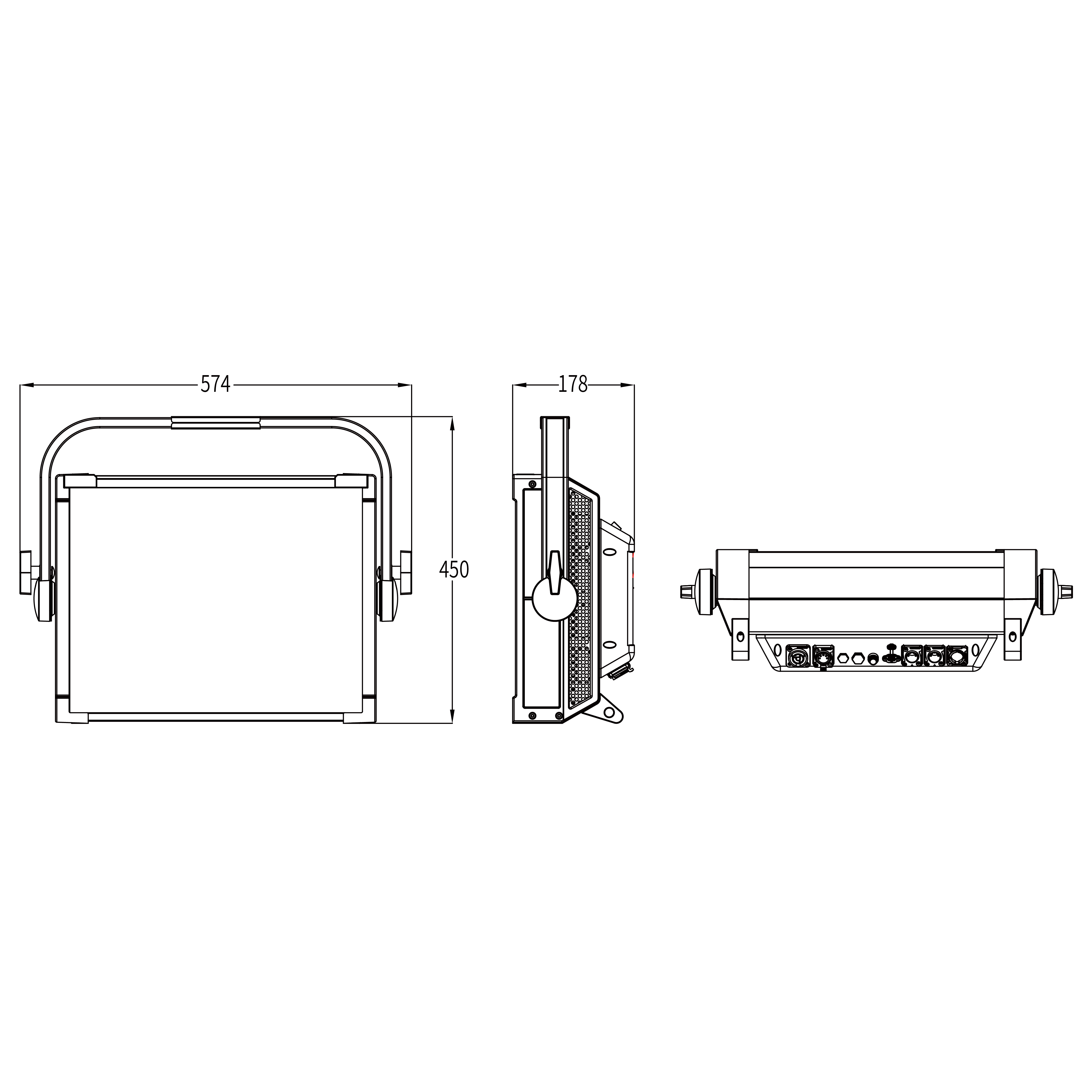

Dimension drawing

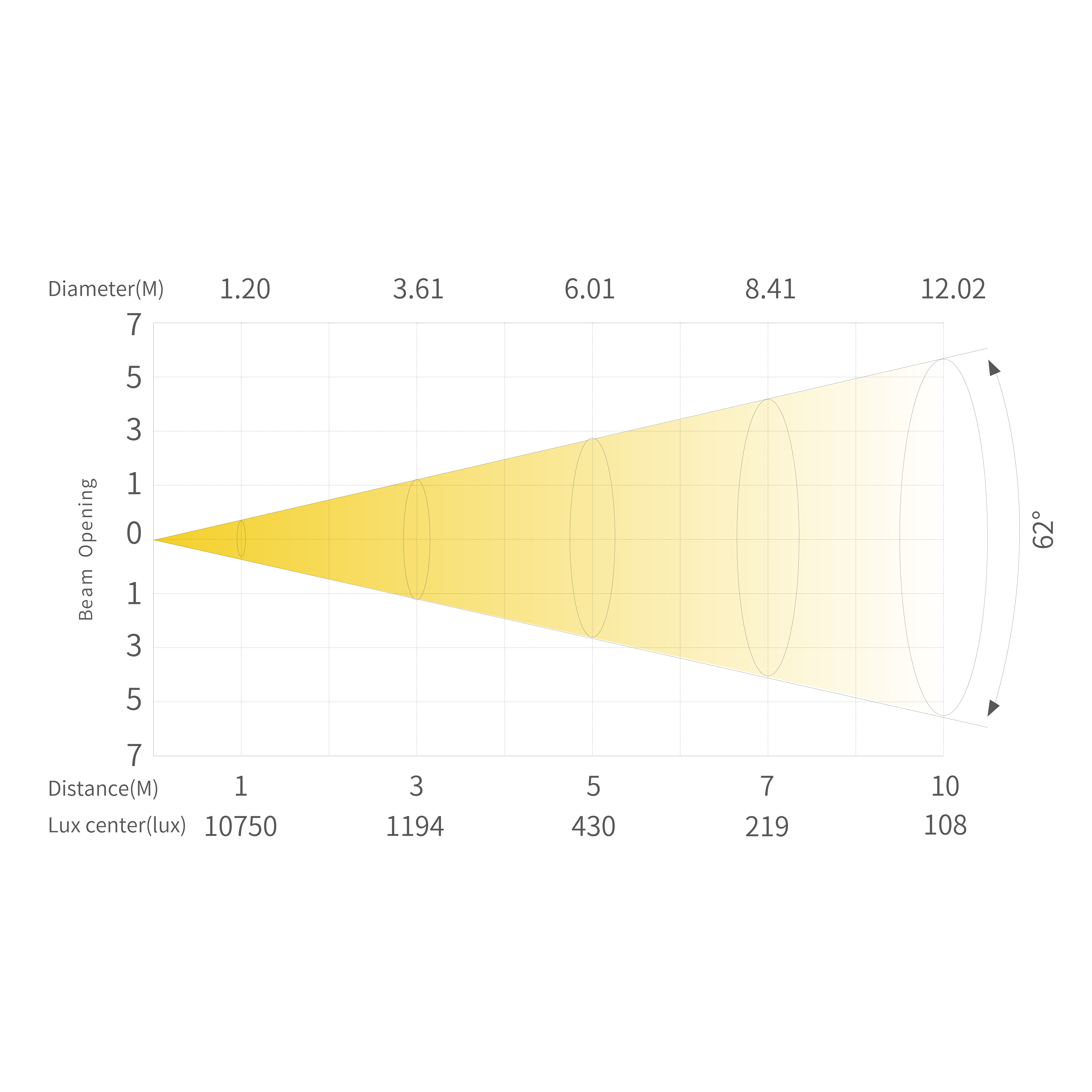

Illuminance diagram
Full spectrum

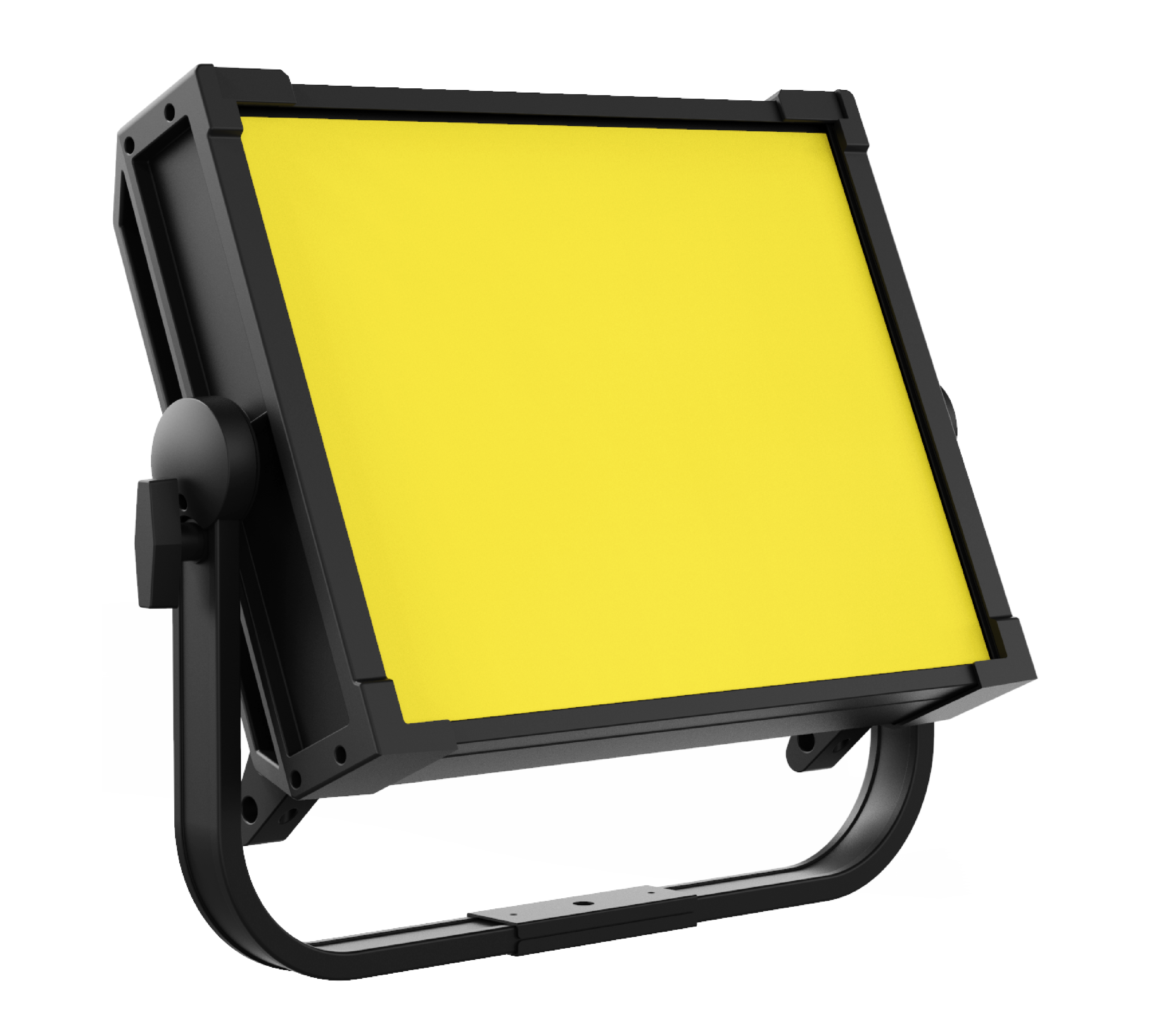

PLANO 300 HEX is a Hex color IP65 soft panel light, born to meet the harsh light quality requirements of the studio scene, with ultra-efficient optic, beautiful color mixing, uniform, even and elegant light. Equipped with uunique “CCS” technology, make sure the color consistency in each batch. Built-in 1800-10000K high CRI CCT, Superb smooth dimmer curve, 0-100% dimming flicker free. With NFC, Bluetooth quick parameter setting function, as well as an easy-operated USB port for upgrade software. The PLANO 300 HEX is ideal choice for outdoor photography, TV studio, theatre, concert, multifunctional hall and rental performance space.
/upload/images/product/20250918/17581839286215359.png
Light source
R*260pcs,G*130pcs B*130pcs,A*130pcs L*130pcs,C*130pcs
/upload/images/product/20250918/17581839366563915.png
Luminous flux
16638lm
/upload/images/product/20250918/17581839405060562.png
Angle
62°
/upload/images/product/20250918/17581839455100678.png
Ra
96
/upload/images/product/20250918/17581839482556911.png
Weight
11.5kg
/upload/images/product/20250918/17581839529986411.png
Max. Power
300W
Optical system
Light source

R*260pcs,G*130pcs,B*130pcs, A*130pcs,L*130pcs,C*130pcs

Luminous flux16638lm
Beam angle

62°

Field angle

100°

CCT

1800K-10000K

Ra/R9/TLCI/CQS96/97/91/94



Appearance
Size

450x178x574mm

Casing

Extruded aluminum

Weight11.5kg
Color

Black


Electrical Specs
Voltage

100-240VAC,50/60Hz

Max. Power

300W

Battery Input

DC24-36V

Max. Power

300W

Battery Connection4PIN XLR

DMX XLR

3pin or 5pin in and out
Power ConnectionPower in and out


Control System
DIMMER

0-100% 16Bit

Cooling

Direct Convection

Display

On board Control

ProtocolDMX512RDMW-DMXoptional)、NFCBluetooth
PersonalityBASIC/SSP/TOUR/TR16/HSIC/CMY
Con PersonalityUNO(1CHS)


Work Environment
Ambient Temp

-20°-45°

IP RatedIP65
CertificationCEMET
